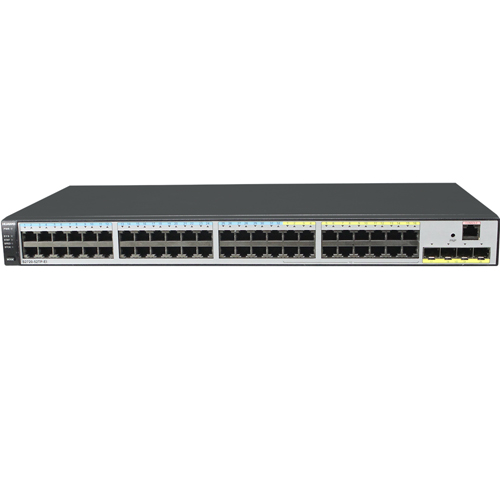

32 * Ethernet 10/100 Base-T ports, 16 * Ethernet 10/100/1000 Base-T ports, 4 * Gig SFP ports, 336 Gbit/s, 34.8 Mpps, VLAN, Static routing,
RIP, RIPng, and OSPF
| Product models | S2720-12TP-EI S2720-12TP-PWR-EI | S2720-28TP-PWR-EI-L S2720-28TP-EI S2720-28TP-PWR-EI | S2720-52TP-EI S2720-52TP-PWR-EI |
| Switching Capacity | 68 Gbit/s | 68 Gbit/s | 336 Gbit/s |
| Forwarding Performance | 12.6 Mpps | 20.4 Mpps | 34.8 Mpps |
| Fixed Ports | Downlink: 4 x 10/100 Base-TX Ethernet ports; 4 x GE ports Uplink: 4 x GE ports | Downlink: 16 x 10/100 Base-TX Ethernet ports; 8 x GE ports Uplink: 4 x GE ports | Downlink: 32 x 10/100 Base-TX Ethernet ports; 16 x GE ports Uplink: 4 x GE ports |
| MAC Address Table | 16K MAC address entries Configurable aging time of MAC addresses Blackhole MAC address entries Limit on the number of MAC addresses learned on a port | ||
| VLAN Features | 4K VLANs VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces Port-based QinQ | ||
| IP Routing | Static routing RIP, RIPng, and OSPF | ||
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) For detailed interoperability certifications and test reports, click HERE. | ||
