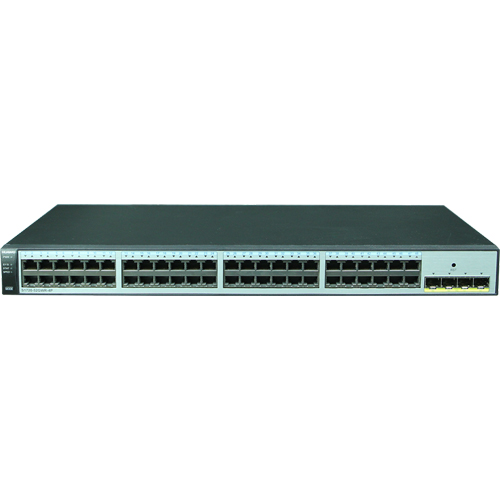

Web-Managed,48 Ethernet 10/100/1000 ports,4 Gig SFP ports,78Mpps,336Gbps, VLAN and Static Routing
Product model | S1720-10GW-2P S1720-10GW-PWR-2P | S1720-28GWR-4P S1720-28GWR-PWR-4P S1720-28GWR-PWR-4TP S1720-28GWR-4X S1720-28GWR-PWR-4X | S1720-52GWR-4P S1720-52GWR-PWR-4P S1720-52GWR-4X S1720-52GWR-PWR-4X | S1720X-16XWR | S1720X-32XWR |
Device Management | Web system network management DHCP client One-key restoration Note:You can upgrade the web-managed S1720 model to the web/SNMP-managed model by purchasing a license | ||||
Switching Capacity | 68 Gbps | S1720-28GWR-P/TP series: 68 Gbps S1720-28GWR-X series: 168 Gbps | 336 Gbps | 680 Gbps | 680 Gbps |
Forwarding Performance | 15 Mpps | S1720-28GWR-P/TP series: 42 Mpps S1720-28GWR-X series: 96 Mpps | S1720-52GWR-P series: 78 Mpps S1720-52GWR-X series: 132 Mpps | 240 Mpps | 252 Mpps |
Fixed Ports | Downlink: 8 x 10/100/1000Base-T electrical ports Uplink: 2 x 1000Base-X optical ports | S1720-28GWR-P series Downlink: 24 x 10/100/1000Base-T electrical ports Uplink: 4 x 1000Base-X optical ports S1720-28GWR-TP series Downlink: 24 x 10/100/1000Base-T electrical ports Uplink: 4 x 1000Base-X optical ports, 2 of which are 10/100/1000Base-T combo ports S1720-28GWR-X series Downlink: 24 x 10/100/1000Base-T electrical ports Uplink: 4 x 10GBase-X optical ports | S1720-52GWR-P series Downlink: 48 x 10/100/1000Base-T electrical ports Uplink: 4 x 1000Base-X optical ports S1720-52GWR-X series Downlink: 48 x 10/100/1000Base-T electrical ports Uplink: 4 x 10GBase-X optical ports | 16 x 10GBase-X optical ports Note: These ports can be used for both upstream and downstream transmission. | 32 x 10GBase-X optical ports Note: These ports can be used for both upstream and downstream transmission. |
VLAN Features | 256 VLANs (S1720 Series : 4K) Access port Trunk port Hybrid port Management VLAN Voice VLAN | ||||
IP Routing | IPv4 and IPv6 static routing | ||||
Device Maintenance | System log Ping Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
