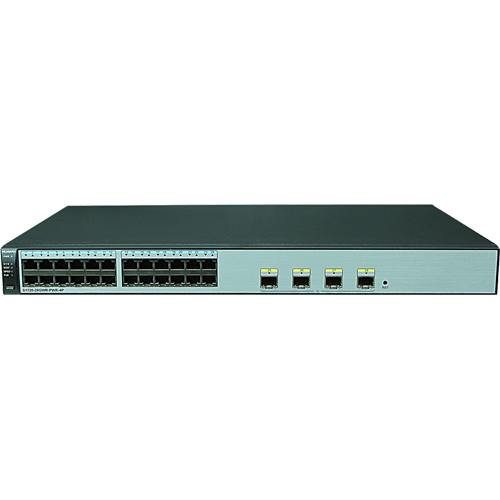

S1720-28GWR-PWR-4P

Part #: 98010592

Module #: S1720-28GWR-PWR-4P

Price: US$ 447.69

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Web-Managed,24 Ethernet 10/100/1000 ports,4 Gig SFP ports,PoE+,42 Mpps,68Gbps, VLAN and Static Routing

Product modelS1720-10GW-2P
S1720-10GW-PWR-2P
S1720-28GWR-4P
S1720-28GWR-PWR-4P
S1720-28GWR-PWR-4TP
S1720-28GWR-4X
S1720-28GWR-PWR-4X
S1720-52GWR-4P
S1720-52GWR-PWR-4P
S1720-52GWR-4X
S1720-52GWR-PWR-4X
S1720X-16XWRS1720X-32XWR
Device
Management
Web system network management
DHCP client
One-key restoration
Note:You can upgrade the web-managed S1720 model to the web/SNMP-managed model by purchasing a license
Switching Capacity68 GbpsS1720-28GWR-P/TP series: 68 Gbps
S1720-28GWR-X series: 168 Gbps
336 Gbps680 Gbps680 Gbps
Forwarding Performance15 MppsS1720-28GWR-P/TP series: 42 Mpps
S1720-28GWR-X series: 96 Mpps
S1720-52GWR-P series: 78 Mpps
S1720-52GWR-X series: 132 Mpps
240 Mpps252 Mpps
Fixed PortsDownlink: 8 x 10/100/1000Base-T electrical ports
Uplink: 2 x 1000Base-X optical ports
S1720-28GWR-P series
Downlink: 24 x 10/100/1000Base-T electrical ports
Uplink: 4 x 1000Base-X optical ports
S1720-28GWR-TP series
Downlink: 24 x 10/100/1000Base-T electrical ports
Uplink: 4 x 1000Base-X optical ports, 2 of which are 10/100/1000Base-T combo ports
S1720-28GWR-X series
Downlink: 24 x 10/100/1000Base-T electrical ports
Uplink: 4 x 10GBase-X optical ports
S1720-52GWR-P series
Downlink: 48 x 10/100/1000Base-T electrical ports
Uplink: 4 x 1000Base-X optical ports
S1720-52GWR-X series
Downlink: 48 x 10/100/1000Base-T electrical ports
Uplink: 4 x 10GBase-X optical ports
16 x 10GBase-X optical ports
Note: These ports can be used for both upstream and downstream transmission.
32 x 10GBase-X optical ports
Note: These ports can be used for both upstream and downstream transmission.
VLAN Features256 VLANs (S1720 Series : 4K)
Access port
Trunk port
Hybrid port
Management VLAN
Voice VLAN
IP RoutingIPv4 and IPv6 static routing
Device MaintenanceSystem log
Ping
Virtual Cable Test (VCT)
Link Layer Discovery Protocol (LLDP)
