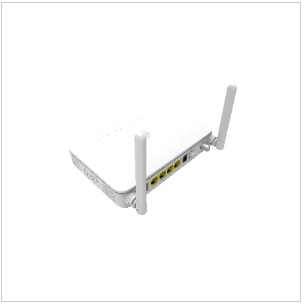

EchoLife EG8143A5
The Huawei EG8143A5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 1*GE+3*FE+1*POTS+2.4G Wi-Fi+1*CATV that ensure the user experience of Wi-Fi, voice, data CATV and HD video services.
1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV
NNI
1 x GPON
Maximum Power Consumption*
8.2 W
Maximum PoE Output Power
NA
Surge Protection
GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV
Installation Mode
Desktop
Compliance Certification
CE
GPON Port
Connector: SC/APC Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Electrical Port
Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning
POTS Port
Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol)
WLAN
IEEE 802.11 b/g/n (2.4G) 2 x 2 MIMO Antenna gain: 2 dBi WMM Multiple SSIDs WPS Air interface rate: 300 Mbit/s
