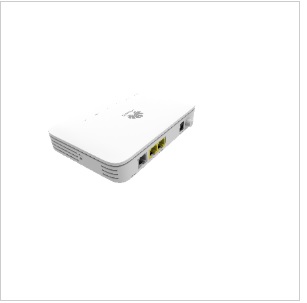

| Parameters | EchoLife EG8120L5 |
| Dimensions (H x W x D) | 32 x 145 x 97 mm (without floor mat) |
| Weight | Approximately 145 g |
| Operating Temperature | 0–40°C |
| Operating Humidity | 5%–95% RH (non-condensing) |
| Power Adapter Input | 100–240 V AC, 50/60 Hz |
| System Power Supply | 11–14 V (typical value 12 V) DC, 1 A |
| UNI | 1 x POTS, 1 x GE, 1 x FE |
| NNI | 1 x GPON |
| Static Power Consumption | 3.8 W |
| Maximum Power Consumption | 5 W |
| Optical Connector | SC/APC |
| Indicators | Power/PON/LOS/LAN2/LAN1/TEL |
| GPON Port | Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM ports and TCONTs GPON: consistent with the SN or password authentication defined in G.984.3 Bidirectional FEC SR-DBA and NSR-DBA Type B (single-homing & dual-homing) |
| Ethernet Ports | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning GE: auto-adaptive 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s FE: auto-adaptive 10 Mbit/s or 100 Mbit/s |
| POTS Port | Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol) |
