Focus on Americas Market

EG8120L

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

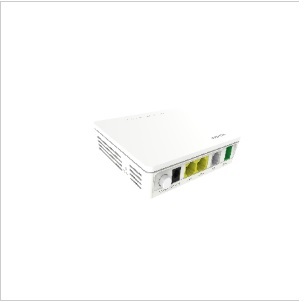

EchoLife EG8120L

The Huawei EchoLife EG8120L is an intelligent routing-type ONT,which provide one GE port, one POTS port and one FE port.The EG8120L features high-performance service forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service supporting capabilities for Network


  • Specifications


ModelEG8120L
Dimensions (H x W x D)30 mm x 115 mm x 94 mm
WeightAbout 155g
Operating Temperature0°C to +40°C
Operating Humidity5% RH to 95% RH (non-condensing)
Power Adapter Input100V to 240V AC, 50/60 Hz
System Power Supply11V to 14V DC, 1A
Static Power Consumption3.8W
Maximum Power Consumption4.9W
Ports1 POTS + 1 GE + 1 FE
IndicatorsPOWER/PON/LOS/LAN/TEL
