Focus on Americas Market

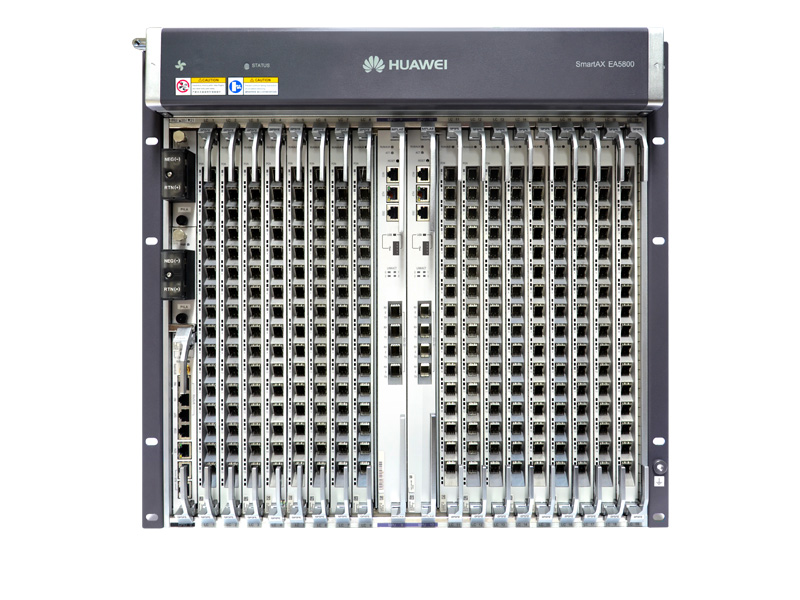

SmartAX MA5800-X15

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

15 Service Slot, Max 240 x GPON/EPON,720 x GE/FE, 120 x 10G GPON/10G EPON, 120 x 10G GE, 480 x E1


Item

MA5800-X17

MA5800-X15

MA5800-X7

MA5800-X2

Dimensions (W x D x H)

493 mm x 287 mm x 486 mm

442 mm x 287 mm x 486 mm

442 mm x 268.7 mm x 263.9 mm

442 mm x 268.7 mm x 88.1 mm

Maximum Number of Ports in a Subrack

  • 272 x GPON/EPON

  • 816 x GE/FE

  • 136 x 10G GPON/10G EPON

  • 136 x 10G GE

  • 544 x E1

  • 240 x GPON/EPON

  • 720 x GE/FE

  • 120 x 10G GPON/10G EPON

  • 120 x 10G GE

  • 480 x E1

  • 112 x GPON/EPON

  • 336 x GE/FE

  • 56 x 10G GPON/10G EPON

  • 56 x 10G GE

  • 224 x E1

  • 32 x GPON/EPON

  • 96 x GE/FE

  • 16 x 10G GPON/10G EPON

  • 16 x 10G GE

  • 64 x E1

Switching Capacity of the System

7 Tbit/s

480 Gbit/s

Maximum Number of MAC Addresses

262,143

Maximum Number of ARP/Routing Entries

64K

Ambient Temperature

-40°C to 65°C

Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent

Working Voltage Range

-38.4V DC to -72V DC

DC power supply:

-38.4V to -72V

AC power supply:

100V to 240V

Layer 2 Features

VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82

Layer 3 Features

Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF

MPLS & PWE3

MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching

IPv6

IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay

Multicast

IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast

QoS

Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL

System Reliability

GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
