Full-service distributed Optical Line Terminal (OLT) - building green, ultra-broadband, and intelligent aggregation access networks.

The EA5800 series multi-service access devices feature distributed architecture and provide users with a unified transmission platform for broadband, wireless, video, and surveillance services. The EA5800 provides GPON, XG-PON, XGS-PON, GE, and 10 GE access, and supports multiple network construction modes, including POL, FTTH, FTTB, and FTTC. One optical network covers all services, simplifying the network architecture and reducing OPEX. The EA5800 is available in small, medium, and large specifications, making it suitable for every scenario.


ParametersEA5800-X17EA5800-X15EA5800-X7EA5800-X2
Supported CabinetsN63E-22N66E-22N63E-22, N66E-22N63E-22
Board ConfigurationControl board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7, 10 to 17
Universal interface board slot: 0
Power board slots: 18, 19

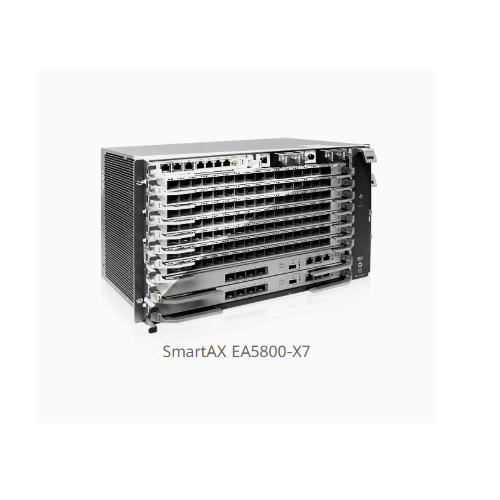

Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7
Universal interface board slot: 0
Power board slots: 10, 11
Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0
Dimensions
(W x D x H)
11U high and 21 inches wide
Excluding mounting brackets: 493 mm x 287 mm x 486 mm
Including mounting brackets: 535 mm x 287 mm x 486 mm
11U high and 19 inches wide
Excluding mounting brackets: 442 mm x 287 mm x 486 mm
Including mounting brackets: 482.6 mm x 287 mm x 486 mm
6U high and 19 inches wide
Excluding mounting brackets: 442 mm x 268.7 mm x 263.9 mm
Including IEC mounting brackets: 482.6 mm x 268.7 mm x 263.9 mm
Including ETSI mounting brackets: 535 mm x 268.7 mm x 263.9 mm
2U high and 19 inches wide
Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm
Including IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm
Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm
Maximum Weight (including mounting brackets)45 kg35 kg26 kg9.4 kg
Maximum Input Current60A60A40ADC power supply: 20A
AC power supply: 8A
Power Supply ModesDC power support (dual for backup)DC power support (dual for backup)DC power support (dual for backup)DC power support (dual for backup)
AC power supply + battery for backup
Working Voltage Range-38.4V to -72V DC-38.4V to -72V DC-38.4V to -72V DCDC power supply: -38.4V to -72V
AC power supply: 100V to 240V
Rated voltage-48V/-60V-48V/-60V-48V/-60VDC power supply: -48V/-60V
AC power supply: 110V/220V
Ambient Temperature -40°C to 65°C*. The EA5800 can start up at temperatures as low as -25°C.
Note: The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Ambient Humidity5% RH to 95% RH
Atmospheric Pressure70 kPa to 106 kPa70 kPa to 106 kPa70 kPa to 106 kPa70 kPa to 106 kPa
Altitude4,000m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the EA5800 varies with altitude.
Switching Capacity of the Control Board (load sharing mode)3.6 Tbit/s3.6 Tbit/s3.6 Tbit/s480 Gbit/s
Maximum Bandwidth per Service Slot (load sharing mode)100 Gbit/s100 Gbit/s100 Gbit/s80 Gbit/s
System Layer 2 Packet Forwarding Rate (load sharing mode)5,298 Mpps5,298 Mpps5,298 Mpps714 Mpps
Maximum Number of Concurrent 4K Video Users16,00016,0008,0002,000
Maximum Number of MAC Addresses262,143262,143262,143262,143
Maximum Number of ARP/Routing Entries131,072131,072131,072131,072
Switching/Forwarding DelayShort forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets at a delay shorter than 20 μs.
Bit Error Rate (BER) in full loadA BER smaller than 10e-7 for a port that transmits data in full load.
System Reliability SpecificationsSystem availability for typical configurations: > 99.999%
Mean-Time-Between-Failures (MTBF): About 45 years.
Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact the relevant Huawei engineers.
GPON Ports/ XG(S)-PON Ports27224011232
GE/FE Ports81672033696
10 GE Ports40836016816
