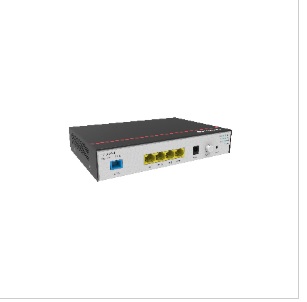

| Parameters | OptiXstar P612E |
| Dimensions (WxDxH) | 190mm x 130mm x 35mm（Without floor mat） |
| Weight | About 800 g |
| Operating temperature | -5°C to +45°C |
| Operating humidity | 5%RH to 95%RH (non-condensing) |
| Power adapter input | 100V to 240V AC, 50/60Hz |
| System power supply | 56V DC, 1.42A |
| NNI | GPON |
| UNI | 4*GE（PoE/PoE+） |
| Static powerconsumption | 7W |
| Maximum power consumption | 9W (POE port without PD)/77W (POE port with PD having the maximum power consumption) |
| Maximum PoE output power | Gross power 60W (up to 30W for one GE port) |
| Surge protection specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power : common mode 6 kV; differential mode 6 kV |
| Installation mode | Support indoor desktop installation, wall mounting, or network box installation. |
| PON | • Port type: SC/UPC • Complying with ITU-T G.984.2, Class B+ • Receiver sensitivity: -27dBm; • Overload optical power: -8dBm; • Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s • Type B single-homing • Type B dual-homing (supported in Layer 2 forwarding) |
| GE | • PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at • Port type:RJ-45 • Auto ports speed(10/100/1000 Mbit/s) • Auto-MDI/MDIX • Configuration of the number of MAC addresses learned • VLAN transparent transmission/VLAN filtering |
