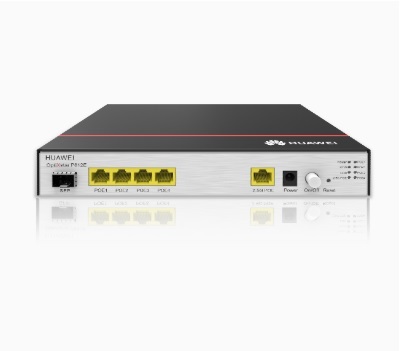

OptiXtrans P812E

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

1 x XGS-PON，4 x GE and 1 x 2.5 GE supports PoE/PoE

Specifications

ParametersOptiXstar P812E
Dimensions (H x W x D)
35 x 220 x 150 mm (without floor mat)
WeightApproximately 1030 g
Operating Temperature
–5°C to 45°C
Operating Humidity5% to 95% RH (non-condensing)
Power Adapter Input100-240 V AC, 50/60 Hz
System Power Supply56 V DC, 1.42A
NNI1 x XGS-PON
UNI4 x GE and 1 x 2.5 GE
supports PoE/PoE
Static Power Consumption8.5 W
Maximum PoE Output PowerGross power 60 W (up to 30 W per GE port)
Maximum Power Consumption12 W (PoE port without PD)
78 W (PoE port with PD at maximum power consumption)
Surge ProtectionGE: common mode 4 kV; differential mode 0.5 kV
AC power: common mode 6 kV; differential mode 6 kV
Installation ModeSupports indoor desktop installation, wall mounting, or network box installation
SFP

  • XGS-PON optical module, port type: SC/UPC

  • Class N1/N2

  • Receiver sensitivity: -28 dBm

  • Overload optical power: -9 dBm

  • Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s

  • Type B single-homing

  • Type B dual-homing (supported in Layer 2 forwarding)

  • GE/2.5 GE

  • PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at

  • Port type: RJ-45

  • GE ports: Auto ports speed (10/100/1000 Mbit/s)

  • 2.5 GE ports: Auto ports speed (100/1000/2500 Mbit/s)

  • Auto-MDI/MDIX

  • Configuration of the number of MAC addresses learned

  • VLAN transparent transmission/VLAN filtering
