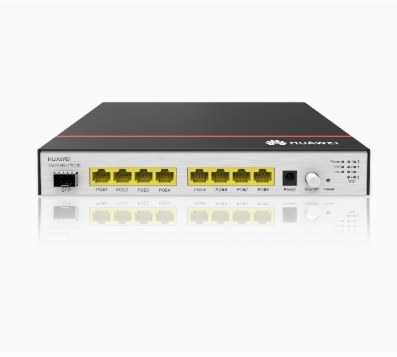

OptiXstar P813E

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

1 x XGS-PON，8 x GE (PoE/PoE+)

Specifications

ParametersOptiXstar P813E
Dimensions (H x W x D)
35 x 220 x 150 mm (without floor mat)
WeightApproximately 1030 g
Operating Temperature–5°C to 45°C
Operating Humidity5% to 95% RH (non-condensing)
Power Adapter Input100 V to 240 V AC, 50/60 Hz
System Power Supply56 V DC, 2.6 A
NNI1 x XGS-PON
UNI8 x GE (PoE/PoE+)
Static Power Consumption8 W
Maximum Power Consumption12 W (PoE port without PD); 143 W (PoE port with PD at maximum power consumption)
Maximum PoE Output PowerGross power 120 W (up to 30 W per GE port)
Surge ProtectionGE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV
Installation ModeSupports indoor desktop installation, wall mounting, or network box installation.
PON

  • XGS-PON optical module, port type: SC/UPC

  • Class N1/N2

  • Receiver sensitivity: -28 dBm

  • Overload optical power: -9 dBm

  • Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s

  • Type B single-homing

  • Type B dual-homing (supported in Layer 2 forwarding)


GE

  • PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at

  • Port type: RJ-45

  • Auto ports speed (10/100/1000 Mbit/s)

  • Auto-MDI/MDIX

  • Configuration of the number of MAC addresses learned

  • VLAN transparent transmission/VLAN filtering
