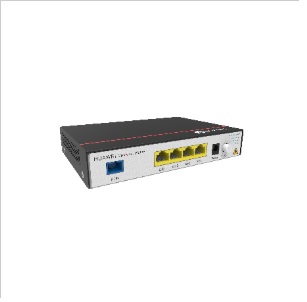

| Parameters | OptiXstar P602E |
| Dimensions (WxDxH) | 160mm x 110mm x 30mm（Without floor mat） |
| Weight | About 480 g |
| Operating temperature | -40°C to +55°C |
| Operating humidity | 5%RH to 95%RH (non-condensing) |
| Power adapter input | 100V to 240V AC, 50/60Hz |
| System power supply | 11V to 14V (typical 12 V), 1A |
| NNI | GPON |
| UNI | 4*GE |
| Static powerconsumption | To be determined |
| Maximum power consumption | 12 W |
| Surge protection specifications | • GE: common mode 6 kV; differential mode 1.5 kV. • AC power : common mode 6 kV; differential mode 6 kV |
| Installation mode | Support outdoor network box installation and indoor desktop installation, wall mounting, or network box installation. |
| PON | • Port type: SC/UPC • Complying with ITU-T G.984.2, Class B+ • Receiver sensitivity: -27dBm; • Overload optical power: -8dBm; • Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s • Type B single-homing • Type B dual-homing (supported in Layer 2 forwarding) |
| GE | • Port type:RJ-45 • Auto ports speed(10/100/1000 Mbit/s) • Auto-MDI/MDIX • Configuration of the number of MAC addresses learned • VLAN transparent transmission/VLAN filtering |
