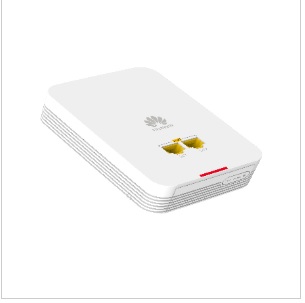

| Specification | EchoLife EG8020P |
| Dimensions (H × W × D) | Device: 125 mm x 86 mm x 30 mm Power adapter: 68.5 mm x 46.5 mm x 33 mm |
| Weight | Device: approximately 185 g Power adapter: approximately 155 g |
| Operating Temperature | -5℃ to 40℃ |
| Operating Humidity | 5% RH to 95% RH (non condensing) |
| Power Adapter Input | 100 V to 240 V AC, 50/60 Hz |
| UNI | 2 x GE |
| NNI | 1 x GPON |
| Maximum Power Consumption* | 6.5 W |
| Maximum PoE Output Power | Gross power 30 W, number 1 and 2 GE ports support up to 30 W. |
| Surge Protection Specifications | GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV |
| Installation Mode | Supports an 86-type faceplate or the standard junction box (D x W x H: 110 mm x 125 mm x 30 mm) mounting. |
| Compliance Certification | CE, CCC, RCM, and C-tick |
| GPON Port | • SC/APC connector • Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • GPON transmission rate (unit: Gbit/s): downstream 2.488, upstream 1.244 • Type B single-homing • Type B dual-homing (supported in Layer 2 forwarding) |
| Ethernet Electrical Port | • PoE & PoE+, complying with IEEE 802.3af and IEEE 802.3at • RJ-45 connector • Auto ports speed (10, 100, 1000 Mbit/s) • Auto-MDI/MDIX • Configuration of the number of MAC addresses learned on an Ethernet port • Ethernet port-based VLAN transparent transmission and filtering |
