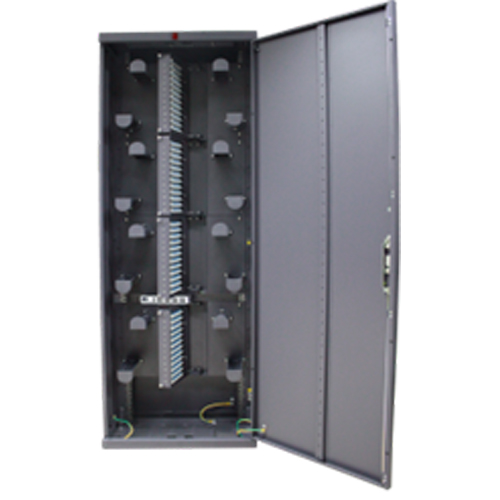

Used in Huawei's iODN solution, an intelligent optical distribution frame (iODF) connects, terminates, distributes, splits, and schedules office main optical cables in the optical fiber communications system. Together with the Intelligent Field (iField) and the U2000 optical distribution network (ODN), it enables intelligent optical fiber management and engineering of the iODN.
| Model | GPX147-ODF5101- CH2/FH2 | GPX147-ODF5101-CH9/FH9 | |
|---|---|---|---|
| Dimensions (H x W x D) mm | 2200 x 1200 x 300 | 2200 x 900 x 300 | 1600 x 900 x 300 |
| Available installation space | 45 U | 40 U | 26 U |
| Installation | In a 19 in. rack (standard) | In a 19 in. rack (standard) | In a 19 in. rack (standard) |
| Capacity (core) | In the integrated splicing and termination scenario: 1944 core In the separated splicing and termination scenario: line splicing: 1296 core line distribution: 1296 core | In the integrated splicing and termination scenario: 1728 core In the separated splicing and termination scenario: line splicing: 1296 core line distribution: 1080 core | In the integrated splicing and termination scenario: 1080 core In the separated splicing and termination scenario: splicing: 864 core distribution: 648 core |
| Materials | Sheet metals | Sheet metals | Sheet metals |
| Item | Specifications |
|---|---|
| Bending radius | Equal to or greater than 30 mm (1.18 in.) |
| Operating temperature | Long term: -5°C to +45°C (23-113°F) Short term: -25°C to +55°C (-13°F to +131°F)} |
| Storage temperature | -25°C to +55°C (-13°F to +131°F) |
| Transportation temperature | Ventilation: -40°C to +40°C (-40°F to +104°F) Non-ventilation: -40°C to +70°C (-40°F to +158°F) |
| Humidity | 5%-85% RH (non-condensing)} |
| Atmospheric pressure | 70-106 kPa |
