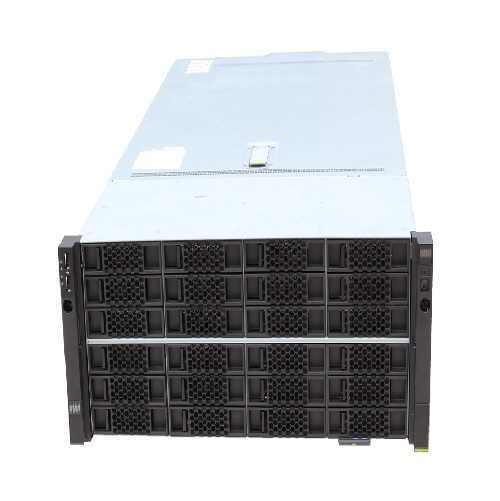

2*CPU(Hi1616),16*DIMMs,36*3.5" HDDs
Parameters | Model |
Form Factor | 4U rack server |
Processors | 2 Kunpeng 916 processors |
Memory | 16 DDR4 (2,400 MHz) DIMM slots |
Internal Storage | Front: 24 x 2.5-/3.5-inch SAS/SATA drives or SSDs Rear: 16 x 2.5-/3.5-inch SAS/SATA drives or SSDs |
RAID | RAID 0, 1, 5, 6, 10, 50, or 60 Supercapacitor for power failure protection |
LOM Network Ports | 2 x GE electrical ports + 2 x 10 GE optical ports |
PCIe Expansion | Up to 5 PCIe 3.0 x8 slots |
Management | Supports standard management interfaces, such as SNMP and IPMI. Provides management features such as virtual KVM, virtual media, SOL, remote control, and hardware monitoring. Provides independent management network ports and NC-SI management. |
Power Supply Units | Two 1,200W enhanced hot-swappable AC PSUs, supporting 1+1 redundancy |
Power Supply | 100V to 240V AC; 240V DC |
Fan Modules | 4 hot-swappable fan modules in N+1 redundancy |
Operating Systems | Ubuntu, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and CentOS |
Operating Temperature | 5ºC to 35ºC (41ºF to 95ºF) |
Certifications | CE, CCC, VCCI, and RoHS |
Dimensions (H x W x D) | 175 mm x 447 mm x 748 mm (6.89 in. x 17.60 in. x 29.45 in.) |
