Focus on Americas Market

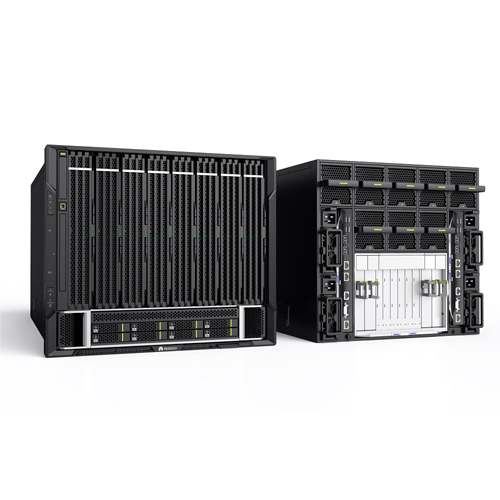

Kunlun 9008 V5

Part #: 02312JGB

Module #: BC9M51MCSC

Price: US$ 19981

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

8*CPU(Platinum 8100),96*DIMMs,48*2.5" HDDs

ModelKunLun 9008 V5KunLun 9008/9016/9032
Form Factor8-socket server (optional cabinet delivery)8S/16S/32S server (optional cabinet delivery)
ProcessorsIntel® Xeon® Scalable processor Platinum 8100 or Gold 6100 seriesIntel® Xeon® E7-4800/8800 v3/v4 series
Memory96 DDR4 DIMM slots, up to 12 TB memory capacity192/384/768 DDR4 DIMM slots, up to 8/16/32 TB memory capacity
Local Storage
• SAS-based compute module: Up to 4 SAS/SATA drives per module and 6 modules per server
• NVMe-based compute module: Up to 4 NVMe drives per module and 8 modules per server
• Storage-enhanced front I/O module: Up to 24 SAS/SATA drives per module
• NVMe-based front I/O module: Up to 8 U.2 SAS/SATA/NVMe drives per module
• Two built-in M.2 slots
12/24/48 x 2.5-inch SAS/SATA/SSD drives
RAIDRAID 0, 1, 10, 5, 50, 6, or 60
LOM Network Ports2 x 10GE SFP+ 2 x GE RJ45 ports2/4/8 GE/10 GE network modules, each supporting 2 GE, 4 GE, or 2 x 10 GE ports
PCIe ExpansionBack I/O module: 10 rear PCIe standard slots
Front I/O module: 2 RAID controller card slots
Each SAS-based compute module: 1 RAID controller card slot (up to 6 modules per server)
Back I/O module: 6/12/24 rear PCIe standard slots
Front I/O module: 6/12/24 front PCIe standard cards (unavailable when an I/O expansion enclosure is configured)
Compute modules do not support PCIe slots.
PartitioningK-Par: 2 physical partitions per server
L-Par: Up to 40 logical partitions (see note 1) per host
K-Par: 2/4/8 physical partitions per server; support for uneven physical partitions
L-Par: Up to 40 logical partitions per host
Management• Provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as SNMP and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as CD-free smart provisioning and Agentless to simplify management.
• Optionally configured with Huawei eSight software to provide advanced features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.
Resource Expansion Enclosure (REE)Each REE supports up to 30 non-hot-swappable or 10 hot-swappable PCIe slots (see note 2).Up to 1/2/4 REEs; up to 30 non-hot-swappable or 10 hot-swappable PCIe slots per REE
Fan Modules1 group of hot-swappable counter-rotating fans, each group containing 8 fans that support N+1 redundancy1/2/4 groups of hot-swappable counter-rotating fans, each group containing 8 fans that support N+1 redundancy
Dimensions (H x W x D)• With cabinet and acoustic doors: 2,000 mm x 600 mm x 1,550 mm (78.74 in. x 23.62 in. x 61.02 in.)
• One SCE: 352 mm x 447 mm x 855 mm (13.86 in. x 17.60 in. x 33.66 in.)
Operating Temperature5°C to 40°C (41°F to 104°F) (ASHRAE Class A3 compliant)
OSs and Virtualization SoftwareRed Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); Microsoft Windows Server; VMware ESXi
NotesNote 1: As for logical partitioning, KunLun 9008 V5 will provide basic features by Q2, 2018 and provide the online capacity expansion feature by Q3, 2018.
Note 2: KunLun 9008 V5 will support I/O expansion enclosures by Q2, 2018.
