4*CPU(Gold 5100/Gold 6100/Platinum 8100),48*DIMMs,8*2.5" HDDs or 25*2.5" HDDs or 24*2.5" HDDs or 16*2.5" HDDs + 8*NVMe SSDs

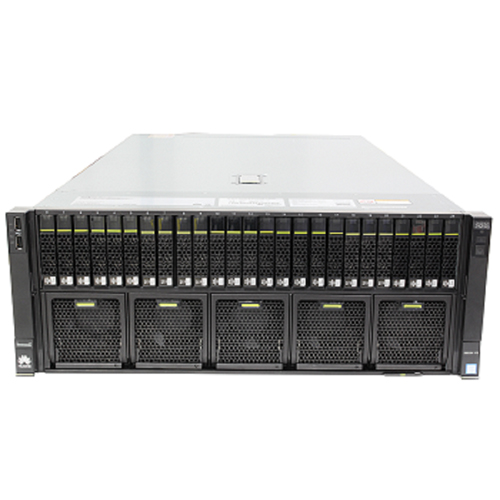

|Model||FusionServer 5885H V5|
|Form Factor||4U rack server|
|Processors||2 or 4 Intel® Xeon® Scalable processors of up to 205W|
|Memory||48 DDR4 DIMM slots, up to 2,666 MT/s memory speeds|
|Internal Storage||Supports hot-swappable hard drives with the following configuration options:|
• 8 x 2.5-inch SAS/SATA hard drives (front)
• 24 x 2.5-inch SAS/SATA hard drives (front)
• 25 x 2.5-inch SAS/SATA hard drives (front)
• 16 x 2.5-inch SAS/SATA hard drives or 8 x 2.5-inch NVMe SSDs (front)
• Two M.2 SSDs
|RAID||RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration|
|LOM Network Ports||2 x 10 GE + 2 x GE LOM ports|
|PCIe Expansion||• Up to 15 PCIe slots for 15 PCIe 3.0 slots|
• 2 dual-width full-height full-length GPU cards (x16)
|Fan Modules||5 hot-swappable counter-rotating fan modules with optional N+1 redundancy|
|Power Supply||4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include:|
• 1,500W AC Platinum PSUs
• 900W AC PSUs
• 1,200W DC PSUs (see note 1)
|Management||• Provides management features such as fault diagnosis, Dynamic Energy Management Technology (DEMT), and hardware security hardening based on Huawei iBMC chips; provides mainstream interfaces, such as Redfish interfaces, enabling easy integration.|
• Optionally configured with the Huawei eSight management software to provide advanced management features such as batch OS deployment and automated firmware upgrade, enabling automated entire-lifecycle management.
|Operating Temperature||5ºC to 45ºC (41ºF to 113ºF) (ASHRAE A3 and A4 compliant)|
|Certifications||CE, UL, FCC, CCC, and RoHS|
|Installation suite||L-shaped guide rails, adjustable guide rails, and holding rails|
|Dimensions (H x W x D)||175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)|
