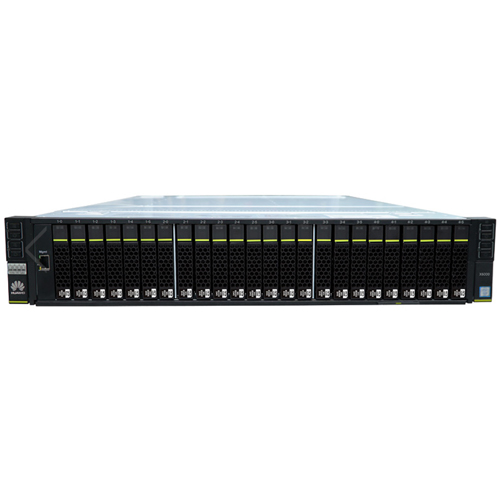

X6000 (V5 Server Node)

Part #: 02301401

Module #: BC2M06BKPK

Price: US$ 0

Availability: In Stock

* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

4*(2*(Bronze 3100/Silver 4100/Gold 5100/Gold 6100/Platinum 8100) CPU,16*DDR4 Memory slots, 6*2.5"HDD interfaces or 3*3.5HDD interfaces)

ProductX6000 High-Density Server
Form Factor2U, 4-node chassis
Server NodesFour 1U, half-width, and 2-socket server nodes
Power Supply Units2 hot-swappable AC PSUs (1,500W enhanced, 2,000W, or 3,000W), with support for 1+1 redundancy
Power Supply100V to 240V AC; 240V DC
Fan Modules4 hot-swappable fan modules with support for N+1 redundancy
Operating Temperature5ºC to 35ºC, compliant with ASHRAE CLASS A3
CertificationCE, UL, FCC, CCC, VCCI, and RoHS
Dimensions (H x W x D)Universal chassis for 1,500W enhanced or 2,000W PSUs: 86.1 mm x 436 mm x 805 mm (3.39 in. x 17.17 in. x 31.69 in.)
Chassis for 3,000W PSUs: 86.1 mm x 436 mm x 819 mm (3.39 in. x 17.17 in. x 32.24 in.) with 2.5-inch drives, or 86.1 mm x 436 mm x 867 mm (3.39 in. x 17.17 in. x 34.13 in.)  with 3.5-inch drives
