Azure Stack-HLH

Part #: 02311XDB

Module #: H12H-05-S8AFF

Price: US$ 1069.6

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

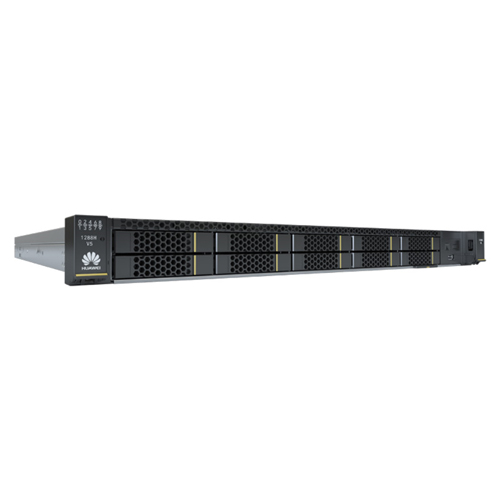

Azure Stack management node based on 1288H V5 rack server

Form Factor1U, 2-socket rack server
Processors1 or 2 full-series Intel® Xeon® Scalable Processors of up to 205W
Memory24 DDR4 DIMM slots, up to 2,666 MT/s
Internal StorageThree types of hard drive configurations supported:

  • 10 x 2.5-inch hard drives (6 to 8 NVMe SSDs and 2 to 4 SAS/SATA HDDs, total number of drives ≤ 10) , which can be:

0 to 6 NVMe SSDs + 0 to 4 SAS/SATA HDDs
0 to 7 NVMe SSDs + 0 to 3 SAS/SATA HDDs
0 to 8 NVMe SSDs + 0 to 2 SAS/SATA HDDs

  • 8 x 2.5-inch SAS/SATA HDDs or SSDs (the NVMe model supports 4 NVMe SSDs)

  • 4 x 3.5-inch SAS/SATA HDDs or SSDs

Flash storage:

  • 2 M.2 SSDs

RAID SupportRAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network PortsLOM NIC: 2 x 10 GE and 2 GE ports
FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) ports
PCIe ExpansionUp to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules7 hot-swappable counter-rotating fan modules with optional N+1 redundancy
Power Supply Units2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):

  • 550W AC Platinum PSUs

  • 900W AC Platinum/Titanium PSUs

  • 1,500W AC Platinum PSUs

  • 1,500W 380V HVDC PSUs

  • 1,200W -48V to -60V DC PSUs

ManagementBased on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.
Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.
Operating Temperature5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
CertificationsCE, UL, FCC, CCC, and RoHS
Installation suiteL-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)Chassis with 3.5-inch hard drives: 43 mm x 436 mm x 748 mm (1.70 in. x 17.17 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 436 mm x 708 mm (1.70 in. x 17.17 in. x 27.87 in.)
Special NoticesThe Titanium PSU is planned for release in Q1, 2019.
