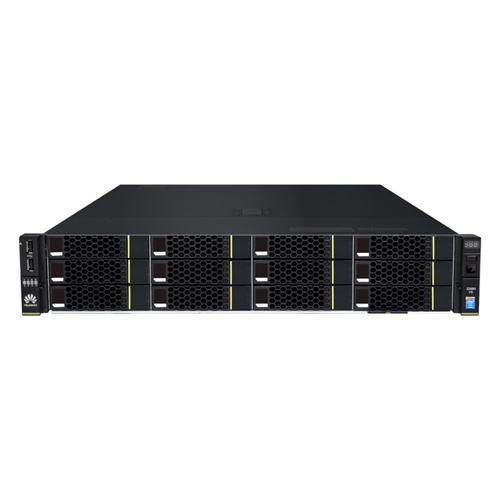

Azure Stack service node based on 2288H V5 rack server and high performance ES3000 SSD expansion card
| Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors | 1 or 2 full-series Intel® Xeon® Scalable Processors of up to 205W |
| Memory | 24 DDR4 DIMM slots, up to 2,666 MT/s |
| Internal Storage | Supports the following hard drive configuration options:
|
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports | FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) interfaces |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC. |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
|
| Management | Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management. Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management. |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.) |
| Special Notices | The Titanium PSU is planned for release in Q1, 2019. |
