2*CPU(Bronze 3100/Silver 4100/Gold 5100/Gold 6100/Platinum 8100),24*DIMMs,36*3.5"HDDs

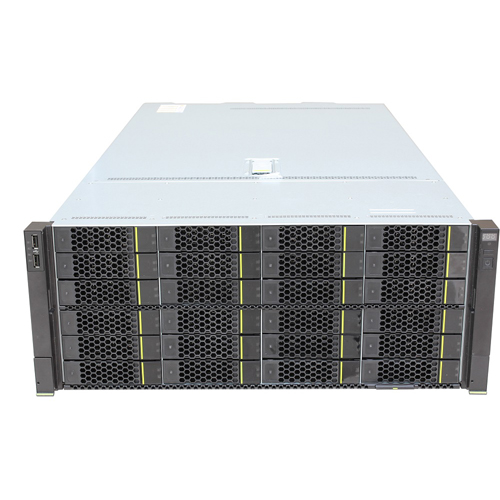

| Model | FusionServer 5288 V5 |
| Form Factor | 4U rack server |
| Processors | 1 or 2 Intel® Xeon® Scalable processors of up to 205W |
| Memory | 24 DDR4 DIMM slots, up to 2,666 MT/s memory speeds |
| Internal Storage | Front: • 24 x 3.5-inch SAS/SATA hard drives Embedded: • 4 x 3.5-inch SAS/SATA hard drives (see note 1) Rear: • 16 x 3.5-inch SAS/SATA hard drives • 16 x 3.5-inch SAS/SATA hard drives + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs • 14 x 3.5-inch SAS/SATA hard drives (or 4 NVMe SSDs for the NVMe model) + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs (this configuration does not support internal hard disk and I/O module 1) Flash storage: • Two M.2 SSDs |
| RAID | RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports | • LOM: 2 x 10 GE + 2 x GE ports • Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Fan Modules | 4 hot-swappable counter-rotating fan modules with optional N+1 redundancy |
| Power Supply | 2 hot-swappable PSUs with optional 1+1 redundancy. Supported options include: • 900W AC Platinum PSU • 1,500W AC Platinum PSU |
| Management | • Provides management features such as fault diagnosis, Dynamic Energy Management Technology (DEMT), and hardware security hardening based on Huawei iBMC chips; provides mainstream interfaces, such as Redfish interfaces, enabling easy integration. • Optionally configured with the Huawei eSight management software to provide advanced management features such as batch OS deployment and automated firmware upgrade, enabling automated entire-lifecycle management. |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | 175 mm x 447 mm x 748 mm (6.89 in. x 17.60 in. x 29.45 in.) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) (ASHRAE Class A3 compliant) |
