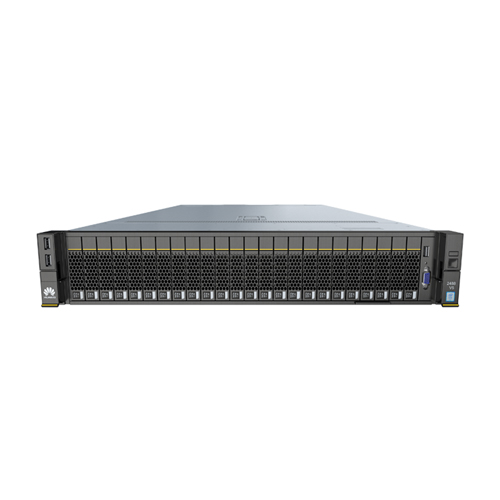

VSAN Solution 2488H V5

Part #: 02311YGS

Module #: H24H-05-S8AFM

Price: US$ 2538

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

Configure on demand, optional.

ModelFusionServer 2488H V5
Form Factor2U rack server
Processors2 or 4 Intel® Xeon® Scalable Processors of up to 205W
Memory48 DDR4 DIMM slots, with memory speeds of up to 2,666 MT/s
Internal StorageSupports the following hard drive configuration options:

  • 8 x 2.5-inch SAS/SATA HDDs on the front

  • 25 x 2.5-inch SAS/SATA HDDs on the front

  • 24 x 2.5-inch SAS/SATA HDDs on the front

  • 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front

Supports flash storage:

  • 2 M.2 SSDs

RAID Support

  • Supports RAID 0, 1, 5, 6, 10, 50, or 60

  • Supports a supercapacitor for cache power-off protection

  • Supports functions such as RAID level migration, drive roaming

LOM Network Ports2 x GE + 2 x 10 GE ports
PCIe ExpansionUp to 11 PCIe 3.0 slots
Fan Modules4 hot-swappable fan modules, providing protection against single-fan failures
Power Supply Units2 hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported:

  • 2,000W AC Platinum PSUs

  • 1,500W AC Platinum PSUs

  • 900W AC Platinum PSUs

  • 1,200W DC PSUs (Note 1)

Management

  • Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.

  • Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.

Operating Temperature5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4
CertificationsCE, UL, FCC, CCC, and RoHS
Installation suiteL-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)86.1 mm (2U) x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
