Supporting the use of FusionCloud solution,Optional
2*CPU(Bronze 3100 /Silver 4100 /Gold 5100 /Gold 6100 /Platinum 8100),24*DDR4 Memory slots,2*2.5"HDD interfaces,with 2*10GE LOM NIC

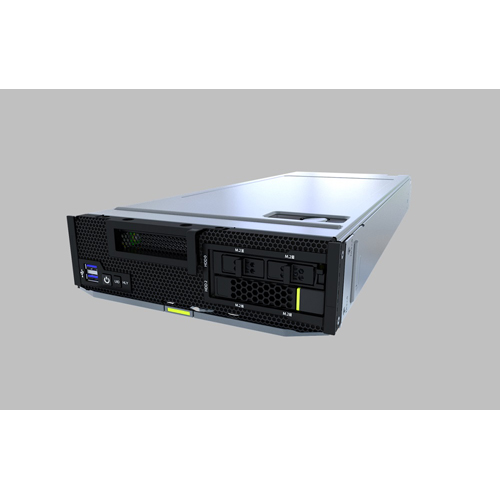

| Model | CH121 V5 |
| Form Factor | 2-socket blade server node in a half-width slot |
| Processors | 1 or 2 Intel® Xeon® Scalable Processors of up to 205W |
| Memory | 24 DDR4 DIMM slots, with memory speeds of up to 2,666 MT/s |
| Internal Storage | 2 x 2.5-inch SSDs, or SAS/SATA hard drives; 2 NVMe SSDs supported Or up to 4 M.2 SSDs (SATA interface), individually hot-swappable |
| RAID Support | 2 x 2.5-inch SSDs or SAS/SATA hard drives; supports RAID 0 or 1 4 M.2 SSDs; supports RAID 0, 1, 10, 5, or 6 |
| PCIe Expansion | 2 mezzanine cards (x16) 1 half-height half-length PCIe x16 standard card (front-accessible) |
| Operating Systems | Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Huawei FusionSphere Citrix XenServer VMware |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF), compliant with ASHRAE CLASS A3 |
| Dimensions (H x W x D) | 60.46 mm x 210 mm x 537.2 mm (2.38 in. x 8.27 in. x 21.15 in.) |
