Supporting the use of FusionCloud solution,Optional,
4*CPU(Gold 5100/Gold 6100/Platinum 8100),48*DIMMs,8*2.5" HDDs or 25*2.5" HDDs or 24*2.5" HDDs or 16*2.5" HDDs + 8*NVMe SSDs

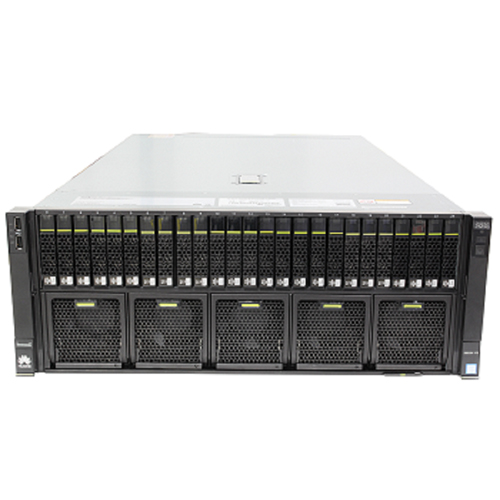

| Model | FusionServer 5885H V5 |
| Form Factor | 4U rack server |
| Processors | 2 or 4 Intel® Xeon® Scalable processors of up to 205W |
| Memory | 48 DDR4 DIMM slots, up to 2,666 MT/s memory speeds |
| Internal Storage | Supports hot-swappable hard drives with the following configuration options: • 8 x 2.5-inch SAS/SATA hard drives (front) • 24 x 2.5-inch SAS/SATA hard drives (front) • 25 x 2.5-inch SAS/SATA hard drives (front) • 16 x 2.5-inch SAS/SATA hard drives or 8 x 2.5-inch NVMe SSDs (front) Flash storage: • Two M.2 SSDs |
| RAID | RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| LOM Network Ports | 2 x 10 GE + 2 x GE LOM ports |
| PCIe Expansion | • Up to 15 PCIe slots for 15 PCIe 3.0 slots • 2 dual-width full-height full-length GPU cards (x16) |
| Fan Modules | 5 hot-swappable counter-rotating fan modules with optional N+1 redundancy |
| Power Supply | 4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include: • 1,500W AC Platinum PSUs • 900W AC PSUs • 1,200W DC PSUs (see note 1) |
| Management | • Provides management features such as fault diagnosis, Dynamic Energy Management Technology (DEMT), and hardware security hardening based on Huawei iBMC chips; provides mainstream interfaces, such as Redfish interfaces, enabling easy integration. • Optionally configured with the Huawei eSight management software to provide advanced management features such as batch OS deployment and automated firmware upgrade, enabling automated entire-lifecycle management. |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF) (ASHRAE A3 and A4 compliant) |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | 175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.) |
