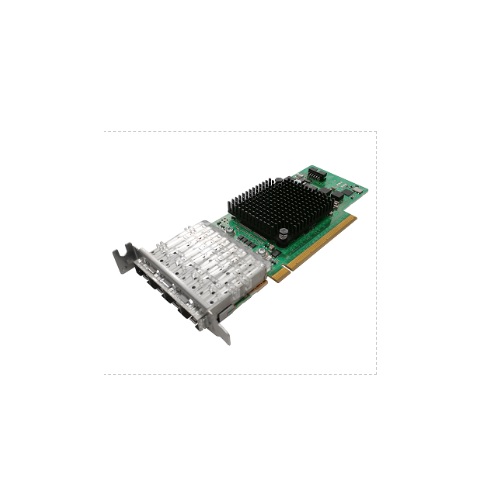

FC HBA Adapter (16G/8G)
Model | IN300 FC HBA Card |
Form Factor | Low profile standard card |
PCIe Expansion | PCIe x8, compatible with x4/x2/x1; PCIe 3.0, compatible with 2.0/1.0 |
HBA Chip | Huawei HiSilicon high-performance Fibre Channel HBA chip |
FC Ports | Single-port/Dual-port 8G/16G |
FC Specifications/Protocols | •SCSI-3 Fibre Channel Protocol (SCSI-FCP) •SCSI Fibre Channel Protocol-2 (FCP-2) •Second Generation Fibre Channel Generic Services (FC-GS-2) •Third Generation Fibre Channel Generic Services (FC-GS-3) •Fibre Channel Physical Interface 5 (FC-PI-5) •Fibre Channel Physical Interface 6 (FC-PI-6) •Fibre Channel Framing and Signaling (FC-FS-3) •Fibre Channel Link Services 3 (FC-LS-3) |
Performance | 1.7M IOPS, 6400 Mbit/s full-duplex |
Reliability Functions | •FEC (Forward error correction) •BB_CR (Buffer-to-Buffer Credit Recovery) •T10-PI (T10 Protection Information) |
Supported Servers | •FusionServer Pro 1288H V5 •FusionServer Pro 2288H V5 •FusionServer Pro 2488H V5 •FusionServer Pro 2488 V5 •FusionServer Pro 5288 V5 |
Operating Systems | •Linux OS: •SUSE Linux Enterprise Server (SLES) 11.4/12.2/12.3/15 •Red Hat Enterprise Linux (RHEL) •6.9/6.10/7.1/7.2/7.3/7.4/7.5/7.6 •CentOS 6.9/6.10/7.2/7.3/7.4/7.5 •Ubuntu 18.04 LTS •Oracle Linux 6.9/7.3 •FusionSphere 6.1u3/6.3 •VMware OS: •VMware ESXi 6.0.3/6.5/6.5.1/6.5.2/6.7 •Windows OS: •Microsoft Windows Server 2012 R2/2016 •For more information about compatibility, visit http://support.huawei.com/onlinetoolsweb/ftca/en. |
Supported Optical Modules | Supports the delivered 8/16 Gbit/s optical modules |
Dimensions (H × W × D) | 68.9 mm × 18.71 mm × 167.65 mm (2.71 in. × 0.74 in. × 6.60 in.) |
Weight | 0.5 kg (including the package) |
Operating Temperature | 5°C to 45°C (41°F to 113°F) |
Storage Temperature | –40°C to +65°C (–40°F to +149°F) |
Temperature Change Rate | 20°C/h (68°F/h) |
Humidity | 8% to 90% RH (non-condensing) |
Relative Storage Humidity | 5% to 95% RH (non-condensing) |
Humidity Change Rate | ≤20% RH/h |
Altitude | ≤ 3000 m (9842.52 ft.) When the intelligent NIC is used at an altitude of higher than 900 m (2952.76 ft), the highest operating temperature decreases by 1ºC (1.8°F) as the altitude increases by every 300 m (984.25 ft). |
