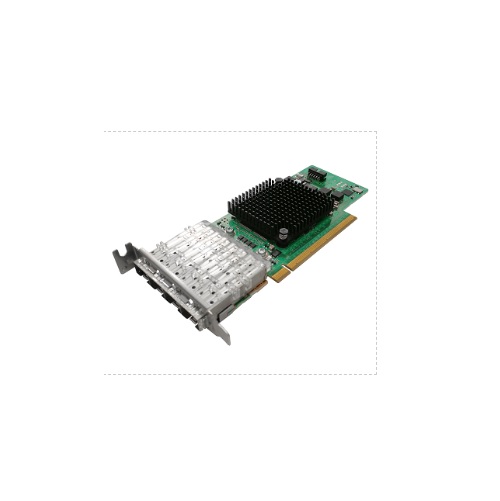

Ethernet Adapter,4 Port 25GE/10GE based on Hi1822 chip
Model | IN200 Ethernet NIC |
Form Factor | Low profile standard card |
PCIe Expansion | PCIe x16, compatible with x8/x4/x2/x1; PCIe 3.0, compatible with 2.0/1.0 |
NIC Chip | Huawei HiSilicon Hi1822 NIC chip |
NIC Ports | 4 SFP28 25GE service ports |
Optical Modules | SFP28 and SFP+ optical modules, multi-mode or single-mode |
PXE | Supported (default) |
Features | • IEEE 802.3x flow control • PFC and ETS • VLAN offload and MAC filtering • Stateless offload (Checksum/TSO/LRO/RSS) • vRoCE and RoCE v2 • VxLAN tunnel encapsulation/decapsulation offload • OVS TC Flower offload • DPDK driver • SR-IOV |
Supported Servers | • FusionServer Pro 1288H V5 • FusionServer Pro 2288H V5 • FusionServer Pro 2488H V5 • FusionServer Pro 2488 V5 • FusionServer Pro 5288 V5 |
Operating Systems | • CentOS 6.8/6.9/6.10/7.0/7.1/7.2/7.3/7.4/7.5/7.6 • Red Hat Enterprise Linux (RHEL) 6.9/6.10/7.0/7.1/7.2/7.3/7.4/7.5/7.6 • SUSE Linux Enterprise Server (SLES) 11.2/11.3/11.4/12/12.1/12.3/15 • Ubuntu 14.04/16.04 /18.04 • VMware ESXi 6.0/6.5/6.7 • Microsoft Windows Server 2012R2/2016 • For more information about compatibility, visit http://support.huawei.com/onlinetoolsweb/ftca/en. |
Dimensions (H × W × D) | 68.9 mm × 18.71 mm × 167.65 mm (2.71 in. × 0.74 in. × 6.60 in.) |
Weight | 0.5 kg (including the package) |
Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF) |
Storage Temperature | –40°C to +65°C (–40°F to +149°F) |
Temperature Change Rate | 20°C/h (68°F/h) |
Humidity | 8% to 90% RH (non-condensing) |
Relative Storage Humidity | 5% to 95% RH (non-condensing) |
Humidity Change Rate | ≤ 20% RH/h |
Altitude | ≤ 3000 m (9842.52 ft.) When the intelligent NIC is used at an altitude of higher than 900 m (2952.76 ft), the highest operating temperature decreases by 1ºC (1.8°F) as the altitude increases by every 300 m (984.25 ft). |
