Focus on Americas Market

X2241-HL

Part #:

Module #:

Price: US$ 495.9

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

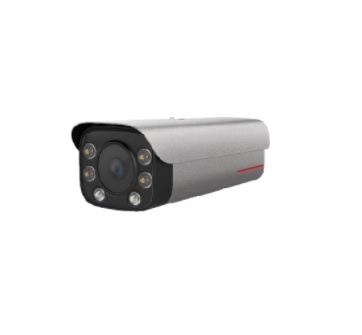

4T 4MP Multiple algorithm parallel bullet camera




VehicleLicense plate image enhancement
Traffic flow statisticsMotor vehicle/Non-motorized vehicle/Pedestrian
Behavior analysisFast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering
Crowd flow analysisQueue length/Head counting/Crowd flow statistics
TargetTarget detection/Target enhancement/Target attribute recognition
PersonPerson detection/Personal attribute recognition
Non-motorized vehicleObject classification/Cyclist attributes
CPUHi3559A V100
Computing power4 TOPS
MemoryDDR4 4.0 GB
Flash typeSPI NAND Flash
Max resolution4MP 2560(H)*1440(V)
Sensor size1/1.8" CMOS
Min illuminationColor: 0.0004 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed)
Focal length10-55mm
Angle of viewHorizontal: 9.2° (T) to 40.3° (W); vertical: 5.3° (T) to 22.8° (W)
Illumination distance30m
Video encoding formatMJPEG/H.264/H.265
Video frame rateConfigurable (30 fps or 25 fps); default value: 25 fps
Audio encoding formatG.711a/G.711u/G.726/OPUS
1 + NSupported
RS-485 portSupported
Boolean portSupported
Ethernet portSupported
Ethernet port quantity2
Ethernet port bandwidthTwo RJ45 10M/100M/1000M adaptive Ethernet ports
Power type24 V AC
Power consumptionMaximum: 26.1 W; typical: 8.1 W
Operating temperature–40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity5% to 95% (non-condensing)
IP ratingIP67
IK ratingIK10
