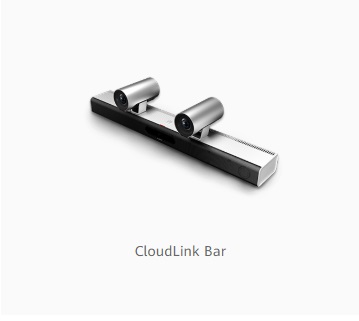

CloudLink Bar 500

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

With two HD intelligent-tracking cameras, the Huawei CloudLink Bar 500 can automatically focus both video and audio coverage on the person speaking in a video conference. The unit integrates a 12-microphone array for professional conference audio. With excellent network adaptability, a powerful H.265 video codec, and a user-friendly interface, the CloudLink Bar is ideal for small and medium-sized conference rooms.


TypeCloundlink Bar 500
Audio Standards and ProtocolsG.711A/G.711U/G.722/G.7221C/Opus/AAC-LD single-channel and dual-channel
Video Encoding and Decoding ProtocolsH.263/H.264 HP/H.264 BP/H.264 SVC/H.265
Dual Stream Protocols H.239/BFCP
Video Specifications and Features
Video Resolution:
1080p60, 1080p30, 720p60, 720p30, 4SIF/4CIF, and SIF/CIF/QSIF/QCIF/SQSIF/SQCIF
Dual Stream:
1080p60 + 1080p60 (4K15)
1080p30 + 1080p30 (4K8)
Data Conference: 4K3
Special Features: Picture-In-Picture (PIP) and Picture-Outside-Picture (POP)
Audio Specifications and Features Acoustic Echo Cancellation (AEC)
Automatic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Voice clear
Audio enhancer
Lip synchronization
Network AdaptabilitySuper Error Concealment (SEC)
Automatic Repeat-reQuest (ARQ)
Forward Error Correction (FEC)
Security managementTLS and SRTP for SIP signaling and media stream encryption; Conference access password, conference control password, administrator password; SSH/HTTPS, dual stream encryption.
Video Input Ports1 x Built-in Camera (dual 1080p tracking camera and 5x optical zoom)
1 x HDMI (4K30)
1 x VGA (1080p60)
Video Output Ports1 x HDMI (4K60)
1 x HDMI (4K30)
Audio Input PortsBuilt-in microphone array
1 x 3.5 mm
1 x HD-AI
1 x HDMI
Audio Output PortsBuilt-in Speaker
1 x 3.5 mm
2 x HDMI
Other Ports1 x USB 2.0 A
1 x USB 2.0 B
1 x 10/100/1,000M LAN
1 x POE
1 x RJ45 (Serial port)
1 x Built-in Wi-Fi
1 x Built-in Bluetooth
