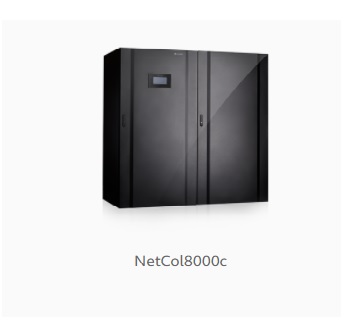

NetCol8000-C

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Ship and Warranty by Huawei USA CANADA.
* Price includes USA customs duty and shipping cost.
* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

NetCol8000-C In-Room Chilled Water Smart Cooling Products


Downflow


Unit ModelNetCol8000-C070DNetCol8000-C130DNetCol8000-C190D




Total Cooling Capacity¹63.2 kW126.4 kW189.6 kW
Sensible Cooling Capacity51.4 kW102.8 kW154.2 kW
Air Flow13,500 m3/h27,000 m3/h40,500 m3/h
Power Supply380–415 V, 3 phase, 50 Hz380–415 V, 3 phase, 60 Hz440–480 V, 3 phase, 60 Hz
Water Flow3.02 L/s6.03 L/s9.05 L/s
Water Pressure Drop62.4 kPa85.4 kPa96 kPa
Heating Capacity6 kW12 kW12 kW
Humidifier Capacity5 kg/h8 kg/h12 kg/h
Full Load Current²4.7 (15.2) A8.9 (29.9) A13.1 (34.1) A
Dimensions (H x W x D)2000 x 900 x 1000 mm2000 x 1800 x 1000 mm2000 x 2700 x 1000 mm
Net Weight340 kg635 kg930 kg

Notice:

1. Nominal cooling condition: 24°C return air dry bulb temperature, 50% relative humidity, 7°C/12°C inlet/outlet water temperature, 20 Pa Electrical Submersible Pump (ESP).

2. The numbers in parentheses are applicable to units with electric heaters and humidifiers.nlet/outlet water temperature, 20 Pa Electrical Submersible Pump (ESP).


Upflow

Unit ModelNetCol8000-C070DNetCol8000-C130DNetCol8000-C190D




Total Cooling Capacity¹63.2 kW126.4 kW189.6 kW
Sensible Cooling Capacity51.4 kW102.8 kW154.2 kW
Air Flow13,500 m3/h27,000 m3/h40,500 m3/h
Power Supply380–415 V, 3 phase, 50 Hz380–415 V, 3 phase, 60 Hz440–480 V, 3 phase, 60 Hz
Water Flow3.02 L/s6.03 L/s9.05 L/s
Water Pressure Drop62.4 kPa85.4 kPa96 kPa
Heating Capacity6 kW12 kW12 kW
Humidifier Capacity5 kg/h8 kg/h12 kg/h
Full Load Current²4.7 (15.2) A8.9 (29.9) A13.1 (34.1) A
Dimensions (H x W x D)2000 x 900 x 1000 mm2000 x 1800 x 1000 mm2000 x 2700 x 1000 mm
Net Weight340 kg635 kg930 kg

Notice:

1. Nominal cooling condition: 24°C return air dry bulb temperature, 50% relative humidity, 7°C/12°C inlet/outlet water temperature, 20 Pa Electrical Submersible Pump (ESP).

2. The numbers in parentheses are applicable to units with electric heaters and humidifiers.nlet/outlet water temperature, 20 Pa Electrical Submersible Pump (ESP).
