NetCol8000-A

Part #:

Module #:

Price: US$ 0

Availability: In Stock

* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

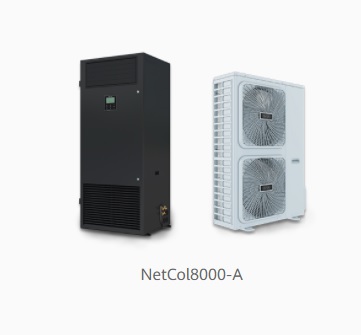

NetCol8000-A In-Room Air Cooled Smart Cooling Products



Unit ModelNetCol8000-A013U
Air Discharge DirectionUpflow
Total Cooling Capacity¹13 kW
Sensible Cooling Capacity11.7 kW
Air Volume3600 m3/h
Power Supply Voltage380–415 V, 3 phase, 50 (60) Hz
RefrigerantR410A
Heating Capacity (Optional)4 kW
Humidifier Capacity (Optional)3 kg/h
Dimensions (H x W x D)1886 x 800 x 664 mm
Net Weight²141 (153) kg

Notice:

1. Nominal cooling condition: 24°C return air dry bulb temperature, 50% relative humidity, 35°C outdoor temperature.

2. The number in parenthesis is applicable to units with an electric heater and humidifier.


Unit ModelNetCol8000-A045D/UNetCol8000-A090D
Air Discharge DirectionD: Downflow; U: Upflow
Total Cooling Capacity¹45 kW90 kW
Sensible Cooling Capacity45 kW90 kW
Air Volume11,250 m3/h22,500 m3/h
Power Supply380/400/415 V, 3 phase, 50/60 Hz
Heating Capacity6 kW12 kW
Humidifier Capacity6 kg/h10 kg/h
Full Load Current²36 (40) A72 (80) A
Dimensions (H x W x D)2000 x 900 x 900 mm2000 x 1800 mm x 1000 mm
Net Weight355 kg643 kg

Notice:

1. Nominal cooling condition: 35°C return air dry bulb temperature, 26% relative humidity, 35°C outdoor temperature.

2. The numbers in parentheses are applicable to indoor units with an electric heater and humidifier (optional).
