S2700 series enterprise switches, including S2710, S2750, and S2751
series, are next-generation, energy-saving intelligent 100M Ethernet
switches developed by Huawei. The S2700 uses cutting-edge switching
technology and Huawei’s Versatile Routing Platform (VRP) software to
meet the demand for multi-service provisioning and access on
Ethernet networks. They are easy to install and maintain. With its
flexible network deployment, comprehensive security, Quality of
Service (QoS) policies, and energy-saving technology, the S2700
helps enterprise customers build next-generation IT networks.
The S2700 is a box device that is 1U 1.75 in. (44.45 mm) high. It is
available in a standard version (SI) or an enhanced version (EI).
Switch | Description |
---|---|
S2700-9TP-SI-AC
S2700-9TP-EI-AC
S2700-9TP-EI-DC |
|
S2700-9TP-PWR-EI |
|
S2700-18TP-SI-AC
S2700-18TP-EI-AC |
|
S2700-26TP-SI-AC
S2700-26TP-EI-AC
S2700-26TP-EI-DC |
|
S2700-26TP-PWR-EI |
|
S2710-52P-SI-AC |
|
S2700-52P-EI-AC |
|
S2710-52P-PWR-SI |
|
S2700-52P-PWR-EI |
|
S2750-20TP-PWR-EI-AC |
|
S2750-28TP-EI-AC |
|
S2750-28TP-PWR-EI-AC |
|
S2751-28TP-PWR-EI-AC |
|
Item | S2700-SI/S2710-SI* | S2700-EI | S2750-EI/S2751-EI |
---|---|---|---|
Downlink Ports |
S2700-9TP-SI**/S2700-9TP-EI/S2700-9TP-PWR-EI: 8 10/100 Base-TX Ethernet ports S2700-18TP-SI/S2700-18TP-EI/S2750-20TP-PWR-EI-AC: 16 10/100 Base-TX Ethernet ports S2700-26TP-SI/S2700-26TP-EI/S2700-26TP-PWR-EI/S2750-28TP-EI-AC/S2750-28TP-PWR-EI-AC/S2751-28TP-PWR-EI-AC: 24 10/100 Base-TX Ethernet ports S2710-52P-SI/S2700-52P-EI: 48 10/100 Base-TX Ethernet ports |
||
Uplink Ports |
S2700-9TP-SI/S2700-9TP-EI/S2700-9TP-PWR-EI/: 1 dual-purpose 10/100/1,000 or SFP S2700-18TP-EI /S2700-18TP-SI /S2700-26TP-EI /S2700-26TP-EI /S2700-26TP-PWR-EI/S2700-26TP-SI: 2 dual-purpose 10/100/1,000 or SFP S2710-52P-SI/S2700-52P-EI/: 4 Gb SFP S2750-20TP-PWR-EI /S2750-28TP-EI-AC/S2750-28TP-PWR-EI/S2751-28TP-PWR-EI: 2 Gb SFP and 2 dual-purpose 10/100/1,000 or SFP |
||
MAC Address |
8 K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable Black hole MAC address entries |
8 K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable Black hole MAC address entries MAC address learning control based on ports |
16 K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable MAC address learning control based on ports Black hole MAC address entries |
VLAN Feature |
4K active VLANs, complying with IEEE 802.1Q Port-based VLAN assignment |
||
N/A |
MAC address-based assignment Port-based QinQ |
||
QoS |
Outbound port-based rate limiting and flow-based rate limiting 4 or 8 queues of different priorities on each port Mapping between 802.1ppriorities and queues SP, WRR, and SP + WRR algorithms |
Port-based rate limiting and flow-based rate limiting 4 or 8 queues of different priorities on each port Mapping between 802.1ppriorities and queues SP, WRR, and SP + WRR algorithms |
Port-based rate limiting and flow-based rate limiting 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP + WRR algorithms |
N/A | Packet-based priority remark and packet redirection | ||
IPv6 Features |
IPv6 protocol Static IPv6 routes |
IPv6 protocol Static IPv6 routes Supports MLD v1/v2 snooping |
|
Multicast |
IGMP v1/v2/v3 snooping Port-based rate limiting formulticast packets |
MVLAN Controllable multicast IGMP v1/v2/v3 snooping Port-based rate limiting for multicast packets |
|
Reliability |
S2700-SI: STP (IEEE 802.1d), RSTP (IEEE 802.1w) S2710-SI: STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), RRPP topology, and RRPP multi-instance |
STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance SEP and ERPS (G.8032) Smart Link tree topology and Smart Link multi-instance, implementing millisecond-level protective switchover |
Traffic Sampling | N/A | sFlow | |
Security and Access Features |
S2700-SI: Storm suppression S2710-SI: Storm suppression, IP Source Guard |
802.1x authentication and limit on the number of users on an interface Storm suppression IP Source Guard |
|
S2700-SI: Multiple authentication methods including AAA, RADIUS, andTACACS+ Port isolation, multicasesuppression, broadcast, and unknown unicast packets CPU defense S2710-SI: Multiple authentication methods including AAA, RADIUS, and TACACS+ Port isolation, multicasesuppression, broadcast, and unknown unicast packets CPU defense DHCP snooping |
Multiple authentication methods including AAA, RADIUS, and TACACS+ 802.1x authentication, MAC address authentication, MAC bypass authentication DHCP snooping Port isolation and sticky MAC Packet filtering based on MAC addresses Multicast suppression, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense S2750-EI/S2751-EI: DHCP relay |
||
Surge Protection | Surge protection capability of service ports: 7 kV | Surge protection capability of service ports: 7 kV | |
Management |
Stack (S2710-52P-SI-AC, S2710-52P-PWR-SI, S2700-52P-EI-AC, and S2700-52P-PWR-EI) Auto-config CLI-based configuration Remote configuration using Telnet SNMP v1/v2C/v3 Remote network monitoring SSHv2 Web-based device management |
Stack Easy Operation CLI-based configuration Remote configuration using Telnet SNMP v1/v2C/v3 Remote network monitoring SSHv2 Web-based device management |
|
Interoperability | NA | Supports VBST (Compatible withPVST/PVST+/RPVST) | |
Supports LNP (similar to DTP) | |||
Supports VCMP (similar to VTP) | |||
Operating Environment |
Long-term operating temperature: 23oF to 122oF (–5°C to 50°C) Relative humidity: 10% to 90% (non-condensing) |
||
Power |
Rated AC voltage: 100V to 240V, 50/60 Hz, Maximum voltage: 90V to 264V, 50/60 Hz Rated DC voltage: –48V to –60V, Maximum voltage: –36V to –72V Note: PoE models do not use DC power supplies. |
||
Dimensions (W x D x H) |
S2700-9TP-EI/SI: 9.8 in. x 7.1 in. x 1.7 in. (250 mm ×
180 mm × 43.6 mm) S2750-20TP-PWR-EI-AC/S2750-28TP-PWR-EI-AC/S2751-28TP-PWR-EI-AC/ S2720-28TP-EI-AC: 17.4 in. x 12.2 in. x 1.7 in. (442 mm × 310 mm × 43.6 mm) |
||
Weight |
S2700-9TP-SI < 3.1 lb. (1.4
kg) |
S2700-9TP-SI < 3.1 lb. (1.4
kg) |
S2750-20TP-PWR-EI < 9.9 lb. (4.5
kg) |
Power Consumption |
S2700-9TP-SI < 12.8W |
S2700-9TP-EI < 12.8W |
S2750-20TP-PWR-EI < 435W |
The product information may contain the product functions provided in future. For the actual product specifications, contact Huawei local sales office. |

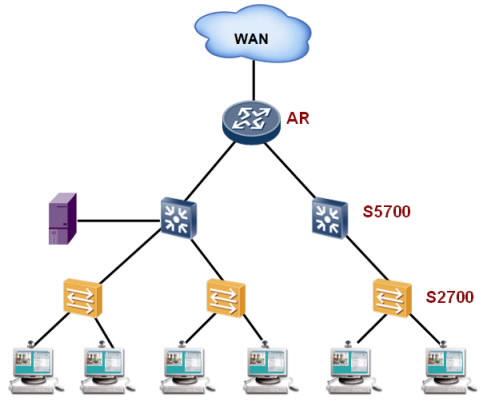

The S2700 can function as a desktop access device that provides
100 Mbit/s access rate for terminals and 1000 Mbit/s uplink
interfaces to communicate with uplink devices.
Product description |
---|
S2700-9TP-EI-AC Mainframe (8 Ethernet 10/100 ports, 1 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-9TP-EI-DC Mainframe (8 Ethernet 10/100 ports, 1 dual-purpose 10/100/1,000 or SFP, DC -48V) |
S2700-9TP-SI-AC Mainframe (8 Ethernet 10/100 ports, 1 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-18TP-EI-AC Mainframe (16 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-18TP-SI-AC Mainframe (16 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-26TP-EI-AC Mainframe (24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-26TP-EI-DC Mainframe (24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP, DC -48V) |
S2700-26TP-SI-AC Mainframe (24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-52P-EI-AC Mainframe (48 Ethernet 10/100 ports, 4 Gb SFP, AC 110/220V) |
S2710-52P-SI-AC Mainframe (48 Ethernet 10/100 ports, 4 Gb SFP, AC 110/220V) |
S2700-9TP-PWR-EI Mainframe (8 Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2700-26TP-PWR-EI Mainframe (24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP, PoE+ without power module) |
S2700-52P-PWR-EI Mainframe (48 Ethernet 10/100 ports, 4 Gb SFP, PoE+, dual power slots, includes single 500W AC power) |
S2710-52P-PWR-SI Mainframe (48 Ethernet 10/100 ports, 4 Gb SFP, PoE+, dual power slots, includes single 500W AC power) |
S2750-20TP-PWR-EI-AC Mainframe (16 Ethernet 10/100 ports, 2 Gb SFP and 2 dual-purpose 10/100/1,000 or SFP, PoE+, AC 110/220V) |
S2750-28TP-EI-AC Mainframe (24 Ethernet 10/100 ports, 2 Gb SFP and 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V) |
S2750-28TP-PWR-EI-AC Mainframe (24 Ethernet 10/100 ports, 2 Gb SFP and 2 dual-purpose 10/100/1,000 or SFP, PoE+, AC 110/220V) |
S2751-28TP-PWR-EI-AC Mainframe (24 Ethernet 10/100 ports, 2 Gb SFP and 2 dual-purpose 10/100/1,000 or SFP, PoE+, AC 110/220V) |
500W PoE power supply unit |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2751-28TP-PWR-EI-AC | 12 Ethernet 10/100 PoE+ ports,12 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V | |
CISCO | WS-C2960C-12PC-L | 2960C PoE Switch 12 FE PoE, 2 x Dual Purpose Uplink, LAN Base | 12 more FE electrical downlink ports, 2 more GE uplink ports; 6Kv surge protection; 4K VLANs; 1K ACL rules |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2750-28TP-PWR-EI-AC | 24 Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V | |
CISCO | WS-C2960C-8PC-L | 2960C PoE Switch 8 FE PoE, 2 x Dual Purpose Uplink, LAN Base | Two more GE uplink ports; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960S-F24PS-L | Stackable 24 10/100 RJ45 Ethernet ports and 2*GE SFP uplink ports, 370w POE+, 20G FlexStack, LAN Base feature set | Two more GE uplink ports, 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
HP/H3C | S3100V2-26TP-PWR-EI | HP JD313B 3100-24PoE v2 EI. L2FE Swith, 370w PoE. 24 10/100Base-T PoE Ports, and 2 GE Combo Ports. | Two more GE uplink ports; iStack; sFlow; 6Kv surge protection; Easy Operation |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2750-28TP-EI-AC | 24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V | |
CISCO | WS-C2960+24TC-L | Standalone 24 10/100 RJ45 Ethernet ports and 2*GE SFP/RJ45 uplink ports, LAN Base feature set | Two more GE uplink ports, 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
CISCO | WS-C2960-24TC-L | Catalyst 2960 24 10/100 + 2 T/SFP LAN Base Image | Two more GE uplink ports, 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
CISCO | WS-C2960-24TT-L | Catalyst 2960 24 10/100 + 2 T/SFP LAN Lite Image | Two more GE uplink ports, 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
CISCO | WS-C2960S-F24TS-L | Stackable 24 10/100 RJ45 Ethernet ports and 2*GE SFP uplink ports, 20G FlexStack, LAN Base feature set | Two more GE uplink ports, 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
HP/H3C | E126B | HP Not Involved | Two more GE uplink ports; iStack; sFlow; 6Kv surge protection; Easy Operation |
HP/H3C | S3100V2-26TP-EI | HP JD320B 3100-24 v2 EI. L2FE Swith. 24 10/100Base-T Ports, and 2 GE Combo Ports. | Two more GE uplink ports; iStack; sFlow; 6Kv surge protection; Easy Operation |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2700-9TP-SI-AC | 8 FE RJ45, 1 GE Combo, AC 110/220V | |
CISCO | WS-C2960-8TC-S | Catalyst 2960 8 10/100 + 1 T/SFP LAN Lite Image | 6Kv surge protection; 4K VLANs; fan-free design |
CISCO | WS-C2960C-8TC-S | 2960C Switch 8 FE, 2 x Dual Purpose Uplink, LAN Lite | 6Kv surge protection; 4K VLANs |
HP/H3C | S3100V2-8TP-SI | HP JG221A 3100-8 v2 SI. L2FE Swith. 8 10/100Base-T Ports, and 1 GE Combo Port. | 6Kv surge protection; Auto Configuration |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2700-9TP-PWR-EI | 8 FE RJ45, 1 GE Combo, PoE, AC 110/220V | |
HP/H3C | S3100V2-8TP-PWR-EI | HP Not Involved | 6Kv surge protection; Auto Configuration |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2700-52P-PWR-EI | 48 FE RJ45, 4 GE SFP, PoE, Dual Slots of Power, Including Single 500W AC Power | |
CISCO | WS-C2960+48PST-L | Standalone 48 10/100 RJ45 Ethernet ports and 2*GE SFP + 2*GE RJ45 uplink ports, 370w POE, LAN Base feature set | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-48PST-L | Catalyst 2960 48 10/100 PoE + 2 1000BT +2 SFP LAN Base Image | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-48PST-S | Catalyst 2960 48 10/100 PoE + 2 1000BT +2 SFP LAN Lite Image | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960S-F48FPS-L | Stackable 48 10/100 RJ45 Ethernet ports and 4*GE SFP uplink ports, 740w POE+, 20G FlexStack, LAN Base feature set | 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
CISCO | WS-C2960S-F48LPS-L | Stackable 24 10/100 RJ45 Ethernet ports and 4*GE SFP uplink ports, 370w POE+, 20G FlexStack, LAN Base feature set | 6Kv surge protection; 4K VLANs; fan-free design; 1K ACL rules |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2700-52P-EI-AC | 48 FE RJ45, 4 GE SFP, AC 110/220V | |
CISCO | WS-C2960+48TC-L | Standalone 48 10/100 RJ45 Ethernet ports and 2*GE SFP/RJ45 uplink ports, LAN Base feature set | 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-48TC-L | Catalyst 2960 24 10/100 (8 PoE) + 2 T/SFP LAN Lite Image | 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-48TC-S | Catalyst 2960 24 10/100 (8 PoE) + 2 T/SFP LAN Lite Image | 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-48TT-L | Catalyst 2960 48 10/100 + 2 1000BT LAN Lite Image | 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-48TT-S | Catalyst 2960 48 10/100 + 2 1000BT LAN Lite Image | 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960S-F48TS-L | Stackable 48 10/100 RJ45 Ethernet ports and 4*GE SFP uplink ports, 20G FlexStack, LAN Base feature set | 6Kv surge protection; 4K VLANs; 1K ACL rules |
HP/H3C | S3100V2-52TP | HP JG315A 3100-48 v2. L2FE Swith. 48 10/100Base-T Ports, and 4 1000Base-X SFP Ports including 2 GE Combo Ports. | 6Kv surge protection; Auto Configuration |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2700-26TP-PWR-EI | 24 FE RJ45, 2 GE Combo, PoE, Dual Slots of Power, Without Power Module | |
CISCO | WS-C2960+24LC-L | Standalone 24 10/100 RJ45 Ethernet ports and 2*GE SFP/RJ45 uplink ports, 123w POE, LAN Base feature set | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960+24LC-S | Standalone 24 10/100 RJ45 Ethernet ports and 2*GE SFP/RJ45 uplink ports, 123w POE, LAN Lite feature set | 30W PoE+; 6Kv surge protection; 4K VLANs |
CISCO | WS-C2960+24PC-L | Standalone 24 10/100 RJ45 Ethernet ports and 2*GE SFP uplink ports, 370w POE, LAN Base feature set | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960+24PC-S | Standalone 24 10/100 RJ45 Ethernet ports and 2*GE SFP uplink ports, 370w POE, LAN Lite feature set | 30W PoE+; 6Kv surge protection; 4K VLANs |
CISCO | WS-C2960-24LC-S | Catalyst 2960 24 10/100 (8 PoE) + 2 T/SFP LAN Lite Image | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-24LT-L | Catalyst 2960 24 10/100 (8 PoE)+ 2 1000BT LAN Base Image | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-24PC-L | Catalyst 2960 24 10/100 PoE + 2 T/SFP LAN Base Image | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
CISCO | WS-C2960-24PC-S | Catalyst 2960 24 10/100 PoE + 2 T/SFP LAN Lite Image | 30W PoE+; 6Kv surge protection; 4K VLANs; 1K ACL rules |
Vendor | Product | Description | Huawei Advantages |
---|---|---|---|
HUAWEI | S2700-18TP-SI-AC | 16 FE RJ45, 2 GE Combo, AC 110/220V | |
HP/H3C | S3100V2-16TP-SI | HP JG222A 3100-16 v2 SI. L2FE Swith. 16 10/100Base-T Ports, and 2 GE Combo Ports. | 6Kv surge protection; Auto Configuration |
