VP9600 Series Universal Transcoding Videoconferencing Service Platform

Industry’s first MCU to provide 1080p60 full encoding and decoding capability for analog and digital media streams. Engineered for flexibility and scalability through ports configurable to support HD and CIF as well as ISDN and VoIP.

Advances in video processing, combined with dynamic bandwidth management and error-correction technologies make life-like video conferencing easier and more cost-effective than ever.

Seamless integration with Huawei multimedia videoconferencing systems, and with standards-based devices from other vendors, optimizes returns on UC&C investments and lets you include third parties into conferences easily and securely.

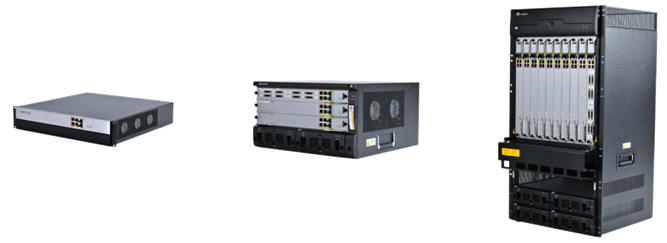

VP9600 MCU

Compare and Shop

Vendor Product Description Huawei Advantages
HUAWEI VP9660 The highest capacity 1080p60fps universal transcoding MCU, up to 192 ports at 1080p30fps-Enter the configuration interface to configure quantities of each item
POLYCOM RMX4000 Large networking application
Up to 128 x 1080P universal transcoding ports
2-level spare(Power/MCU) ;
Embedded Web
Integrated with Microsoft Lync/OCS
Large networking application
Up to 192 x 1080P universal transcoding ports
6-level hotspare(Power/Main Control board/Media board/Chip/intrerface/MCU) and 20% network packet loss resilience;
Embedded Web
Integrated with Microsoft Lync/OCS, IBM Sametime and Huawei eSpace systems

Vendor Product Description Huawei Advantages
HUAWEI VP9650 High capacity 1080p60fps universal transcoding MCU, up to 72 ports at 1080p30fps, embedded Web&GK-Enter the configuration interface to configure quantities of each item
POLYCOM RMX2000 Middle networking application
Up to 64 x 1080P universal transcoding ports
Embedded Web
Integrated with Microsoft Lync/OCS
Middle networking application
Up to 72 x 1080P universal transcoding ports
5-level hotspare(Power/Media board/Chip/intrerface/MCU) and 20% network packet loss resilience
Embedded GK & Web
Integrated with Microsoft Lync/OCS, IBM Sametime and Huawei eSpace systems

Vendor Product Description Huawei Advantages
HUAWEI VP9630 1080p60fps universal transcoding MCU, up to 24 ports at 1080p30fps, embedded Web&GK-Enter the configuration interface to configure quantities of each item
POLYCOM RMX1800 Small networking application
Up to 36 x 1080P universal transcoding ports;
Embedded Web
Integrated with Microsoft Lync/OCS
Small networking application
Up to 24 x 1080P universal transcoding ports
4-level hotspare(Power/Chip/intrerface/MCU) and 20% network packet loss resilience;
Embedded GK & Web
Integrated with Microsoft Lync/OCS, IBM Sametime and Huawei eSpace systems



Product Features

    • Universal transcoding and continuous presence on each port manages video quality and bandwidth utilization to optimize the experience for every participant
    • Intelligent Rate Control (IRC) and Superior Error Concealment (SEC) provide smooth HD video with the ability to conceal 20% packet loss
    • Ports are easily configurable: 1 x 1080p60 = 2 x 1080p30 = 4 x 720p = 8 x SD
    • Carrier-class hardware design with up to six backup mechanisms ensures stable and reliable operations; MTBF >100,000 hours; MTTR <30 minutes
    • Open, standards-based design and interfaces for interoperability with Unified Communications and Collaboration (UC&C) systems from other vendors; integrates easily with Huawei eSpace, Microsoft Lync 2010™, IBM SameTime™, and Skype™



Product Characteristics



High performance and universal transcoding bring an ultimate experience

The first MCU in the industry supporting 1080p60 universal transcoding provides an ultimate videoconferencing experience for participants
H.264 High Profile saves bandwidth by 50%
AAC-LD realizes CD-quality audio effect and three-channel brings sound localization
Intelligent transcoding for content sharing across different types of devices

High capacity, Standard-based, Scalable

Smooth scalable, high capacity
Support multilevel cascading, multichannel cascading and conference recording
Standard-based and open: Supports H.323, H.320, SIP, TIP and convergence conference of Telepresence, HD/SD endpoints, mobile devices and audio endpoints
Integrated with Huawei eSpace Microsoft Lync2010TM/OCS2007R2, IBM Sametime UC and Skype
SOAP-based API for integration with third-party systems
Maximize resource utilization and improves ROI by flexible resource allocation

Easy to Deploy and Use

Embedded GK, Web and role-based management
Multiple modes for firewall traversal, such as H.460, static NAT, video firewall option and SNPTM
Multiple Methods for conference initiation, such as HUAWEI SiteCallTM, Ad hoc, and web-based scheduling
Plenty of conference control functions, including Automatic Continuous Presence, Voice Activation, Chair control , DTMF Control, Audio/Video IVR, H.239 Content Sharing Token, and FECC

Secure, Reliable and Powerful QoS

H.264 SVC and SEC 3.0 ensure smooth videoconferences even if the packet loss is up to 20%
Dynamic jitter buffer up to 1000 ms ensures conference quality
IRCTM provides the best conference experience with low network bandwidth
Ensure conference data security via H.235 (AES256), SRTP/TLS(AES256), HTTPS and SSH
Multi-level hot spare



Product Specification

VP9630 VP9650 VP9660
Capacity

Flexible ports

Up to 12 HD 1080p60 ports in CP = 24 HD 1080p30 ports in CP = 48 HD 720p30 ports in CP = 96 4CIF ports in CP

VOIP port

Quantity same as that of 1080p30 ports

Flexible ports

Up to 36 HD 1080p60 ports in CP = 72 HD 1080p30 ports in CP = 144 HD 720p30 ports in CP = 288 4CIF ports in CP

VOIP port

Quantity same as that of 1080p30 ports

ISDN

Up to 64 PRI or 192 3BRI(384k) ISDN access

RSE-M

Up to 30 way 1080P60 recordings Up to 10 way 720P live streams Up to 2,000 viewers @ 256 Kbps 2T capacity(1T+1T hot backup)

Flexible ports

Up to 96 HD 1080p60 ports in CP = 192 HD 1080p30 ports in CP = 384 HD 720p30 ports in CP = 768 4CIF ports in CP

VOIP port

Quantity same as that of 1080p30 ports

ISDN

Up to 64 PRI or 256 3BRI(384k) ISDN access

RSE-M

Up to 30 way 1080P60 recordings Up to 10 way 720P live streams Up to 2,000 viewers @ 256 Kbps 2T capacity(1T+1T hot backup)

Dimension 86.1mm(H) × 442mm(W) × 450mm(D), 2U 219.5mm (H) × 436mm(W) × 420mm(D), 5U 886.2mm(H) × 436mm(W) × 420mm(D), 20U
Weight < 20Kg < 40Kg < 100Kg
Power

AC input: 100 ~ 240V 50/60HZ

Max power consumption: 400W

AC input: 100 ~ 240V 50/60HZ

DC input: -48 ~ -60V

Max power consumption: 1100W

AC input: 100 ~ 240V 50/60HZ

DC input: -48 ~ -60V

Max power consumption: 3000W

Hot spare MCU, power, network interface, chipset MCU, power, media board, network interface, chipset MCU, power, control board, media board, network interface, chipset
Video Standards and Protocols
ITU-T H.264, H.264 HP, H.264 SVC, H.263, H.263+, H.263++, H.261
ITU-T H.239, BFCP
People Video Resolution
Resolution QCIF, CIF, 4CIF, 288p, 360p, 720p, 1080p
Video Frame Rate 25fps, 30fps, 50fps, 60fps
16:9 and 4:3 aspect ratio
Content Video Resolution
Coding/Decoding resolution QCIF,QVGA, CIF, VGA, 4CIF, SVGA(800x600),XGA(1024x768), SXGA+(1600x1200), 288P(512x288), 360P(640x360), 396P(704x400), 720P,1080P
Decoding resolution WXGA, SXGA, XGA+,1920x1200
Content adaptation
Content does not occupy MCU's port
Audio Standards and Protocols
AAC-LD, AAC-LC, HWA-LD, G.722.1*, G.722.1C*, G.711, G.722, G.728, G.729A, G.729AB, G.719, iLBC
Three-channel
Other Supported Standards
H.221, H.225, H.235, H.242, H.243, H.245, H.281, H.283, H.460, TIP, FECC, RFC2833, DTMF, SRTP, TLS, T.140, NTP
Network
Standards and protocols ITU-T H.323, H.320(VP9660&VP9650 support), IETF SIP
Network standards IPv6/IPv4, TCP/IP, FTP/FTPS, RTP, RTCP, HTTP/HTTPS, SNMP, TELNET, SSH, DNS/DDNS
Bandwidth for one port 64Kbps~8Mbps
Network Interfaces GE, 1000 Mb, RJ45
FE, 100 Mb, RJ45
RS232, RJ45
SFP, Gigabit optical fiber interface
PRI E1 or T1: 75/120 ohm, SMB/RJ45
Line Types: IP, ISDN
Management Tools
Support SSH
Remote upgrade
Resource statistic
Hardware diagnosis
Support CDR (Call Detail Record)
Data export and import
Support Conference configuration template
Status monitor
IP QoS
DiffServ (DSCP), IP Precedence, ARQ
SECTM3.0 (Super Error Concealment )
IRCTM (Adaptability Intelligent rate control )
Auto adaptation enabling
Priority settings of QoS
SNP transversal between private and public networks
H.460/Static NAT transversal
Security
Conference password
HTTPS ensures the safety for Web accessing
H.235 (AES256)and SRTP/TLS(AES256) encryption
Approval and Compliance
CE, WEEE, RoHS, REACH, FCC, UL
Operating Environment
Operating temperature 0℃ ~ 45℃
Relative humidity 5% ~ 90% (Non - Condensing)
Air pressure 63 ~ 106KPa
Reliability MTBF >100,000 hours
MTTR < 0.5 hour
Highlights
Embedded Web, embedded GK(VP9650&VP9630 support)
Universal transcoding for Telepresence
CP on each port
Auto Continuous Presence
Flexible ports
48 modes of Continuous Presence
Ad hoc and Audio/Video IVR
HUAWEI SiteCallTM
Schedule conferences via Web(VP9650&VP9630 support) and Outlook
Email notification
URI dialing
Plenty of conference control functions
Chair control
Endpoint control via DTMF
Message overlay
Mute video
Support camera control
Support content lock
Support video source lock
Firewall traversal: H.460, static NAT, HUAWEI SNP, Video firewall option
Integrated with UC: Huawei eSpace, Microsoft Lync2010TM/OCS2007R2, and IBM Sametime
Intelligent negotiation: Best utilization of endpoint’s ability
Language: English, French, German, Spanish, Russian, Chinese, Japanese
Sales item Configuration Description
VP9660-8 Frame + power + fans+ ECCB(control board) + media board + 8 1080p30 port licenses Smooth scalable
VP9650-8 Frame + power + fans+ ECCA(with control board and media board integrated) + 8 1080p30 port licenses Smooth scalable
VP9630-8 Frame + power + fans+ ECCA(with control board and media board integrated) + 8 1080p30 port licenses Smooth scalable
Media Board Hardware resources: 24 ports at 1080p30 +24 audio ports Use with port license
ECCB Main control backup board without media processing capability Each VP9660 supports one ECCB board only
ISDN Board 64 PRI or 256 3BRI(384k) Only for VP9660 and VP9650, each MCU supports one board only
RSE-M Board 4 way dual streams recordings + 4 way 720p live streams + 500 way web viewers, can be scalable with license Only for VP9660 and VP9650, each MCU supports one board only
1 port License 1 1080p30 port license+ 1 audio port license Need hardware resources, and possibly need to purchase Media Board
4 ports License 4 1080p30 ports license+ 4 audio ports license Need hardware resources, and possibly need to purchase Media Board

Note:

VP9660-8, the basic model can be scalable to seven Media boards, one ECCB board and one ISDN board

VP9650-8, the basic model has 2 more slots to be scalable

1 port at 1080p60 = 2 ports at 1080p30 = 4 ports at 720p30 = 8 ports at 4CIF
