Huawei IP PBX U1960

The eSpace U1960 is designed especially for medium-sized businesses and branch offices of larger enterprise. As a core component of the Huawei eSpace UC solution, it provides professional IP telephony services for a maximum of 1,000 enterprise users. It is a highly reliable IP PBX that provides a flexible, economical, and easy-to-administer call system for highly efficient communications.

Compare and Shop

Vendor Product Description Huawei Advantages
HUAWEI eSpace U1960 U1960 Integrated Host, provide 1 SCU,1 MTU, 1 power, including 30 concurrent voice conference participants license.
CISCO ISR2951 Support 150 users and local survival (250).
500 voice mailboxes, concurrent 32 (SRE-700).
Maximum support 64 FXS / 40 FXO / 24BRI.
Single maximum support 1000 users, the integration of highly integrated gateways, support outgoing PSTN and analog terminal access, support key board backup and dual-standby, up to 192 FXS / 60 FXO / 28 E1 / 24 BRI.
CISCO ISR3925 Support 250 users and local survival (730).
500 voice mailboxes, concurrent 32 (SRE-700).
Maximum support 64 FXS / 40 FXO / 24BRI.
Single maximum support 1000 users, the integration of highly integrated gateways, support outgoing PSTN and analog terminal access, support key board backup and dual-standby, up to 192 FXS / 60 FXO / 28 E1 / 24 BRI.
CISCO ISR3925E Support 400 users and local survival (1350).
500 voice mailboxes, concurrent 32 (SRE-700).
Maximum support 60 FXS / 36 FXO / 32BRI.
Single maximum support 1000 users, the integration of highly integrated gateways, support outgoing PSTN and analog terminal access, support key board backup and dual-standby, up to 192 FXS / 60 FXO / 28 E1 / 24 BRI.
CISCO ISR3945 Support 350 users and local survival (1200).
500 voice mailboxes, concurrent 32 (SRE-700).
Maximum support 112 FXS / 64 FXO / 40BRI.
Single maximum support 1000 users, the integration of highly integrated gateways, support outgoing PSTN and analog terminal access, support key board backup and dual-standby, up to 192 FXS / 60 FXO / 28 E1 / 24 BRI.
CISCO ISR3945E Support 450 users and local survival (1500).
500 voice mailboxes, concurrent 32 (SRE-700).
Maximum support 108 FXS / 60 FXO / 38BRI.
Single maximum support 1000 users, the integration of highly integrated gateways, support outgoing PSTN and analog terminal access, support key board backup and dual-standby, up to 192 FXS / 60 FXO / 28 E1 / 24 BRI.

Product Features

A Highly Efficient Communication System

Built-in high-fidelity voice conferencing applications that support diverse conference modes. Support for the ONLY (One Number Link You) service, ensuring that important calls will ring to a variety of user-chosen devices, and can be answered from any place and at any time. Built-in voice mailbox that lets callers record messages for unavailable users.

Enhanced Enterprise Image, Without Extra Costs

An embedded automatic switchboard enables enterprises to provide better communication services, without hiring additional workers.

Effective Control Mechanisms to Reduce Communication Costs

Number analysis and blacklist/whitelist services for controlling incoming and outgoing calls.
Multi-level control rights (32 levels) for more tailored security and risk management.
Password-based call restriction services help enterprises control call fees effectively.
Intelligent routing reduces enterprises' communication costs.

Flexible Deployment and Simplified Maintenance

GUI-based deployment tools can be used to deploy the device in an hour or less. Unified network management helps improve maintenance efficiency. Web-based management portal simplifies operation and maintenance.

Product Specification

Item

Specifications

Maximum number of users

1,000(a maximum of 192 FXS ports for analog users or 1,000 SIP users)

Terminal type

Analog phones, IP phones, video phones and soft clients

Port

72 FXO ports or 14 E1/T1 ports

Trunk protocol

E1/PRI, E1/QSIG, E1/SS7, E1/R2, T1/PRI, T1/QSIG, SIP

Codec

G.711A/μ, G.729a/b/ab, iLBC, G.722/G.722.1/G.722.2

Number of meeting participants

A maximum of 360 meeting participants which can be allocated to 120 meeting halls (each hall can support up to 60 participants by maximum)

Built-in voice mail

30 channels concurrently

Power supply

AC: 100 V to 240 V, 50 Hz/60 Hz
DC: –38.4 V to –60 V (typical value: –48 V)
Redundancy: 1+1 backup

Maximum power consumption

220 W (full configuration)

Dimensions (H x W x D)

Standard 19-inch 2 U subrack 86.1 mm x 442 mm x 310 mm

Weight

10 kg (full configuration)

Environment

Temperature

Storage temperature: –40° C to +70° C
Long-term operating temperature: 0° C to 45° C
Short-term operating temperature: –5° C to +55° C

Relative humidity

5% to 95% (without condensation)

Dustproof

Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment)

System Reliability

99.995%

Maintainability

Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST)

Manageability

Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment


Application Scenarios

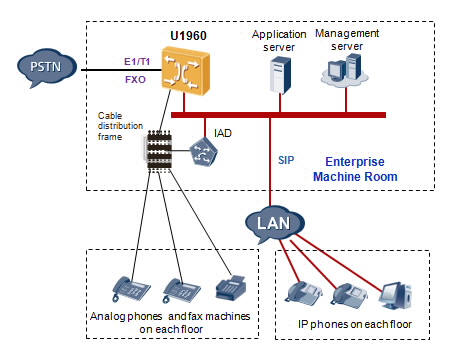

The eSpace U1960 is usually deployed at the enterprise headquarters to connect to PSTN. It supports to access from various terminals, including SIP phones, analog phones, IADs, and fax machines, providing feature-rich voice services. Application and management servers are deployed to enable the eSpace U1960 to implement diverse UC services. The following network topology is typical of medium-sized enterprises without branches.

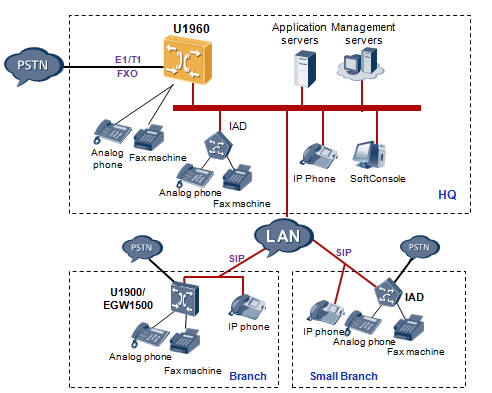

The eSpace U1960 is deployed at the headquarters of an enterprise to provide call control services for all enterprise users. The eSpace U1900 or eSpace EGW1500 series gateway is deployed at branch nodes to function as the local VoIP gateway, providing local regeneration capabilities. The following network topology is applicable to enterprises that have multiple branches and higher reliability requirements.
