RSE6500 1080p60 Recording and Streaming Engine



High-performance, full-HD recording and streaming engine supporting live video multicast and mobile Video-on-Demand (VoD). Supports 1080p60 live streaming for up to 2,000 viewers, with large storage capacity and multiple backup mechanisms.

Integrates seamlessly with Huawei’s single-screen and 3-screen HD video conferencing solutions for streaming and recording; open APIs for easy integration with IPTV and 3rd-party streaming media systems.

Supports live and on-demand streaming formats, multiple picture-in-picture options, and user-friendly content indexing, searching, and queuing features with thumbnail preview.



RSE6500 Recording and Streaming Engine

Compare and Shop

Vendor Product Description Huawei Advantages
HUAWEI RSE6500 The World's First Large-capacity 1080p60
Recording and Streaming Engine
POLYCOM CAPTURE SERVER 2-level backup(power supply, hard disk)
Up to 18@720P recordings and 9@720P live streams and 200@ VoD
3-level backup(power supply, hard disk and chip backup);
Up to 30@1080P60 recordings and 5@1080p60 live streams and 2000@ VoD
Mobile WEB play based on HTML5, no plug-ins required
Local recording, network recording and third-party streaming media integration



Product Features

    • Versatile HD recording and streaming media processor with open SOAP-based APIs for integration with 3 rd-party streaming media applications, FTP and TS transmission, and storage support
    • Large scale, 30-channel 1080p60 recording and 2,000 channel concurrent on-demand playback; also supporting 1080p30, 720p60, 720p30, 4CIF, and CIF
    • Supports local and network recording and live broadcasting; convenient web-based access based on HTML5 supports mobile playback without plug-ins
    • Three backup mechanisms for high reliability — power supply, hard disk, and chipset
    • Secure encryption: HTTPS, H.235, TLS/SRTP



Product Characteristics



Powerful Capabilities with 1080p60 recording, live and VoD

Single point, Point-to-Point (P2P), multi-point real-time recording, live streaming and VoD
Supports up to 30 1080p60 recordings, 20 HD live streams, and 2,000 Web viewers
Three-screen telepresence panoramic recording and playback
Up to 64 RSE6500 for extended capabilities
Offline transcoding
Standard MP4 recording for playback on mainstream players

Mobile VoD, anytime, anywhere

Mobile WEB play based on HTML5 - no plug-ins required
HD and Standard Definition (SD) streaming for PCs, mobile phones, or tablets
Live streaming and VoD playback at the video conferencing endpoint
Quick index to video sources through grouping and labeling

High stability and reliability with multi-level backups

Three-level backup with hard disk, power, and codec chip
RAID1 function to ensure reliability of recorded files
Dump, export, and upload recorded files through IP SAN and Network File System (NFS) to back up data and enhance data security
Standard encryption with HTTPS, H.235, and TLS/SRTP

Multiple recording applications and third-party integration

Local and network recording
Simple Object Access Protocol (SOAP) API interfaces for integration with third-party applications
Standard Transport Stream (TS) and FTP interfaces for integration with third-party streaming media platform

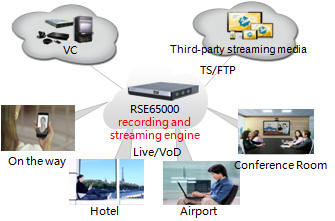

Deployment Scenario

RSE6500 Deployment

Product Specification

Capacity
Sub-model RSE6500-M RSE6500-L
Maximum recording capability 30 × 1080p60/1080p30/720p60/720p30 recordings (Dual stream)
Maximum live capability 10 × 720p30 /5 × 1080p30 / 2 × 1080p60 live streams 20 × 720p30 /10 × 1080p30 / 5 × 1080p60 live streams
Maximum VoD capability 2,000 viewers @ 256 Kbps; 1,000 viewers @ 512 Kbps; 512 viewers @ 1 Mbps; 256 viewers @ 2 Mbps
Storage capacity 2T, 4,000-hour recordings @ 512 Kbps
Protocols and Standards
Standards and protocols ITU-T H.323, IETF SIP
Video standards and protocols H.264 BP, H.264 HP, H.263, H.263+, H.263++
Audio standards and protocols AAC-LD, AAC-LC,G.711a,G.711u,G.722,iLBC
Dual stream standards H.239, BFCP
Network transmission protocols IPV6/IPV4,TCP/IP, FTP/FTPS, HLS, RTP, RTCP, HTTP/HTTPS, SNMP, TELNET, SSH, DNS/DDNS
Other protocols and standards H.221, H.225, H.235, H.242, H.243, H.245, SRTP, TLS, NTP, RAID1, IP SAN, NFS
Recording
Recording Uni-stream and dual-stream recording
Recording of three-screen Telepresence
Video format 1080p60, 1080p30, 720p60, 720p30, 4CIF, CIF
File storage format MP4
Bandwidth 128 Kbps to 8 Mbps
Recorded file management Offline transcoding
Dump, export, and upload recorded files
Ability to record PPT files or conference agendas
Audio IVR for reminding
Live Streaming/VoD
Browser PC: IE8+, Firefox19+, Chrome25+
MAC and IOS: Safari 5+
Android: Android 2.3+
Video format 1080p60, 1080p30, 720p60, 720p30, 4CIF, CIF
Play mode Web, standard video conferencing endpoint
Live streaming—unicast and multicast
On-demand streaming (unicast)
Play offline after downloading
Play feature Search, preview, and play recorded content via Web interface
Quickly search video sources through video grouping and labeling
Video pause, drag, and PPT content searching while playing on-demand video via Web
Multiple playing layouts
Service Features
Network storage expansion IP SAN, NAS
User authentification Login confirmation of LDAP/AD user to simplify user and group management
Third-party integration SOAP-based open API interface, transmission interface based on TS stream and FTP
Language English, French, German, Spanish, Russian, Simplified Chinese, and Traditional Chinese
Interfaces, Reliability, and Maintenance
Network interfaces 1000 Base-T,RJ-45
SFP, Gigabit optical fiber interface
Multiple user tiered permission Multiple user tiered permission management based on video grouping and user grouping
Storage safety RAID1 function to ensure reliability of recorded files
Encryption HTTPS, H.235, TLS/SRTP
Reliability Power, hard disk, and chip backup
Network adaptability SEC3.0 ultra-powerful error-correction technology Acoustic PLC anti-packet-loss technology
Maintenance and management Remote upgrade via Web
Resource statistics: user hits, CPU occupation rate, memory usage ratio, etc.
Hardware status diagnosis, error status alarm
Physical Features
Operating temperature 0℃ to 45℃
Relative humidity 5% to 90% (non-condensing)
Air pressure 55 kPa to 10 6kPa
Dimension

Net: 86.1 mm (H) x 442 mm (W) x 450 mm (D), 2U

Package: 260 mm (H) x 580 mm (W) x 780 mm (D)

Weight

Net weight: 16 kg

Package Weight: 21 kg

AC input  100V to 240V @ 5060 HZ
Power consumption < 200W
MTBF > 100,000 hours
MTTR < 0.5 hour
Certification CE, RoHS, WEEE, REACH, UL, CCC, FCC, VCCI, C-Tick, IC, Multi-Country certificate
