Huawei RP100-46S/55S, RP200-46S/55S

RP Series Telepresence Systems turn a small to medium-sized office or conference room into a video conferencing facility with 1 or 2 HD displays. Fixed stand or portable units with built-in 1080p HD codec, HD camera, and microphone combine flexible screen attributes with easy-to-use features.

Remote control and optional Android-based touch panel provide user-friendly graphical interfaces; voice dialing lets you join a conference by speaking its name.

Available with 47-inch, 48-inch, or 55-inch displays, RP models incorporate advanced video processing and error-correction technologies for a smooth, lifelike experience with network speeds as low as 512 Kbit/s.

Product Features

  • Next-Generation Technology for Superior HD Experience at Lower Bandwidth
    • Supports Video Motion Enhancement (VME) and H.264 HP; saves 50% of bandwidth.
    • Proprietary VME combined with intelligent face recognition and video image processing helps RP adapt to different lighting conditions, reduce bandwidth consumption, and enhance video quality.
  • Ease of Use
    • With an innovative and well organized GUI (Graphical User Interface), HUAWEI Room Presence series enable users to operate the system easily and efficiently.
  • Voice Dialing
    • RP recognize multiple languages. You can call or join a conference by saying the name of the scheduled conference or the site name.
  • Outstanding Network Adaptability and Security Mechanism
    • Patented Super Error Concealment (SEC) ensures high-quality video experience even with packet loss of 20 percent.
    • Supports H.264 SVC to adapt to different bandwidths, device capabilities, and network requirements.
    • Standard H.460 and proprietary SNP technology guarantee secure firewall traversal.
    • H.235 media stream and signaling encryption; SRTP, TLS, and HTTPS encryption.
  • Flexible Options
    • Multi size (55”, 46”) displays for selection.
    • Single and Dual displays for selection.
    • Flexible deployment: pedestal stand or pedestal stand with wheels.



Product Specification

Specifications

RP100-46S & RP200-46S

RP100-55S & RP200-55S

RP100-46A & RP200-46A

RP100-55A & RP200-55A

Components

HD display, 1080p codec, 1080p camera, microphone, and remote control

Codec

1080p30 codec

1080p60 codec

Camera

1080p HD camera

VPC600

Microphone

VPM220

Video standards and protocols

H.263, H.263+, H.264 BP, H.264 HP, and H.264 SVC

Video resolution

Dual 720p 30 fps or 1080p 30f ps+1080p 5 fps

Dual 1080p 60 fps

Audio standards and protocols

G.711, G.722, G.728, G.722.1*, G.722.1C*, AAC-LD, HWA-LD
*: G.722.1/G.722.1C, licensed from Polycom®

Dimensions

(H x W x D)

RP100-46S:

1645 (1795) mm x 1071 mm x 618 mm

RP200-46S:

1645 (1795) mm x 2142 mm x 618 mm

RP100-55S:

1741 (1891) mm x 1241 mm x 618 mm

RP200-55S:

1741 (1891) mm x 2482 mm x 618 mm

RP100-46A:

1645 (1795) mm x 1071 mm x 618 mm
RP200-46A:

1645 (1795) mm x 2142 mm x 618 mm

RP100-55A:

1741 (1891) mm x 1241 x 618 mm

RP200-55A:

1741 (1891) mm x 2482 mm x 618 mm

Weight

RP100-46S:

95.2 kg

RP200-46S:

118.2 kg

RP100-55S:

106.2 kg

RP200-55S:

138.2 kg

RP100-46A:

94.3 kg

RP200-46A:

112.4 kg

RP100-55A:

101.8 kg

RP200-55A:

125.4 kg

Power consumption

RP100-46S: 145 W

RP200-46S: 230 W

RP100-55S:

160 W

RP200-55S:

260 W

RP100-46A:

145 W

RP200-46A:

230 W

RP100-55A:

160 W

RP200-55A:

260 W


System Components

HD Codec, HD camera and VPM220, display and remote control

Optional:  10-inch touch panel, Embedded MCU license

Display: RP-S: 48-inch or 55-inch HD display; RP-A: 47-inch or 55-inch HD display

Standard & Protocols
Standards and Protocols ITU-T H.323, IETF SIP
Video Standards & Protocols H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV
Audio Standards & Protocols G.711, G.722, G.728, G.722.1*, G.722.1C*, AAC-LD, HWA-LD, G.719, and G.729A
Dual Stream ITU-T H.239, BFCP
Other Standards H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, and T.140
Network Standards & Protocols TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS, PPPoE, RTP, RTCP, SNTP, 802.1X, 802.1P, and 802.1Q
Bandwidth requirements
Frame Minimum Recommended
720p30 384 kbit/s 768 kbit/s
720p60 512 kbit/s
1 Mbit/s
1080p30 512 kbit/s
1 Mbit/s
1080p60 1 Mbit/s
2 Mbit/s
Video Specifications and Features
People Video Resolution 1080p (50/60 fps) (RP-A), 1080p (25/30 fps), 720p (50/60 fps), 720p (25/30 fps)
Content Video Resolutions

Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 50/60/72/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p @ 60/75/85 fps, 1080p @ 60 fps, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920 x 1,200 @ 60 fps

Coding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080; RP-A: 1,600 x 1,200, 1,920 x 1,200 Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080; RP-A: 1,600 x 1,200, 1,920 x 1,200

Dual Stream

RP-A: Dual 1080p @ 60 fps

RP-S: Dual 720p @ 30 fps or 1080p @ 30 fps + 1080p @ 5 fps

1080p HD Camera

Lens(RP-A): 2.38-megapixel and 1/2.8-inch CMOS imaging chip

Lens(RP-S): 2-megapixel and 1/3-inch CMOS imaging chip

Zoom: 12x optical

Maximum horizontal angle: 72°horizontal field of view

Panning/Tilting angle: +/-30° tilt, +/- 100° pan

Automatic White Balance (AWB), Automatic Exposure (AE),

Automatic Focus (AF) Far-end camera control

Other Video Features

Intelligent Face Detection

Picture-in-Picture

Picture-outside-Picture

Video Motion Enhancement (VME)

Video Intensifier

View Processing

Audio Specifications and Features
Audio features

Dual-channel AAC-LD Stereo

Acoustic Echo Cancellation (AEC)

Acoustic Noise Suppression (ANS) 12 dB

Automatic Gain Control (AGC) ±6 dB

Voice Clear, Audio Enhancer

Lip synchronization

Security and Stability
Network

Super Error Concealment (SEC), Intelligent Rate Control (IRC)

Automatic Repeat-reQuest (ARQ), Forward Error Correction (FEC), and PLC

Security

H.235 signaling and media stream encryption

AES media stream encryption, dual-stream encryption

TLS and SRTP for SIP signaling and media stream encryption

Conference access password, conference control password

Administrator password, SSH/HTTPS

Firewall Traversal H.460.18, H.460.19 firewall traversal, Static NAT, and SNP
Bandwidth
IP

RP-S:64 kbit/s to 4 Mbit/s

RP-A:64 kbit/s to 8 Mbit/s

Application Features
Languages (Remote control) Simplified Chinese, Traditional Chinese, English, German, Spanish, French, Norwegian, Italian, Polish, Russian, Portuguese, Hungarian, Finnish, Romanian, Czech, Swedish, Arabic, Turkish, and Greek
Languages (Touch panel) Simplified Chinese, Traditional Chinese, English, Spanish, French, Portuguese, Arabic, Thai, Russian, and Japanese
Special Features

Voice Dialing in English and Chinese

USB auto data configuration

Integration with Microsoft Lync2010TM and OCS2007R2

Hybrid with IMS network

IPv6

Wireless Wi-Fi access

Air content sharing

SiteCall

Lock Site/Conference

Web-based conference management

Web-based image monitoring and HD picture snapshot

16:9 and 4:3 mixed display

Picture-in-picture: 1/16 picture size, optional position

Split output: Bi-screen and tri-screen display

LDAP/Network address book

API for integration

Digital Captions

Caption banner, body text, and information bar

Rolling display mode of the speech draft

Modifiable front background color, caption size, and transparency

64 optional colors

Editable caption and auto zone adjustment

Caption rolling mode setting

Site name display and position shift

Text input through remote control

External character generator

Powerful caption SMS function

Maintenance Management
Maintenance Methods

Remote control: 3D Effects & GUI Animation

Endpoints Network Management: SNMP

Embedded Web server, GUI interface

Command line mode: Telnet/SSH

Maintenance Functions

Endpoint IP and number are displayed on the front panel

Auto sleep, wake-up by remote control or remote module

Event log record, query, display, and export query results

IP network test, default settings restoration

Local and remote loopback

Test signals: providing sound test and standard test stripes

Physical Characteristics
Dimensions (H x W x D)

RP200-55S: 1,741 (1,891) x 2,482 x 618 mm

RP200-46S: 1,645 (1,795) x 2,142 x 618 mm

RP100-55S: 1,741 (1,891) x 1,241 x 618 mm

RP100-46S: 1,645 (1,795) x 1,071 x 618 mm

RP200-55A: 1,741 (1,891) x 2,482 x 618 mm

RP200-46A: 1,645 (1,795) x 2,142 x 618 mm

RP100-55A: 1,741 (1,891) x 1,241 x 618 mm

RP100-46A: 1,645 (1,795) x 1,071 x 618 mm

Weight

RP200-55S: 138.2 kg; RP200-46S: 118.2 kg

RP100-55S: 106.2 kg; RP100-46S: 95.2 kg

RP200-55A: 125.4 kg; RP200-46A: 112.4 kg

RP100-55A: 101.8 kg; RP100-46A: 94.3 kg

Power Supply & Power Consumption

Working voltage: 100V to 240V AC

Working frequency: 50 Hz to 60 Hz

Power consumption:

RP200-55S: 260W; RP200-46S: 230W

RP100-55S: 160W; RP100-46S: 145W

RP200-55A: 260W; RP200-46A: 230W

RP100-55A: 160W; RP100-46A: 145W

Environmental Specifications

Operating Temperature: 32ºF to 95ºF (0ºC to 35ºC)

Operating Humidity: 20% to 80%

Peripheral noise: < 46 dBA SPL

Lowest luminance: 7 lux

Recommended luminance: > 300 lux

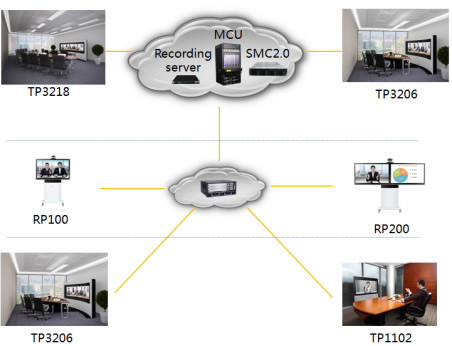

Application
