Huawei TE30 Video Conference End Point

HUAWEI TE30 is an all-in-one HD videoconferencing system with unique voice dialing and Wi-Fi access. Its
compact appearance and simplified installation make it an ideal choice for small- and medium-sized conference
rooms. Huawei’s TE30 Leads a New Era of Enterprise Video Conferencing:

  • Compact design, sleek appearance
  • Highly integrated, Wi-Fi access, fast installation
  • Voice dialing, easy to use Intelligent network adaptability
  • Lower bandwidth, smaller investment
  • The first all-in-one HD videoconferencing system with wireless connection and effortless deployment in 5 minutes.
  • The first all-in-one HD videoconferencing system with wireless connection and effortless deployment in 5 minutes.
  • Low bandwidth requirement: [email protected], and 20% of anti-packet-loss rate saves the bandwidth by 50%

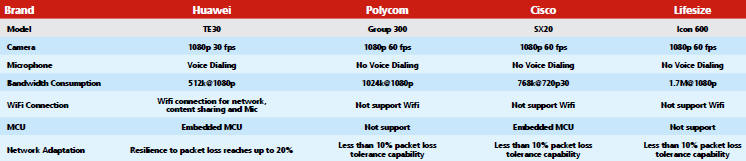

Compare and Shop

Video Conference, HUawei TE30, Polycom Group 300, Cisco SX20, Lifesizw Icon600

Product Features

Elegant all-in-one design, easy to deploy and install

TE30 is a compact system with built-in HD codec, camera, and microphone array.
It takes just 1 cable and 5 minutes from unpacking to joining a video conference.
Smart design enables TE30 to be wall-mounted, placed on a TV set, or ceiling-mounted with inverted installation

Voice Dialing

TE30 recognizes multiple languages. You can call or join a conference by saying the name of the scheduled conference or the site name.

Wi-Fi Access

Built-in Wi-Fi enables TE30 to support wireless network, microphone.

User-Friendly Interface and Remote-Control Design

Innovative 3D GUI, convenient to use and maintain.
Wizard for first-time installation.
LCD display for real-time local site information.

Next-Generation Technology for Superior HD Experience at Lower Bandwidth

Supports Video Motion Enhancement (VME) and H.264 HP; saves 50% of bandwidth.
Proprietary VME combined with intelligent face recognition and video image processing helps TE30 adapt to different lighting conditions, reduce bandwidth consumption, and enhance video quality.
Built-in microphone with sound pickup radius up to 6 m.

Outstanding Network Adaptability and Security Mechanism

Patented Super Error Concealment (SEC) ensures high-quality video experience even with packet loss of 20 percent.
Supports H.264 SVC to adapt to different bandwidths, device capabilities, and network requirements.
Standard H.460 and proprietary SNP technology guarantee secure firewall traversal.
H.235 media stream and signaling encryption; SRTP, TLS, and HTTPS encryption.

Extensive System Integration

Inter-operable with standard endpoints and infrastructures.
Integration with Microsoft Lync2010™ and OCS2007R2
Seamless integration with IMS.
Plentiful third-party APIs for system integration and customization.

Product Specification

Model

HUAWEI TE30

Packet includes

HD Codec, built-in camera and Omni-array Microphone, cables and remote control
Optional: HUAWEI VPM220

Standard & Protocols

Standards and Protocols

ITU-T H.323, IETF SIP

Video Standards & Protocols

H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC

Audio Standards & Protocols

G.711, G.722, G.728, G.722.1*, G.722.1C*, AAC-LD, HWA-LD

Dual Stream

ITU-T H.239, SIP

Other Standards

H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140

Network Standards & Protocols

TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS, PPPoE, RTP, RTCP, SNTP

Video Specifications and Features

People Video Resolution

1080p @ 30fps from 512 kbps (Optional)
720p @ 50/60fps from 512 kbps (Optional)
720p @ 25/30fps from 384 kbps
4SIF/4CIF from 128 kbps
SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 kbps

Content Video Resolution

Input: VGA (640×480) @ 60/72/75/85 fps, SVGA (800×600) 56/60/72/75/85 @ fps, XGA (1024×768) @ 60/70/75/85 fps, 1152×864 @ 60/75/85 fps, 1280×600 @ 60 fps, WXGA (1280×768) @ 60/75/85 fps, WXGA (1280×800) @ 60/75/85 fps, 1280×960 @ 60/75/85 fps, SXGA (1280×1024) @ 50/60/72/75/85 fps, 1360×768 @ 60 fps, 1366×768 @ 60 fps, 1440×900 @ 60 fps, XGA+ (1400×1050) @ 60 fps, 720p @ 60/75/85 fps, 1080p @ 60 fps, 1600×900 @ 60 fps, 1600×1200 @ 60 fps, 1680×1050 @ 60 fps, 1920 ×1200 @ 60 fps
Coding/Decoding resolution: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080

Dual Stream

Dual 1080p (Optional); Dual 720p @ 30 fps

1080p HD Camera

Built-in camera
Video output pixels: 1080p @ 50/60 fps
Lens: 2-megapixel and 1/3-inch CMOS imaging chip
Zoom: 12x optical
Maximum horizontal angle: 72°horizontal field of view
Panning/Tilting angle: +/-30° tilt, +/- 100° pan
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)
Far-end camera control
Upside-down mounting with automatic flipping of picture

Other Video Features

Intelligent Face Detection
Picture in Picture,Picture outside Picture
VME (Video Motion Enhancement)
Video Intensifier
View Processing

Audio Specifications and Features

Audio features

Dual-channel AAC-LD Stereo
HWA-LD Stereo : Huawei Audio Broadband Low Delay Stereo
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS) 12 dB
Automatic Gain Control (AGC) ±6 dB
Voice Clear, Audio Enhancer
Lip synchronization

Security and Stability

Network

Super Error Concealment (SEC), Intelligent Rate Control (IRC)
Automatic Repeat-reQuest (ARQ), Forward Error Correction (FEC), PLC

Security

H.235 signaling and media stream encryption
AES media stream encryption, dual-stream encryption
TLS and SRTP for SIP signaling and media stream encryption
Conference access password, conference control password
Administrator password, SSH/HTTPS

Firewall Traversal

H.460.18, H.460.19 firewall traversal, Static NAT, SNP

Bandwidth

IP

64 kbps/s to 4 Mbps/s

Interfaces

Audio Inputs

1×3.5 mm line-in jack, 1×HD-AI (stereo, connects to microphone array )

Audio Outputs

1×3.5 mm line-out jack, 1×HDMI

Video Inputs

1 ×VGA, 1×Built-in Camera

Video Outputs

1×VGA/YPbPr, 1×HDMI

USB Interfaces

1×USB 2.0 Host

Network Interfaces

IP: 10/100 Base-T, 1×RJ45
Wireless: Built-in Wi-Fi

Application Features

Languages

Simplified Chinese, Traditional Chinese, English, German, Spanish, French, Norwegian, Italian, Polish, Russian, Portuguese, Hungarian, Finnish, Romanian, Czech, Swedish, Arabic, Turkish, Greek

Special Features

Voice Dialing in English and Chinese
Installation from a USB disk, Plug and play
Integration with Microsoft Lync2010™ and OCS2007R2
Hybrid with IMS network
IPv6
Wi-Fi
Upside-down mounting
SiteCall (HD dual-stream)
Lock Site/Conference
Web-based conference management
Web-based image monitoring and HD picture snapshot
16:9 and 4:3 mixed display
Picture-in-picture: 1/16 picture size, optional position
Split output: Bi-screen and tri-screen display
LDAP/Network address book
API for integration

Digital Caption

Caption banner, body text and information bar
Rolling display mode of the speech draft
Modifiable front background color, caption size and transparency
64 optional colors
Editable caption and auto zone adjustment
Caption rolling mode setting
Site name display and position shift
Text input through remote control
External character generator
Powerful caption SMS function

Optional

Accessories

VPM220 Microphone array

Function Models

1080p @ 30 fps

Maintenance Management

Maintain Methods

Remote control: 3D Effects & GUI Animation
Endpoints Network Management: SNMP
Embedded Web server, GUI interface
Command line mode: Telnet/SSH

Maintain Functions

Endpoint IP and number are displayed on the front panel
Auto sleep, wake-up by remote control or remote module
Event log record, query, display and export query results
IP network test, default settings restoration
Local and remote loopback
Test signals: providing sound test and standard test stripes

Physical Characteristics

Dimensions

Codec dimensions (L×W×H): 235 mm×167 mm×157 mm
Package dimensions (L×W×H): 402 mm×232 mm×237 mm
Net weight: 2.1 kg
Package Weight: 3.3 kg

Electrical

Working voltage: 100–240 V AC 12 V DC
Working frequency: 50–60 Hz
Power consumption: 60 W

Environmental Specification

Operating Temperature: 0° C to 40º C
Operating Humidity: 10% to 80%
Non-Operating Temperature: -40º to -70º C
Non-Operating Humidity (Non-condensing): 0% to 95%
Peripheral noise: < 46 dBA SPL
Lowest luminance: 7 lux
Recommended luminance: > 300 lux

Approval and Compliance

CE, RoHS, WEEE, REACH, UL, FCC, CCC

*: G.722.1/G.722.1C, licensed from Polycom®.


Huawei TE30

HUAWEI TE30 is a cost-effective 3-in-1 HD videoconferencing endpoint; its compact appearance and simplified installation make it an ideal choice for small- and medium-sized conference rooms.

  • 3-in-1 design: codec, camera, microphone
  • H.264 HP 1080p 25/30fps(Optional), dual 1080p
  •  Patented SEC 3.0 + H.264 SVC: tolerates 20% packet loss
  • Voice dialing; 6-meter sound collection
  • IPV6/IPV4,Wi-Fi access, up to 4 Mbps/s

For more information, please refer to the Huawei Panovision Telepresence TP3200 Series Datasheet.
