Huawei Transmission

Click Here For Latest Huawei Optical Transmission Products

Increasing IT application of cloud computing, VoIP, video conference and Data Centre is changing enterprise networks. "Bandwidth anytime and bandwidth anywhere" means any customer could enjoy to access their own multimedia application center at any place without any bandwidth bottle neck. The demand of bandwidth expansion constantly grows in Energy/Government/Finance/Education/Enterprise field.

OSN 1800 I/II

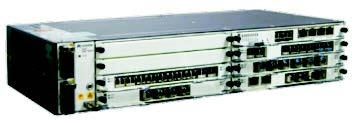

Huawei OSN 1800

OSN 1800 series are compact WDM/OTN devices. They innovatively expand the ITU-T G.709 OTN recommendation to cover all the service from 2M to 10G.

  • Number of Slots: 4/8
  • Access Capacity: 60G/120G
  • System Capacity: 40 λ DWDM, 8 λ CWDM
  • Service: 2M–10G full rates, including E1/T1, STM-1/4/16/64, OC-3/12/48/192, FE, GE, 10GE, FC100/200/400/800/1200, FICON, ESCON, DVB-ASI, HDTV, HD SDI, SD SDI, 3G SDI, EPON, GPON and CPRI 2/3/6/7

OSN 8800 T64/T32/T16

Huawei OSN 8800

OSN 8800 T64/T32 Intelligent Optical Transport Platform achieves dynamic optical layer grooming
and flexible electrical layer grooming. It is mainly applicable to the backbone core, metro core and
metro convergence layers.

  • Number of Slots: 64/32
  • Cross-Connect Capacity: 3.2T/6.4T ODUk (K=0, 1, 2, 2e, 3, 3e2, flex) & 1.28T VCx electrical
    switching
  • Interface: STM-1/4/16/64/256, OTU1/OTU2/OTU3, FE/GE/10GE/40GE/100GE,
    FC100/FC200/FC400/ FC1200, etc
  • Reach: Max. 350km(81dB)
  • PID: No amplifier(40km), no DCM(80km), no OSNR calculation; simple expansion of capacity
    (80G-120G-200G) and station
  • ASON: WSON ASON, OTN ASON

OSN 8800 T16 is Huawei metro OTN/ASON-based intelligent multiservice WDM platform which is
designed for network operators who require a flexible, cost-effective system that will multiplex,
transport and switch high-speed data, storage, video, and voice applications.

  • Number of Slots: 16 service slots, 18 optical slots
  • Cross-Connect Capacity: 640Gbit/s ODUk (K=0, 1, 2, 2e, 3, 3e2, flex) central XC, smooth upgrade
    to 1.6Tbit/s
  • Interface:STM-1/4/16/64/256, OTU1/OTU2/OTU3, FE/GE/10GE/40GE/100GE, FC100/FC200/FC400/
    FC1200, etc.
  • Reach: Max. 350km(81dB)
  • PID: No amplifier(40km), no DCM(80km), no OSNR calculation; simple expansion of capacity
    (80G-120G-200G) and station
  • ASON: WSON ASON, OTN ASON

OSN 8800 T16

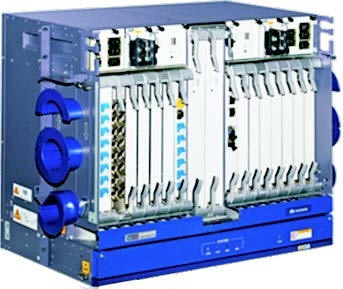

Huawei OSN 8800 T16

OSN 8800 T16 is Huawei metro OTN/ASON-based intelligent multiservice WDM platform which is
designed for network operators who require a flexible, cost-effective system that will multiplex,
transport and switch high-speed data, storage, video, and voice applications.

  • Number of Slots: 16 service slots, 18 optical slots
  • Cross-Connect Capacity: 640Gbit/s ODUk (K=0, 1, 2, 2e, 3, 3e2, flex) central XC, smooth upgrade
    to 1.6Tbit/s
  • Interface:STM-1/4/16/64/256, OTU1/OTU2/OTU3, FE/GE/10GE/40GE/100GE, FC100/FC200/FC400/
    FC1200, etc.
  • Reach: Max. 350km(81dB)
  • PID: No amplifier(40km), no DCM(80km), no OSNR calculation; simple expansion of capacity
    (80G-120G-200G) and station
  • ASON: WSON ASON, OTN ASON
