Huawei S5700 Series Gigabit Enterprise Switches

Designed for high-bandwidth access and Ethernet multi-service aggregation, the S5700 provides large switching capacity and high-density GE ports to accommodate 10Gbps upstream transmissions. The S5700 Series of switches are all highly scalable and flexible , and can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1Gbps terminal access.

Compare and Shop

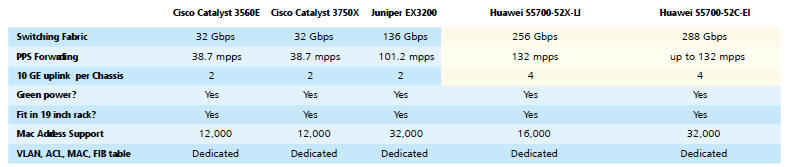

Huawei S5700, Cisco 3560E, 3750X, EX3200

Product Specification

Item

S5700(S)-LI/S5710-LI*

S5700-SI*

S5700-EI/S5710-EI*

S5700-HI/S5710-HI*

Fixed port

LI

S5700-10P-LI-AC/S5700-10P-PWR-LI-AC: 8*10/100/1000Base-T2*1000Base-X SFP

\S5700(S)-28P-LI/S5700-28P-PWR-LI: 24*10/100/1000Base-T, 4*1000Base-X SFP

S5700-28TP-LI-AC/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC:26*10/100/1000Base-T, 2 of which are dual-purpose 10/100/1000 or SFP, 2*1000Base-X

S5700-28X-LI/S5700-28X-PWR-LI-AC: 24*10/100/1000Base-T,

4*1000Base-X SFP. Or 24*10/100/1000Base-T, 4*10GE SFP

S5700-28X-LI-24S-AC/S5700-28X-LI-24S-DC: 24100/1000 Base-X,4 of which are dual-purpose 10/100/1000 or SFP

S5700(S)-52P-LI/S5700-52P-PWR-LI: 48*10/100/1000Base-T, 4*1000Base-X SFP

S5700-52X-LI/S5700-52X-PWR-LI-AC: 48*10/100/1000Base-T, 4*1000Base-X SFP. Or 48*10/100/1000Base-T, 4*10GE SFP+

S5710-28C-LI/S5710-28C-PWR-LI: 20*10/100/1000Base-T, 4*GE Combo

S5710-52C-LI/S5710-52C-PWR-LI: 48*10/100/1000Base-T

SI

S5700-24TP-SI/S5700-24TP-PWR-SI/S5700-28C-SI/S5700-28C-PWR-SI:

20*10/100/1000Base-T, 4*GE Combo

S5700-26X-SI-12S-AC: 12*10/100/1000 BASE-T12*100/1000Base-X2*10 GE SFP+

S5700-48TP-SI/S5700-48TP-PWR-SI: 44*10/100/1000Base-T, 4*GE Combo

S5700-52C-SI/S5700-52C-PWR-SI: 48*10/100/1000Base-T

EI

S5700-28C-EI/S5700-28C-PWR-EI: 24*10/100/1000Base-T

S5700-52C-EI/S5700-52C-PWR-EI: 48*10/100/1000Base-T

S5700-28C-EI-24S: 20*100/1000Base-X, 4*GE Combo

S5710-28C-EI/S5710-28C-PWR-EI-AC: 20*10/100/1000Base-T, 4*GE Combo, 4*10GE SFP +

S5710-52C-EI/S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC: 48*10/100/1000Base-T, 4*10GE SFP +

HI

S5700-28C-HI: 24*10/100/1000Base-T

S5700-28C-HI-24S: 24*100/1000Base-X

S5710-108C-PWR-HI: 48*10/100/1000BASE-T, 8*10GE SFP+

Extended slot

The S5700TP provides an extended slot for a stack card

S5700C Provide two extended slots, one for an uplink subcard and the other for a stack card.

S5710C Provide two extended slots for uplink subcards.

S5700-HI provides an extended slot for an uplink subcard

S5710-108C-PWR-HI: Three front extended slots and one rear extended slot

MAC address table

16K MAC address entries (S5700S-LI: 8K MAC )

32K MAC address entries

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN

4K VLANs

Guest VLAN and voice VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN(except S5700(S)-LI)

Reliability

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

E-Trunk(except S5700(S)-LI)

NA

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

MPLS features

NA

MPLS VPLS

MPLS VLL

IP routing

Static routing, ECMP(except S5700(S)-LI)

NA

RIPv1, RIPv2 and RIPng

NA

OSPF, OSPF v3, IS-IS, IS-ISv6, BGP and BGP 4+

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(except S5700(S)-LI)

multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

NA

IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5700(10)-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

OAM

Supports

S5700-HI Hardware implementation

(S5710-HI Software OAM)

EFM OAM

CFM OAM

Y.1731 performance test supports hardware-level delay and jitter detection

Management and maintenance

Stacking (The S5710-HI and S5700S-LI does not support this function.)

MAC Forced Forwarding (MFF)

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

GVRP

MUX VLAN

802.3az EEE (supported by the S5700-LI and S5700-HI)

Dying gasp (supported by the S5700-LI)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

NA

sFlow

Operating environment

Operating temperature: 0–50

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 50/60 Hz

DC:

Rated voltage range: –48 V to –60 V, DC

Maximum voltage range: –36 V to –72 V DC

Note: PoE-support switches do not use DC power supplies.

Dimensions (W x D x H)

S5700-10P-LI-AC:250 mm x 180 mm x 43.6 mm

S5700-10P-PWR-LI-AC:320 mm x 220 mm x 43.6 mm

S5700-28P-LI/S5700-28TP-LI-AC/S5700-28X-LI/S5700-28X-LI-24S/S5700-24TP-SI/S5700-28C-HI/S5700-28C-HI-24S: 442 mm x 220 mm x 43.6 mm

S5700-28P-PWR-LI/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC/S5700-52P-LI/S5700-52P-PWR-LI/S5700-28X-PWR-LI-AC/S5700-52X-LI/S5700-52X-PWR-LI-AC/

S5700-26X-SI-12S-AC: 442 mm x 310 mm x 43.6 mm

S5710-108C-PWR-HI: 442x470.0x87.2

Others: 442 mm x 420 mm x 43.6 mm

Power consumption

S5700-10P-LI-AC<11.5W

S5700-24TP-SI<40W

S5700-28C-EI<60W

S5700-28C-HI<76W

S5700-10P-PWR-LI-AC<139W

S5700-26X-SI-12S-AC<42.3W

S5700-28C-EI-24S<63W

S5700-28C-HI-24S<80W

S5700-28P-LI<25W

S5700-48TP-SI<64W

S5700-52C-EI<88W

S5710-108C-PWR-HI<1680W

S5700S-28P-LI<25W

S5700-28C-SI<56W

S5710-28C-EI<100W

(PoE:1440W)

S5700-28TP-LI-AC<20W

S5700-52C-SI<78W

S5710-52C-EI<165W



S5700-28TP-PWR-LI-AC<426WPoE:370W)

S5700-24TP-PWR-SI<455W

S5700-28C-PWR-EI<842W



S5701-28TP-PWR-LI-AC<250WPoE:185W

(PoE: 370W) S5700-48TP-PWR-SI<907W

(PoE: 740W)



S5700-52P-LI<52W

(PoE: 740W) S5700-28C-PWR-SI<836W

S5700-52C-PWR-EI<930W



S5700S-52P-LI<52W

(PoE: 740W) S5700-52C-PWR-SI<917W

(PoE: 740W)



S5710-28C-LI<56W

(PoE: 740W)

S5710-28C-PWR-EI-AC<942W



S5710-52C-LI<78W



S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC:



S5700-28P-PWR-LI<765W



< 1043W with two 580W AC supplies(PoE:740W),



(PoE: 740W)



or <1625W with two 1150W AC supplies(PoE:1440W)



S5710-28C-PWR-LI<836W







(PoE: 740W)







S5700-52P-PWR-LI<792W







(PoE: 740W)







S5710-52C-PWR-LI<917W







(PoE: 740W)







S5700-28X-LI<42W







S5700-28X-LI-24S<54W







S5700-28X-PWR-LI-AC <420W







S5700-52X-LI<61W







S5700-52X-PWR-LI-AC <440







For more details, please refer to S5700 datasheets(ZIP).

Deployment Scenarios

On Large-sized Enterprise Networks

The S5700 can function as an access device on a large-sized enterprise network or an aggregation device on a small-or medium-sized campus network. It supports link aggregation and dual-homing to improve network reliability.

In Data Centers

The S5700 can be used in a data center. It connects to gigabit servers and aggregates traffic from the servers to uplink devices through trunk links. If multiple servers are available, an S5700 stack can be used to facilitate network maintenance and improve network reliability.

1000 Mbit/s Access Rate for Terminals

Battery LAN Switches

The S5700-LI-BAT uses an internal lithium battery as the backup power supply. When a mains power failure occurs, the lithium battery begins powering the switch. When the mains power supply recovers, the switch automatically charges the lithium battery. The use of internal batteries ensures high reliability at the access layer in the case of frequent mains power failures.


Huawei S5700 series switch

The S5700 is is available in a limited version (LI), a standard version (SI), an enhanced version (EI), and an advanced version (HI).
