Huawei S1700 Series Enterprise Switches

The S1700 series enterprise switches (S1700s) are next-generation, energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small- and medium-size enterprises, Internet cafes, hotels, and schools.
The S1700 consists of unmanaged switches, Web/SNMP-based switches, and a web-managed switch:
Unmanaged switches include the S1700-8-AC, S1700-24-AC, S1700-52R-2T2P-AC, S1700-8G-AC, S1724G, S1700-24GR, and S1700-16G.
Web/SNMP-based switches include the S1700-28FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52FR-2T2P-AC, S1700-52GFR-4P-AC, S1720-20GFR-4TP, and S1720-28GFR-4TP.
The web-managed switch is the S1728GWR-4P.

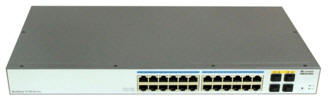

Product Appearance

Device Type Product Appearance Description
Unmanaged

S1700-*-AC front view

S1700-8-AC back view

S1700-8-AC

  • 8 Ethernet 10/100 ports
  • AC power supply
  • Forwarding performance: 1.2 Mpps
  • Switching Capacity: 1.6 Gbit/s

S1700-24-AC

S1700-24-AC

  • 24 Ethernet 10/100 ports
  • AC power supply
  • Forwarding performance: 3.6 Mpps
  • Switching Capacity: 4.8 Gbit/s

S1700-52R-2T2P-AC

S1700-52R-2T2P-AC

  • 48 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports and 2 Gig SFP
  • AC power supply
  • Forwarding performance: 13.2 Mpps
  • Switching Capacity: 17.6 Gbit/s

S1700-8G

S1700-8G-AC

  • 8 Ethernet 10/100/1,000 ports
  • AC power supply
  • Forwarding performance: 12 Mpps
  • Switching Capacity: 16 Gbit/s

S1724G

S1724G

  • 24 Ethernet 10/100/1,000 ports
  • AC power supply
  • Forwarding performance: 36 Mpps
  • Switching Capacity: 48 Gbit/s

S1700-24GR

S1700-24GR

  • 24 Ethernet 10/100/1,000 ports
  • AC power supply
  • Forwarding performance: 36 Mpps
  • Switching Capacity: 48 Gbit/s

S1700-16G

S1700-16G

  • 16 Ethernet 10/100/1,000 ports
  • AC power supply
  • Forwarding performance: 24 Mpps
  • Switching Capacity: 32 Gbit/s
Web-managed

S1728GWR-4P

S1728GWR-4P

  • 24 Ethernet 10/100/1,000 ports, 4 Gig SFP
  • AC power supply
  • Forwarding performance: 42 Mpps
  • Switching Capacity: 56 Gbit/s
Web/SNMP-based

S1700-28FR-2T2P-AC

S1700-28FR-2T2P-AC

  • 24 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports, and 2 Gig SFP
  • AC power supply
  • Forwarding performance: 9.6 Mpps
  • Switching Capacity: 12.8 Gbit/s

S1700-52FR-2T2P-AC

S1700-52FR-2T2P-AC

  • 48 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports, and 2 Gig SFP
  • AC power supply
  • Forwarding performance: 13.2 Mpps
  • Switching Capacity: 17.6 Gbit/s

S1700-28GFR-4P-AC

S1700-28GFR-4P-AC

  • 24 Ethernet 10/100/1,000 ports, 4 Gig SFP
  • AC power supply
  • Forwarding performance: 42 Mpps
  • Switching Capacity: 56 Gbit/s

S1700-52GFR-4P-AC

S1700-52GFR-4P-AC

  • 48 Ethernet 10/100/1,000 ports, 4 Gig SFP
  • AC power supply
  • Forwarding performance: 78 Mpps
  • Switching Capacity: 104 Gbit/s

S1720-20GFR-4TP

S1720-20GFR-4TP

  • 16 Ethernet 10/100/1,000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP
  • AC power supply
  • Forwarding performance: 30 Mpps
  • Switching Capacity: 128 Gbit/s

S1720-28GFR-4TP

S1720-28GFR-4TP

  • 24 Ethernet 10/100/1,000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP
  • AC power supply
  • Forwarding performance: 42 Mpps
  • Switching Capacity: 128 Gbit/s

Product Characteristic

Innovative energy-saving design

  • All S1700 series switches are based on a fan-free design, which reduces power consumption and noise.
  • The S1700 supports Energy Efficient Ethernet (EEE), which enables the switch to enter a power-saving mode when traffic is light.
  • The S1700 can adjust the power output for transmissions based on the cable length. It can also set any ports that are not transmitting traffic to sleep mode.

Non-blocking and high-speed forwarding

  • All S1700 ports provide Layer 2 wire-speed forwarding capabilities to ensure non-blocking packet forwarding. S1700 models provide optical and electrical GE uplink ports, which facilitate user access and are cost-effective.
  • The S1700/S1720 MAC address table supports up to 8K/16K of MAC addresses, making it easy to expand networks and deploy new services. The S1700 support layer 3 static routing-forwarding which include IPv4 and IPv6 protocols.

Convenient management and maintenance

  • The S1700 is easy to manage and maintain, being equipped with a one-key operation button on the front panel.
  • Web-managed S1700 models come with a web network management system, making it easy to configure switches.
  • Web/SNMP-based S1700 models allow for the use of an SNMP-based NMS for centralized configuration and management.
  • Web/SNMP-based S1720 models can support CLI and console port configuration.

Powerful security performance

  • The S1700 provides a range of security features, including 802.1x, RADIUS, Portal and NAC. The S1700 also supports packet filtering based on MAC addresses or ports in order to defend against hackers and virus attacks.

Great networking and bandwidth extensibility

  • The S1700 provides LACP, STP, RSTP, and MSTP functions to implement link aggregation and backup. Web/SNMP-based S1720 switches support up to 64 MSTP instances for flexible networking.



Product Specification

S1700 hardware specifications

Type Unmanaged Switch
Model S1700-8-AC S1700-24-AC S1700-52R-2T2P-AC S1700-8G-AC S1724G
Downlink Ports 8 Ethernet 10/100 ports 24 Ethernet 10/100 ports 48 Ethernet 10/100 ports 8 Ethernet 10/100/1,000 ports 24 Ethernet 10/100/1,000 ports
Uplink Ports Shared with downlink ports Shared with downlink ports 2 Ethernet 10/100/1,000 ports and 2 Gig SFP Shared with downlink ports Shared with downlink ports
MAC Address Table 8K MAC
Dimensions (W x D  x H) in mm 160 x 134 x 30 320 x 208 x 43.6 442 x 220 x 43.6 160 x 134 x 32.8 320 x 208 x 43.6
Input Voltage Rated AC power: 100V to 240V AC; 50/60 Hz, Max. AC voltage: 90V to 264V; 47/63 Hz
EEE NA
Power Consumption < 4.3W < 3.9W < 22.6W < 4.6W < 14.2W
Operating Temperature 0°C to 45°C
Humidity (non-condensing) 10% to 90% 5% to 95% 10% to 90% 5% to 95%
Heat Dissipation Fan-free natural heat dissipation
Type Unmanaged Switch
Model S1700-24GR S1700-16G
Downlink Ports 24 Ethernet 10/100/1,000 ports 16 Ethernet 10/100/1,000 ports
Uplink Ports Shared with downlink ports
MAC Address Table 8K MAC
Dimensions (W x D x H) in mm 442 x 220 x 43.6 320 x 208 x 43.6
Input Voltage Rated AC power: 100V to 240V; 50/60 Hz



Max AC voltage: 90V to 264V; 47/63 Hz
EEE NA
Power Consumption < 14.2W < 10W
Operating Temperature

0m to 1,800m: 0°C to 45°C

1,800m to 4,000m: 1°C decrease for every 220m increase in altitude

Humidity (non-condensing) 5% to 95%
Heat Dissipation Fan-free natural heat dissipation

Type Web-managed Switch Web/SNMP-based Switch
Model S1728GWR-4P S1700-28FR-2T2P-AC S1700-52FR-2T2P-AC S1700-28GFR-4P-AC S1700-52GFR-4P-AC
Downlink Ports 24 Ethernet 10/100/1,000 ports 24 Ethernet 10/100 ports 48 Ethernet 10/100 ports 24 Ethernet 10/100/1,000 ports 48 Ethernet 10/100/1,000 ports
Uplink Ports 4 Gig SFP 2 Ethernet 10/100/1,000 ports and 2 Gig SFP 2 Ethernet 10/100/1,000 ports and 2 Gig SFP 4 Gig SFP 4 Gig SFP
MAC Address Table 8K MAC
Dimensions (W x D x H) in mm 442 x 220 x 43.6
Input Voltage 100V to 240V AC, 50/60 Hz
EEE Supported NA NA Supported Supported
Power Consumption < 15W < 25W < 35W < 30W < 55W
Operating Temperature 0°C to 45°C
Humidity (non-condensing) 5% to 90% 10% to 90%
Heat Dissipation Fan-free natural heat dissipation Heat dissipation using fans supporting intelligent speed adjustment
Type Web/SNMP-based Switch
Model S1720-20GFR-4TP S1720-28GFR-4TP
Downlink Ports 16 Ethernet 10/100/1,000 ports 24 Ethernet 10/100/1,000 ports
Uplink Ports 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP
MAC Address Table 16K MAC
Routing Features IPv4 and IPv6 static routing
Dimensions (W x D x H) in mm 442 x 220 x 43.6
Input Voltage 100V to 240V AC, 50/60 Hz
EEE Supported
Power Consumption < 20.7W < 24.3W
Operating Temperature 0m to 1,800m: 0°C to 50°C, 1,800m to 4,000m: 1°C decrease for every 220m increase in altitude

Humidity (non-condensing) 5% to 95%
Heat Dissipation Fan-free natural heat dissipation

Service features

Item Web-managed Switch Web/SNMP-based Switch
Security Features

Packet filtering based on MAC addresses

Port-based 802.1x authentication

RADIUS authentication

Port isolation

Hardware ACL

Packet filtering based on MAC addresses

MAC address authentication

Port-based 802.1x authentication.

RADIUS authentication

Portal authentication

Port isolation

Storm suppression

Attack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks

DHCP snooping

VLANs

256 VLANs

Access port

Trunk port

Hybrid port

Management VLAN

Voice VLAN

4K VLANs

Access port

Trunk port

Hybrid port

Management VLAN

Voice VLAN

QoS

PQ and WRR

Four queues on each port

Queue scheduling based on 802.1p or DSCP priorities

PQ and WRR

Eight queues on each port

Queue scheduling based on 802.1p or DSCP priorities

STP STP (IEEE 802.1d), RSTP (IEEE 802.1w) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
Multicast IGMP snooping and a maximum of 256 multicast groups

IGMP snooping and a maximum of 256 multicast groups

1K multicast groups (S1720 series)

Fast leave

Routing Features NA IPv4 and IPv6 static routing
Link Aggregation

12 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG

Static LACP

12 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG

64 link aggregation groups (S1720 series)

Static LACP

Port Mirroring Port-based bi-directional flow mirroring

Port-based bi-directional flow mirroring

Configuring a trunk as a mirrored interface

Bandwidth Control Rate limiting for incoming and outgoing packets, with a granularity of 64 kbit/s Rate limiting for incoming and outgoing packets, with a granularity of 8 kbit/s
Broadcast Storm Suppression

Broadcast storm suppression based on the interface rate

Alarms sent when the traffic rate reaches the upper limit

Broadcast storm suppression based on the interface rate

Alarms sent when the traffic rate reaches the upper limit

Device mManagement

Web system network management

DHCP client

One-key restoration

SNMP

Web system network management (HTTPS)

DHCP client

User password protection

One-key restoration

CLI configuration (S1720 series)

Console port (S1720 series)

Device Maintenance

System log

Ping

Virtual Cable Test (VCT)

Link Layer Discovery Protocol (LLDP)

Remote Network Monitoring (RMON)

System log

Ping and traceroute

Virtual Cable Test (VCT)

Link Layer Discovery Protocol (LLDP)

The product information may contain the product functions provided in future. For the actual product specifications, contact Huawei local sales office.

For more details, please refer to S1700 datasheet.

Deployment Scenarios

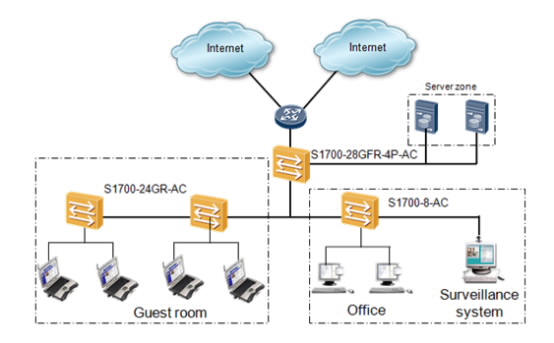

Hotel

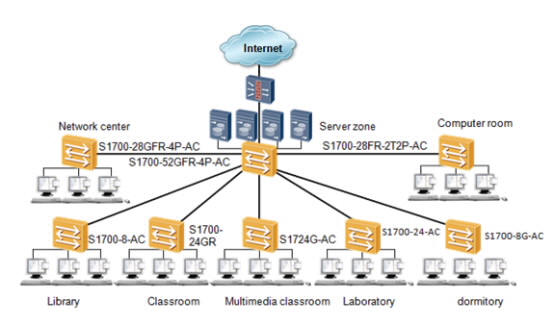

School

Ordering Information

Product Description
S1700-8-AC (8 Ethernet 10/100 ports, AC 110/220V, and China Power Adapter)

S1700-8-AC (8 Ethernet 10/100 ports, AC 110/220V, and European Power Adapter)
S1700-8G-AC (8 Ethernet 10/100/1,000 ports, AC 110/220V, and China Power Adapter)
S1700-8G-AC (8 Ethernet 10/100/1,000 ports, AC 110/220V, and European Power Adapter)
S1700-16G (16 Ethernet 10/100/1,000 ports, and AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 ports, and AC 110/220V)
S1724G (24 Ethernet 10/100/1,000 ports, and AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1,000 ports, and AC 110/220V)
S1728GWR-4P (24 Ethernet 10/100/1,000 ports, 4 Gig SFP, and AC 110/220V)
S1700-28FR-2T2P-AC (24 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports, 2 Gig SFP, and AC 110/220V)
S1700-28GFR-4P-AC (24 Ethernet 10/100 ports, 4 Gig SFP, and AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports, 2 Gig SFP, and AC 110/220V)
S1700-52FR-2T2P-AC (48 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports and 2 Gig SFP, AC 110/220V)
S1700-52GFR-4P-AC (48 Ethernet 10/100/1,000 ports, 4 Gig SFP, AC 110/220V)
S1720-20GFR-4TP (16 Ethernet 10/100/1,000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V)
S1720-28GFR-4TP (24 Ethernet 10/100/1,000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP, AC 110/220V)

Compare and Shop

Vendor Product Description Huawei Advantages
HUAWEI S1700-24-AC 24 FE RJ45, AC 110/220V
CISCO SF100-16 16 Port 10/100 Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)
CISCO SF100-24 24 Port 10/100 Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)
CISCO SF100D-16 16 Port 10/100 Desktop Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)
CISCO SF102-24 24-port 10/100 Switch with 2 Combo Mini-GBIC Ports and 2 GE uplink ports Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)

Vendor Product Description Huawei Advantages
HUAWEI S1700-24GR 24 GE RJ45, AC 110/220V
CISCO SG100-24 24 Port Gigabit Switch with 2 Combo Mini-GBIC Ports Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)

Vendor Product Description Huawei Advantages
HUAWEI S1700-28FR-2T2P-AC 24 FE RJ45, 2 GE RJ45, 2 GE SFP, AC 110/220V
CISCO SF300-24 SRW224G4, 24 10/100 ports, 2 10/100/1000 ports, 2 combo mini-GBIC ports A large number of link aggregation groups (12 vs 8), static routes (60 vs 32), and ACL rules (768 vs 512); high security (anti-IP/ARP attack), MAC address-based/ARP rate limiting, anti-worm/DOS attack, DHCP rate limiting)

Vendor Product Description Huawei Advantages
HUAWEI S1700-28GFR-4P-AC 24 GE RJ45,4 GE SFP,AC 110/220V, SNMP management
CISCO SG300-20 SRW2016, 18 10/100/1000 ports, 2 combo mini-GBIC ports A large number of link aggregation groups (12 vs 8), static routes (60 vs 32), and ACL rules (768 vs 512); high security (anti-IP/ARP attack), MAC address-based/ARP rate limiting, anti-worm/DOS attack, DHCP rate limiting)
CISCO SG300-28 SRW2024, 26 10/100/1000 ports, 2 combo mini-GBIC ports A large number of link aggregation groups (12 vs 8), static routes (60 vs 32), and ACL rules (768 vs 512); high security (anti-IP/ARP attack), MAC address-based/ARP rate limiting, anti-worm/DOS attack, DHCP rate limiting)

Vendor Product Description Huawei Advantages
HUAWEI S1700-52FR-2T2P-AC 48 FE RJ45, 2 GE RJ45, 2 GE SFP, AC 110/220V
CISCO SF300-48 SRW248G4, 48 10/100 ports, 2 10/100/1000 ports, 2 combo mini-GBIC A large number of link aggregation groups (12 vs 8), static routes (60 vs 32), and ACL rules (768 vs 512); high security (anti-IP/ARP attack), MAC address-based/ARP rate limiting, anti-worm/DOS attack, DHCP rate limiting)

Vendor Product Description Huawei Advantages
HUAWEI S1700-52GFR-4P-AC 48 GE RJ45, 4 GE SFP, AC 110/220V
CISCO SG300-52 SRW2048, 50 10/100/1000 ports, 2 combo mini-GBIC ports A large number of link aggregation groups (12 vs 8), static routes (60 vs 32), and ACL rules (768 vs 512); high security (anti-IP/ARP attack), MAC address-based/ARP rate limiting, anti-worm/DOS attack, DHCP rate limiting)

Vendor Product Description Huawei Advantages
HUAWEI S1700-8-AC 8 FE RJ45, AC 110/220V, Power Adapter
CISCO SF100D-05 5 Port 10/100 Desktop Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)
CISCO SF100D-08 8 Port 10/100 Desktop Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)

Vendor Product Description Huawei Advantages
HUAWEI S1700-8G-AC 8 GE RJ45, AC 110/220V, Power Adapter
CISCO SF100D-05 5 Port 10/100 Desktop Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)
CISCO SF100D-08 8 Port 10/100 Desktop Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)

Vendor Product Description Huawei Advantages
HUAWEI S1724G-AC 24 GE RJ45, AC 110/220V
CISCO SG100-16 16 Port Gigabit Switch Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)
CISCO SG102-24 Compact 24 Port Gigabit Switch with 2 Combo Mini-GBIC Ports Large MAC address table (8K vs 4K); port sleeping; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃)

Vendor Product Description Huawei Advantages
HUAWEI S1728GWR-4P-AC 24 GE RJ45,4 GE SFP,AC 110/220V, Web management
CISCO SF200E-24 24 10/100 ports, 2 combo mini-GBIC ports Two more GE uplink ports; small depth (220 mm vs 420 mm); EEE; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃).
CISCO SG200-18 SLM2016T, 16 10/100/1000 ports, 2 combo mini-GBIC ports Two more GE uplink ports; small depth (220 mm vs 420 mm); EEE; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃).
CISCO SG200-26 SLM2024T, 24 10/100/1000 ports, 2 combo mini-GBIC ports Two more GE uplink ports; small depth (220 mm vs 420 mm); EEE; wide temperature range (HW 0-45 ℃ vs Cisco 0-40 ℃).
