Huawei Cloud Engine Data Center Switch

Huawei Data Center switches are intelligent ones designed for next-generation data centers, covering core/aggregation/access switches to support flexible deployment on enterprise networks.

Huawei has combined the CE series switches with Huawei transmission, routing, security, and network management products to create Huawei Cloud Fabric Solution for next-generation cloud-computing data centers. This solution helps customers build a stable network architecture that will support business growth and development for the next 10 years.



Pain Point &Solution

Pain: Customer needs high-performance datacenter switching at an affordable price points
Solution: Huawei Cloud Engine switches provide 1.28 Tbit/s switching capacity which is the industry's highest performance in a 1 U ToR. The pricing is at least 30% lower than the largest competitors.

Pain: Customers need a network vendor that can support business growth requirements for the next 10 years and beyond and can stay within their budget
Solution: Huawei’s Cloud Engine switches can implement a 960 Tbit/s non-blocking switching network that supports datacenter server evolution across four generations (from GE, 10GE, 40GE all the way up to 100GE). This alleviates the need for customers to frequently upgrade their networks to meet requirements for 40GE or 100GE access.

Pain: Need network virtualization to support highly virtualized server and storage datacenter environments
Solution: Huawei Cloud Engine Switches leverage TRILL to support service virtualization and server virtualization. Uses VS and CSS/iStack technologies to flexibly adjust network boundaries, meeting requirements for network virtualization.



CE12800 Series

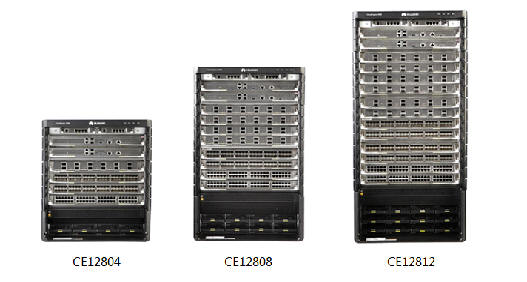

Huawei CE12800 Data Center Switch

The CE12800 switches are high-performance core switches designed for data center networks and high-end campus networks.

They implement an advanced hardware architecture and offer the highest performance of any currently available core switches. The CE12800 provides as much as 64 Tbit/s switching capacity and high-density line-speed ports. Each switch has up to 128*100GE, 384*40GE, or 1536*10GE ports.

The CE12800 switches use an industry-leading Clos architecture and a front-to-rear ventilation channel design to provide industrial-grade reliability. The switches also provide comprehensive virtualization capabilities and abundant data center service features. Moreover, the CE12800 switches use innovative energy-saving technologies to greatly reduce power consumption.

The CE12800 is available in four models: CE12816, CE12812, CE12808, CE12804. The CE12800 series uses interchangeable components to reduce costs on spare parts. This design ensures device scalability and protects customers' investment.

Quote on Huawei CE12800 Switch

CE8800 Series

CE8800 front view

Huawei CloudEngine 8800 series (CE8800) switches are 40G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 40 GE ports, and low latency. The CE8800 hardware has an advanced architectural design with 100 GE/40 GE/25 GE/10 GE ports. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE8800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric for cloud-computing data centers.
CE8800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.



CE7800 Series

CE7800 front view

Huawei CloudEngine CE7800 series switches are next-generation 40G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 40 GE ports, and low latency. The switch hardware has an advanced architectural design with 40 GE QSFP+ ports. Using the Huawei VRP8 software platform, CE7800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE7800 switches can work with CE12800/6800/5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.

CE7800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.

Quote on Huawei CE7800 Switch

CE6800 Series

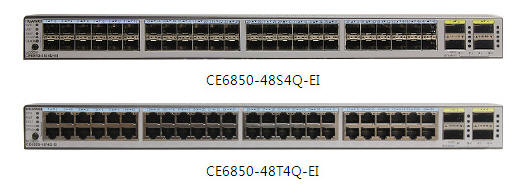

Huawei CE6850 Data Center Switch

The CE6800 switches provide high-density 10GE access in data centers and can also be used as core or aggregation switches on campus networks.

The CE6800 series' advanced hardware architecture design supports the highest density of 10GE access ports in the industry and provides 40GE uplink ports. These switches support abundant data center service features and high stacking capability. In addition, air flow direction is changeable in ventilation channels (front-to-rear or rear-to-front).

The CE6800 comes in two models: the 48S4Q model providing 10GE optical access ports and the 48T4Q model providing 10GE electrical access ports. Each switch has 48*10GE ports (optical or electrical) and 4*40GE QSFP+ ports. Each QSFP+ port can be used as 4*10GE ports. These ports provide L2/L3 line-speed forwarding.

Special Price: $5,690    Order Now!

Quote on Huawei CE6800 Switch

CE5800 Series

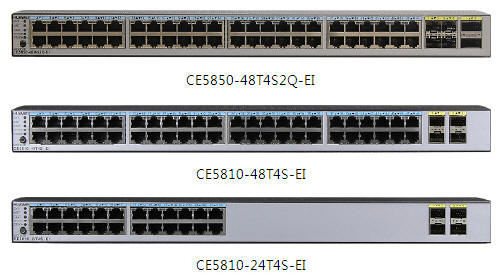

Huawei CE5800 Series Data Center Switch

The CE5800 switches provide high-density GE access in data centers and can also be used as aggregation or access switches on campus networks.

The CE5800 series switches were the first in the industry to provide 40GE uplink ports, and the advanced hardware architecture supports the industry's highest density of GE access ports. The CE5800 supports a wide range of data center service features and high stacking capability. In addition, air flow direction is changeable in ventilation channels (front-to-rear or rear-to-front).

The CE5800 comes in three models:
CE5850-48T4S2Q-EI, CE5810-48T4S-EI and CE5810-24T4S-EI.

The CE5850-48T4S2Q-EI has 48 line-speed GE ports, 4*10GE SFP+ ports, and 2*40GE QSFP+ ports. These ports provide L2/L3 line-speed forwarding.

Quote on Huawei CE5800 Switch

CE1800V Virtual Switch

Huawei CloudEngine 1800V (CE1800V) is a distributed Virtual Switch (vSwitch) designed by Huawei for data center virtualization environments. Supporting an abundance of functionality, the CE1800V is open, easy-to-manage, and compatible with the virtualization platforms of VMware and Microsoft, as well as other open-source virtualization platforms. Through Huawei’s close cooperation with VMware and Microsoft, the CE1800V can run on the virtualization platforms of VMware and Microsoft, delivering a strong distributed, virtual switching capability for Virtual Machines (VMs). In addition, the CE1800V can work with Huawei’s CE series hardware switches and Agile Controller to provide a complete network virtualization solution for customers.



Quote on Huawei CE5800 Switch

Quote on Huawei CE6800 Switch

Quote on Huawei CE7800 Switch

Quote on Huawei CE12800 Switch

Contact us:Tel: 1-866-318-6636 (US/CANADA)

     Email: info@actfornet.com



Huawei CloudEngine Series Data Center Switches

Huawei CloudEngine (CE) series switches are high-performance cloud switches designed for next-generation data centers and high-end campus networks. The series includes the CE12800 flagship core switches with the world's highest performance, and CE6800/5800 high-performance box switches (for 10GE/GE access). The CE series uses Huawei's next-generation VRP8 software platform and supports extensive data center and campus network services.

For more details, please refer to the CloudEngine Series Switches Quick Reference Guide
