Huawei AP6510 Access Point

Outdoor dual-frequency AP with external antennas, PoE
power supply.



Product Features

WLAN features

Compliance with IEEE 802.11a/b/g/n, providing a maximum rate of 300 Mbit/s
Maximum ratio combining (MRC)
Maximum-likelihood detection (MLD)
Data unit aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
Short GI in 20 MHz and 40 MHz modes
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding
Automatic and manual rate adjustment (the rate is adjusted automatically by default)
WLAN channel management and channel rate adjustment
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Signal sustain technology (SST)
Unscheduled automatic power save delivery (U-APSD)
Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
Automatic login in Fit AP mode
Wireless distribution system (WDS) in Fit AP mode
Mesh networking in Fit AP mode

Network features

  • Compliance with IEEE 802.3u
  • Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
  • SSID-based VLAN assignment
  • VLAN trunk on uplink Ethernet ports
  • 4094 VLAN IDs (1-4094) and a maximum of 16 virtual APs (VAPs) for each radio
  • AP control channel in tagged and untagged mode
  • DHCP client, obtaining IP addresses through DHCP
  • Tunnel data forwarding and direct data forwarding
  • STA isolation in the same VLAN
  • Access control lists (ACLs)
  • Link Layer Discovery Protocol (LLDP)
  • Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP mode
  • Unified authentication on the AC in Fit AP mode
  • AC dual-link backup and VRRP hot backup in Fit AP mode
  • Native IPv6
  • IPv4/IPv6 dual stack
  • IPv6 Portal
  • IPv6 SAVI
  • IPv4/IPv6 ACL

    QoS feature

    Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding
    WMM parameter management for each radio
    WMM power saving
    Priority mapping for upstream packets and flow-based mapping for downstream packets
    Queue mapping and scheduling
    User-based bandwidth limiting
    Adaptive bandwidth management (the system dynamically adjusts bandwidth based on the number of users and radio environment to improve user experience)

    Security features

    Open system authentication
    WEP authentication/encryption
    WPA/WPA2-PSK authentication and encryption
    WPA/WPA2-802.1x authentication and encryption
    WAPI authentication and encryption
    Supports wireless intrusion detection system (WIDS), including rogue AP and STA detection, attack detection, STA/AP blacklist and whitelist.

    Maintenance features

    Unified management and maintenance on the AC in Fit AP mode
    Automatic login and configuration loading, and plug-and-play (PnP) in Fit AP mode
    WDS zero-configuration deployment in Fit AP mode
    Mesh network zero-configuration deployment in Fit AP mode
    Batch upgrade
    Local AP management through the serial interface or using Telnet
    Real-time configuration monitoring and fast fault location using the NMS
    System status alarm

    BYOD

    Identifies the device type according to the organizationally unique identifier (OUI) in the MAC address.
    Identifies the device type according to the user agent (UA) information in an HTTP packet.
    Identifies the device type according to DHCP options.
    The RADIUS server delivers packet forwarding, security, and QoS policies according to the device type carried in the RADIUS authentication and accounting packets.

    Locating Service

    Locates tags manufactured by AeroScout or Ekahau.
    Locates Wi-Fi terminals.

    Spectrum Analysis

    Identifies interference sources such as bluetooth devices, microwave ovens, cordless phones, ZigBees, game controllers, 2.4 GHz/5 GHz wireless video and audio devices, and baby monitors.
    Works with eSight to locate and perform spectrum analysis on interference sources.



    Product Specification

    Physical Specification

    Item

    Description

    Technical specifications

    Dimensions (H×W×D)

    83 mm×255 mm×255 mm

    Weight

    2.2 kg

    System memory

    128 MB DDR2
    32 MB flash memory

    Power specifications

    Power input

    POE Power: -48V DC
    PoE function in compliance with IEEE 802.3at

    Maximum power consumption

    25.5 W
    NOTE:The maximum power
    consumption depends on local laws.

    Environment parameters

    Operating temperature

    -40 to +60

    Storage temperature

    -40 to +70

    Humidity

    0% to 100% (non-condensing)

    Waterproof grade

    IP67

    Altitude

    –60 m to 4000 m

    Radio Specifications

    Item

    Description

    Antenna type

    Dual-polarization antenna or common outdoor antenna

    Maximum number of concurrent users

    128

    Maximum transmit power

    2.4G: 26dBm
    5G: 20dBm
    You can adjust the transmit power from the maximum transmit power by 20 dB, with a step of 1 dB.
    NOTE:Actual transmit power depends on local laws and regulations.

    Maximum
    number of
    non-overlapping
    channels

    2.4 GHz
    802.11b/g
    20MHz: 3
    802.11n
    20MHz: 3
    40MHz: 1

    5 GHz
    802.11a
    20MHz: 5
    802.11n
    20MHz: 5
    40MHz: 2

    NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status

    Channel Rate

    802.11b: 1, 2, 5.5, and 11 Mbit/s

    802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

    802.11n data rate (2.4 GHz and 5 GHz)

    GI2=800ns

    GI=400ns

    20 MHz (Mbit/s)

    40 MHz
    (Mbit/s)

    20 MHz (Mbit/s)

    40 MHz (Mbit/s)

    6.5 @ MCS10

    13.5 @ MCS0

    7.2 @ MCS0

    15 @ MCS0

    13 @ MCS1

    27 @ MCS1

    14.4 @ MCS1

    30 @ MCS1

    19.5 @ MCS2

    40.5 @ MCS2

    21.7 @ MCS2

    45 @ MCS2

    26 @ MCS3

    54 @ MCS3

    28.9 @ MCS3

    60 @ MCS3

    39 @ MCS4

    81 @ MCS4

    43.3 @ MCS4

    90 @ MCS4

    52 @ MCS5

    108 @ MCS5

    57.8 @ MCS5

    120 @ MCS5

    58.5 @ MCS6

    121.5 @ MCS6

    65 @ MCS6

    135 @ MCS6

    65 @ MCS7

    135 @ MCS7

    72.2 @ MCS7

    150 @ MCS7

    13 @ MCS8

    27 @ MCS8

    14.4 @ MCS8

    30 @ MCS8

    26 @ MCS9

    54 @ MCS9

    28.9 @ MCS9

    60 @ MCS9

    39 @ MCS10

    81 @ MCS10

    43.3 @ MCS10

    90 @ MCS10

    52 @ MCS11

    108 @ MCS11

    57.8 @ MCS11

    120 @ MCS11

    78 @ MCS12

    162 @ MCS12

    86.7 @ MCS12

    180 @ MCS12

    104 @ MCS13

    216 @ MCS13

    115.6 @ MCS13

    240 @ MCS13

    117 @ MCS14

    243 @ MCS14

    130 @ MCS14

    270 @ MCS14

    130 @ MCS15

    270 @ MCS15

    144.4 @ MCS15

    300 @ MCS15

    NOTE:Modulation coding scheme (MCS) index: determines the spatial flow quantity, modulation, coding rate, and data rate.
    Guard interval (GI): indicates the period in nanoseconds the radio listens between packets.

    Receiver Sensitivity

    2.4 GHz
    802.11b (CCK)
    -97 dBm @ 1 Mbit/s
    -92 dBm @ 2 Mbit/s
    -92 dBm @ 5.5 Mbit/s
    -90 dBm @ 11 Mbit/s

    2.4 GHz
    802.11g (non-HT20)
    -92 dBm @ 6 Mbit/s
    -91 dBm @ 9 Mbit/s
    -90 dBm @ 12 Mbit/s
    -87 dBm @ 18 Mbit/s
    -83 dBm @ 24 Mbit/s
    -80 dBm @ 36 Mbit/s
    -76 dBm @ 48 Mbit/s
    -74 dBm @ 54 Mbit/s

    2.4 GHz
    802.11n (HT20)
    -92 dBm @ MCS0/8
    -89 dBm @ MCS1/9
    -86 dBm @ MCS2/10
    -82 dBm @ MCS3/11
    -79 dBm @ MCS4/12
    -74 dBm @ MCS5/13
    -73 dBm @ MCS6/14
    -71 dBm @ MCS7/15

    2.4 GHz
    802.11n (HT40)
    -89 dBm @ MCS0/8
    -86 dBm @ MCS1/9
    -83 dBm @ MCS2/10
    -79 dBm @ MCS3/11
    -76 dBm @ MCS4/12
    -72 dBm @ MCS5/13
    -70 dBm @ MCS6/14
    -68 dBm @ MCS7/15

    5 GHz
    802.11a (non-HT20)
    -90 dBm @ 6 Mbit/s
    -89 dBm @ 9 Mbit/s
    -86 dBm @ 12 Mbit/s
    -84 dBm @ 18 Mbit/s
    -81 dBm @ 24 Mbit/s
    -77 dBm @ 36 Mbit/s
    -72 dBm @ 48 Mbit/s
    -71 dBm @ 54 Mbit/s

    5 GHz
    802.11n (HT20)
    -84 dBm @ MCS0/8
    -81 dBm @ MCS1/9
    -79 dBm @ MCS2/10
    -76 dBm @ MCS3/11
    -72 dBm @ MCS4/12
    -68 dBm @ MCS5/13
    -67 dBm @ MCS6/14
    -67 dBm @ MCS7/15

    5 GHz
    802.11n (HT40)
    -81 dBm @ MCS0/8
    -78 dBm @ MCS1/9
    -76 dBm @ MCS2/10
    -73 dBm @ MCS3/11
    -69 dBm @ MCS4/12
    -65 dBm @ MCS5/13
    -64 dBm @ MCS6/14
    -64 dBm @ MCS7/15

    For more details, please refer to

    For more details, please refer to  AP6510DN-AGN Access Point Datasheet (PDF).


    Deployment Scenarios

    The AP is applicable to open outdoor areas with high user densities, such as squares, residential communities, schools, and gardens, or outdoor places that have high demands for wireless access, such as pedestrian malls. This AP can be used together with outdoor antenna to provide long-distance network coverage and implements stable radio backhaul in a wireless distribution system.

    The AP6510DN-AGN can work as a Fat AP or Fit AP and switch flexibly between the two working modes based on the network plan.

    When the wireless network scale is small, customers need to purchase only AP products and set the APs to work as Fat APs. As the network scale expands, tens of or hundreds of APs exist on the network. To simplify network management, customers are advised to purchase ACs to perform centralized management on the APs and set the APs to work as Fit APs.

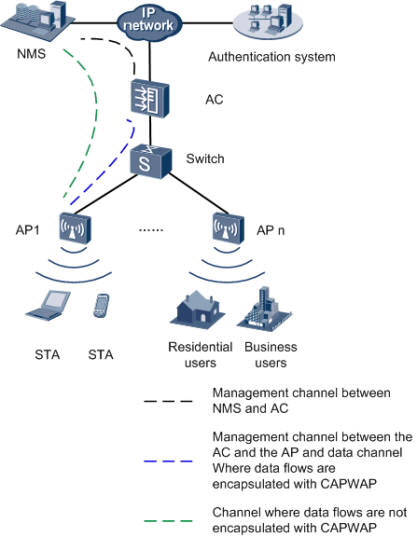

    Fit AP networking (AP mode)

    Huawei AP6510 Fit AP networking

    In this networking, the AP functions as a fit AP and provides only data forwarding functions. The AC is responsible for user access, AP go-online, AP management, authentication, routing, security, and QoS.

    Fit AP networking (WDS mode: point-to-point)

    Huawei AP6510 Fit AP WDS point-to-point

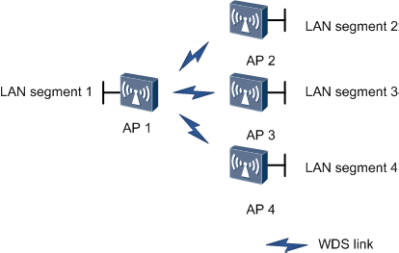

    Fit AP networking (WDS mode: point-to-multipoint)

    Huawei AP6510 Fit AP networking WDS point-to-multipoint

    In this networking, the AP connects two or more independently wired or wireless LANs through wireless links to construct a network on which users can exchange data. In Wireless Distribution System (WDS) mode, the AP supports point-to-point (P2P) and point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands, the AP can implement wireless bridging and access functions.

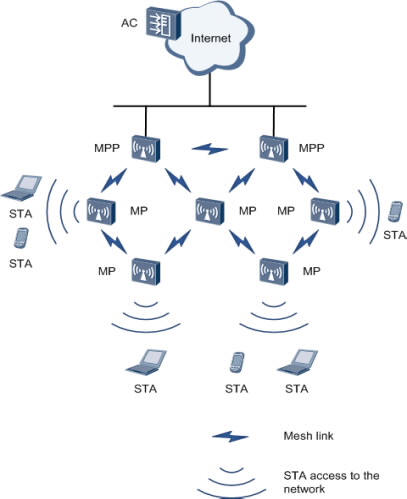

    Fit AP mesh networking

    Huawei AP6510 Fit AP Mesh Networking

    On the preceding network, APs function as mesh points (MPs) and are fully-meshed to establish an auto-configured and self-healing wireless mesh network (WMN). APs with the gateway function can work as the mesh portal points (MPPs) through which the WMN can provide access to the Internet. Terminals connect to APs to access the WMN. The WMN uses dedicated mesh routing protocols to guarantee high transmission quality and is more applicable to scenarios that require high bandwidth and highly stable Internet connections.

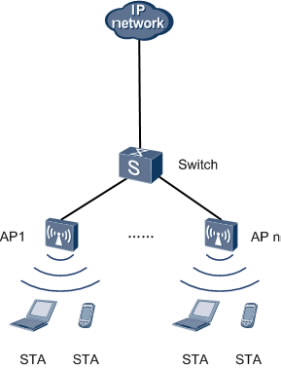

    Fat AP networking

    Huawei AP6510 Fat AP networking

    On the preceding network, the device functions as a Fat AP to implement functions such as user access, authentication, data security, service forwarding, and QoS.


  • Huawei AP6510 Access Point

    Huawei AP6510 Access Point

    The AP6510DN-AGN is an enhanced series dual-band Access Point (AP).With a high level of physical protection, it is applicable to pedestrian areas, factories, and other challenging environments, meeting the outdoor network deployment requirements.

    For more details, please refer to  AP6510DN-AGN Access Point Datasheet (PDF).
