Huawei IDS2000-M Medium Modular Data Center

IDS2000-M is a new generation modular data center solution. It adopts All-In-Room design and features high density modularization, optimal reliability and security, fast deployment, cost effectiveness, energy saving and excellent monitoring.
As an integrative solution, IDS2000-M is designed for the room area from 10m² to 60m². It integrates cabinet system, power supply and distribution system, cooling system, monitoring system and the cabling system. It can support 2 to 16 IT cabinets with the total nominal power capacity from 10kW to 132kW. IDS2000-M offers various options including single row or dual row deployment, as well as aisle containment or without aisle containment deployment.

Product Features

High Density Modularization

Single rack supports rated power from 7kW to11 kW, which meets various customer requirements.

Simple and Low Consumption

The small data center is installed on a concrete floor rather than a raised floor. By using in-row air conditioners, which are close to heat sources, the cooling efficiency is improved greatly.

Excellent Monitoring

Various sensors monitor modules in the small data center constantly. The web-based monitoring system (with SSL supported) enables the modules to be remotely managed.

Optimal Reliability and Security

Tier II and Tier III configurations can be expanded to Tier III+ and Tier IV configurations. Modular UPS works in N+1 redundancy mode with long time battery backup to improve the reliability of the small data center.



Product Specification

Item

Specification






Cabinet

Standards

IEC60297-1



Dimensions (H x W x D)

2000mm×600mm×1100mm

Installation space

42U



Protection level

IP20





Power Distribution Frame

Rated Current

125A/250A/400A Optional



Voltage

3P 380V or 220V



Frequency

50Hz or 60Hz



Protection level

IP20





In-row AC (T1 condition)

Cooling capacity

30kW/20kW



Refrigent

R410A



Power

380V/50Hz



Operating temperature

Indoor AC: 5-45°C
Outdoor AC: -30°C to +45°C





In-row AC (T3 condition)

Cooling capacity

30kW



Refrigent

R407C



Power

380V/50Hz



Operating temperature

Indoor AC: 5-45°C
Outdoor AC: -30°C to +55°C





CRAC

Cooling capacity

30kW/12.5kW



Refrigent

R22/R407C



Power

380V/50Hz




Operating temperature

T1 condition:
Indoor AC: 5-45°C
Outdoor AC: -30°C to +45°C

T3 condition:
Indoor AC: 5-45°C
Outdoor AC: -30°C to +55°C







UPS

Type

20kVA rack-mounted UPS;
80KVA/120KVA modular UPS



Voltage

20kVA rack-mounted UPS:
3PH 380, 400, 415V
80kVA/120KVA modular UPS:
3PH 380V or 220V



Frequency

50Hz or 60Hz



Power factor

≥0.8



Efficiency with full load

≥94%



Noise(1 meter)

≤70dB



Protection level

IP20



For more details, please refer to Huawei IDS2000-M Medium Modular Data Center Solution Brochure (PDF).

Configuration

IDS2000-M Medium modular data center solution typical configuration:

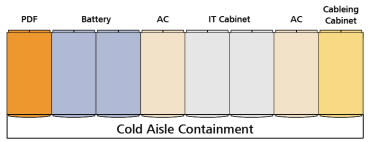

1. Single-Row with Aisle Containment:

Applies to the scenario of 2-6 IT racks for high power density of 7-11kW per rack.

2. Single-Row without Aisle Containment

Applies to the scenario of 2-6 IT racks for low power density of 1-7kW per rack.

3. Dual-Row with Aisle Containment

Applies to the scenario of 4-16 IT racks for high power density of 7-11kW per rack.

4. Dual-Row without Aisle Containment

Applies to the scenario of 4-16 IT racks for low power density of 1-7kW per rack.
