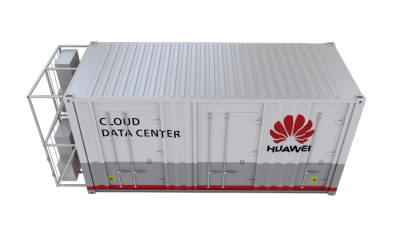

Huawei IDS1000-A All-in-one container data center

The Huawei IDS1000-A is highly integrated small-capacity container data center solutions, which integrated all systems in one container, including power supply & distribution, cooling, IT cabinets, cabling, anti-fire, lightning protection and monitoring. It features High reliability and security, fast deployment, best mobility, energy-saving and cost-saving. It can significantly reduce customer TCO and improve ROI, is suitable for applications in small and medium enterprises, and also applicable to special mobile scenarios.
40 feet (IDS1000-A40) and 20 feet (IDS1000-A20) are two standard products of IDS1000A.

Product Features

High integration, one week installation, easy to move and deploy

  • Integrated rack, monitoring, cabling, power supply & distribution, anti-fire, air-conditioning systems and other major subsystems, one-stop solution.
  • 1 week fast installation, deploy after simply obtaining site, power and network.
  • Unique anti-vibration system, best mobility.

Super Adaptability, Applicable to Complex Scenarios

  • Operating Temperature:-40 degC to 55 degC, suitable for extra low / extra high temperature region.
  • IP55 dustproof and waterproof design, can be used in the dusty mining area; special. anti-corrosion treatment, able to deploy on sea shore. Life span is up to 15 years.

Saving OPEX, improving ROI

  • The construction period is extremely shortened.
  • Efficient UPS, aisle isolation, significantly reducing OPEX.
  • Saving ​​more than 30% space.

Efficient, Automatic and Intelligent with Smart Management

  • Unified management platform, collect status of temperature, humidity, smoke, door magnetic etc.
  • Automatically handle emergencies, enhance the availability of data center, improve management efficiency.



Product Specification

IDS1000-A40 Specifications

Specifications

IDS1000-A40

Dimension (H × L× W)

9.6' × 8' × 40'
(2896 mm × 2438 mm × 12192 mm)

Power supply

380V AC3-phase 4-line+PE

Operation temperature range

-40°C55°C / T1,T3 supported *

Cooling mode

Air cooled + Close-coupled cooling

Cabinet Qty (set)

8

Total equipment installation space

360U (45U/Rack)

Power consumption

60kW

UPS

80kVA rack-mounted UPS3+1 redundancy

UPS backup time (minute)

15min

Typical application scenarios

Application scenarios: data center in small and medium-sized enterprises, such as universities, research institutes, hospitals, transportation, disaster recovery, etc.



IDS1000-A20 Specifications

Specifications

IDS1000-A20

Dimension (H × L× W)

9.6' × 8' × 20' (2896 mm × 2438 mm × 6058 mm)

Power supply

380V AC3-phase 4-line+PE

Operation temperature range

-40°C+55°C / T1,T3 supported *

Cooling mode

Air cooled + Close-coupled cooling

Cabinet Qty (set)

4

Total equipment installation space

180U (45U/Rack)

Power consumption

30 kW

UPS

60 kVA rack UPS2+1 redundancy

UPS backup time (minute)

10min

Typical application scenarios

Application scenarios: moving scenes, such as oil / mining exploration business, military , video production, etc.

For more details, please refer to Huawei IDS1000-A All-in-one Container Data Center Solution Brochure (PDF).

Configuration

40ft and 20ft two types standard container production.

Deployment Scenario

Application scenarios: data center in small and medium-sized enterprises, such as universities, research institutes, hospitals, transportation, disaster recovery, etc.

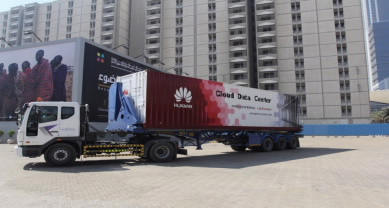

Application scenarios: mobile scenarios, such as oil / mining exploration business, military, video production, etc.


IDS1000-A All-in-one container data center

The Huawei IDS1000-A is highly integrated small-capacity container data center solutions, which integrated all systems in one container, including power supply & distribution, cooling, IT cabinets, cabling, anti-fire, lightning protection and monitoring. It features High reliability and security, fast deployment, best mobility, energy-saving and cost-saving. It can significantly reduce customer TCO and improve ROI, is suitable for applications in small and medium enterprises, and also applicable to special mobile scenarios.
40 feet (IDS1000-A40) and 20 feet (IDS1000-A20) are two standard products of IDS1000A

For more details, please refer to Huawei IDS1000-A All-in-one Container Data Center Solution Brochure (PDF).
