Huawei WiFi Repeaters

WS323

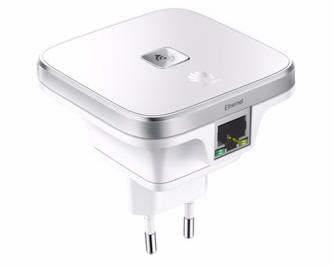

Huawei WS323 WiFi Repeater

Product Features

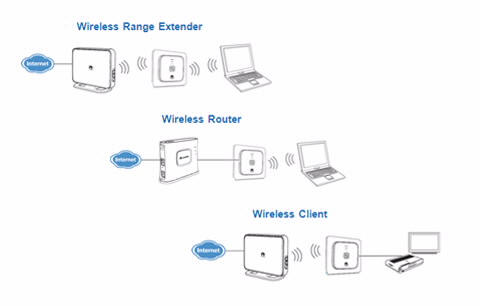

3 Working Modes in 1

Wireless Router: Instead of General large routers to provide high-performance Wi-Fi for families, transform the hotel wired network into the wireless. The new-moon-like product covered by white-jade-like façade is shaped by nature and rekindles the yearning of human returning to the nature.

Wireless Range Extender: As a wireless range extender, it can effectively extend exist wireless router's Wi-Fi coverage, to provide full Wi-Fi coverage solutions for the villa-level residential and office area.

Wireless Client: WS323 can provide wireless access function for PC and STB as the same as the wireless network card, to reduce the cable and enjoy the clean life.

Huawei WS323 WiFi Range Extender

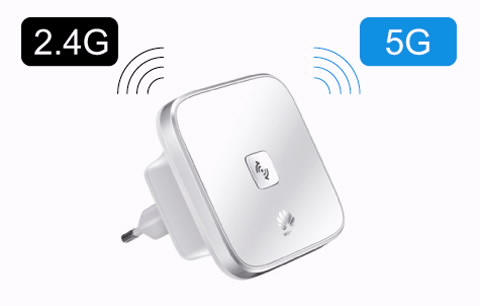

2.4G/5G Dual Band Optional

WS323 supports the 2.4G/5G dual-band to provide the more stable selection.

Huawei WS323 Dual Band option

One-click secure wireless connection by WPS

You just need to press WPS buttons on the device and WS323 to establish the secure wireless connection quickly.

Huawei WS323 WPS

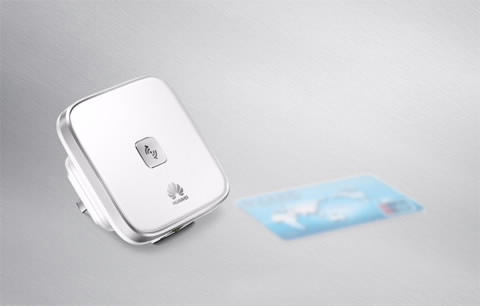

Stylish, Compact ID design

Unimaginable compact body, saving space; Arc body, easily accessible; Clear indicator, easily learn its running state.

Huawei WS323 Stylish design

High-speed Wireless Connection

Complies with 802.11n and support 2x2 MIMO, its wireless transmission rate can be up to 300Mbps, to meet multi-device access simultaneously.

Huawei WS323 High speed

Eco-friendly

Not only meet the certification of CCC China, but also meet the strict secure and environmental requirements, like CE, FCC, RoHS.

Huawei WS323 Eco-friendly

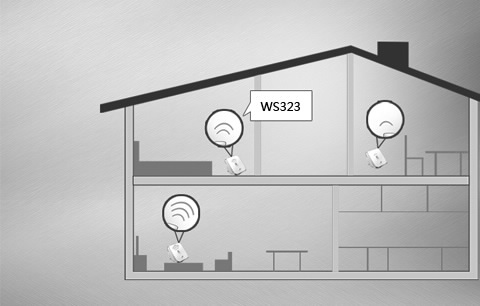

Wireless strength Intelligent Detection

When WS323 is working as wireless range extender, it can automatically detect the signal strength of wireless access point (AP), users can select the best installation location according to wireless strength light.

Huawei WS323 Signal Stength detection

Specification

Interface

One 10/100/1000Mbps Ethernet RJ-45 port
Built-in power
100V AC240V AC

WLAN Feature

Protocol802.11 b/g/n
Speed
300Mbps
Antenna
2x2 internal antennas, support MIMO
Frequency
5GHz/2.4GHz
Working modes
Wi-Fi Router/Repeater/Client

Buttons

Reset
WPS

LEDs

WLAN
WPS
ETH

Security

WEP(64/128), WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK certificate, TKIP, AES encryption, Wireless MAC address filtering

Functions

Route function
Bridging function
TR-069

System tools

Power specifications

100V AC240V AC

Power consumption

<5W

Environments

Operating Temperature: 0°C to 40°C
Relative humidity: 5% to 95% ,non-condensing



WS322

Product Features

3 Working Modes in 1

Wireless Router: Instead of General large routers to provide high-performance Wi-Fi for families, transform the hotel wired network into the wireless. The new-moon-like product covered by white-jade-like façade is shaped by nature and rekindles the yearning of human returning to the nature.

Wireless Range Extender: As a wireless range extender, it can effectively extend exist wireless router's Wi-Fi coverage, to provide full Wi-Fi coverage solutions for the villa-level residential and office area.

Wireless Client: WS323 can provide wireless access function for PC and STB as the same as the wireless network card, to reduce the cable and enjoy the clean life.

Huawei WS322 WiFi Extender

One-click secure wireless connection by WPS

You just need to press WPS buttons on the device and WS323 to establish the secure wireless connection quickly.

Huawei WS322 WPS

Stylish, Compact ID design

Unimaginable compact body, saving space; Arc body, easily accessible; Clear indicator, easily learn its running state.

Huawei WS322 Stylish Design

High-speed Wireless Connection

Complies with 802.11n and support 2x2 MIMO, its wireless transmission rate can be up to 300Mbps, to meet multi-device access simultaneously.

Huawei WS322 High Speed

Eco-friendly

Not only meet the certification of CCC China, but also meet the strict secure and environmental requirements, like CE, FCC, RoHS.

Huawei WS322 Eco-Friendly

Wireless strength Intelligent Detection

When WS322 is working as wireless range extender, it can automatically detect the signal strength of wireless access point (AP), users can select the best installation location according to wireless strength light.

Huawei WS322 WiFi strength intelligent detection

Specification

Dimensions

Width 73mm
Depth 30.7mm
Without Plug
Height 73mm
Weight < 200g

Interface

One 10/100Mbps Ethernet RJ-45 port
Built-in power
100V AC240V AC

WLAN Feature

Protocol802.11 b/g/n
Speed
300Mbps
Antenna
2x2 internal antennas, support MIMO
Frequency
2.4GHz
Working modes
Wi-Fi Router/Repeater/Client

Buttons

Reset
WPS

LEDs

WLAN
WPS
ETH

Security

WEP(64/128), WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK certificate, TKIP, AES encryption, Wireless MAC address filtering

Functions

Route function
Bridging function
TR-069

System tools

Power specifications

100V AC240V AC

Power consumption

<5W

Environments

Operating Temperature: 0°C to 40°C
Relative humidity: 5% to 95% ,non-condensing



Huawei WiFi Repeaters

We carry the following Huawei WiFi Repeaters:

  • WS323
  • WS322
