Huawei Home Internet Gateways

WS880

Huawei WS880 Internet Gateway

Product Features

Specification

Dimensions

Width 270mm
Depth 34mm
Height 150mm
Weight About 790g

Interface

One 10/100/1000Mbps Ethernet RJ-45 uplink port
Four 10/100/1000Mbps Ethernet RJ-45 downlink ports

WLAN Feature

Protocols802.11ac & 802.11n
Antenna
11ac 3x3 MIMO & 11n 3x3 MIMO
Speed
1750Mbps (11ac 1300Mpbs+11n 450Mbps)
Frequency
2.4G & 5G concurrent

USB

1 USB 3.0

Buttons

Reset
WPS/WLAN
Power

LEDs

Power
Internet
WLAN
WPS
LAN
USB

Security

WEP,WPA/WPA2, WPA-PSK, WPA2-PSK
WPS
SPI, ACL, DMZ, DoS attack prevention
Built-in firewall
IP and MAC address binding against ARP attacks
IP address filtering
MAC address filtering

Functions

Route function
IP bandwidth control
WDS wireless birdging
Parent control
TR-069
IPv6

System tools

Huawei RuMate APP
Traffic statistics
System security log
Local Web management control

Power specifications

12V DC3A

Power consumption

<36W

Environments

Operating Temperature0°C to 40°C
Realtice humidity
5% to 95% ,non-condensing



WS151

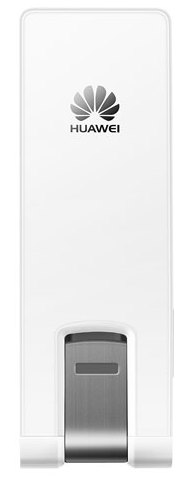

Huawei WS151 Ineternet Gateway

Product Features

Specification

Dimensions

Width 96.5mm
Depth 31mm
Height 12mm
Weight <= 50g

Interface

USB 2.0 (rotatable)
Wi-Fi 802.11ac

WLAN Feature

Protocols802.11accompatible with 802.11n/a/b/g
Speed
867Mbps(11ac modeor 300Mbps11n mode
Antenna2x2 internal antennassupport MIMO
Frequency
2.4GHz or 5GHz option

Buttons

WPS

LEDs

Status indicator

Security

WPA2-PSK [AES], WPA-PSK [TKIP], WEP

System

Win8/Win7/Vista/XP (32/64-bit)

Power consumption

<3.5W

Environments

Operating Temperature0°C to 40°C
Realtice humidity
5% to 95% ,non-condensing

WS325

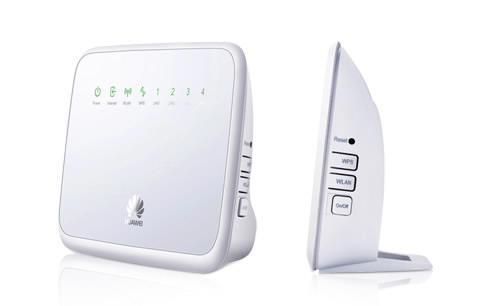

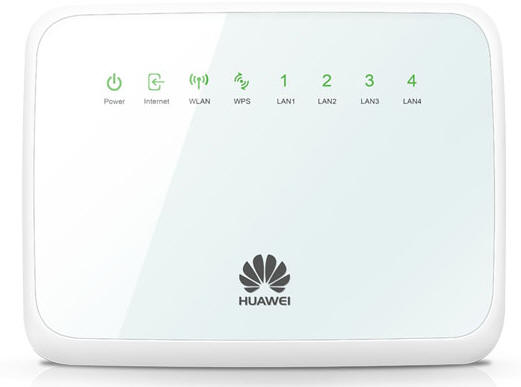

Huawei WS325 Internet Gateway

Product features

Brilliant ID design

The new-moon-like product covered by white-jade-like façade is shaped by nature and rekindles the yearning of human returning to the nature

Huawei WS325 Brilliant ID design

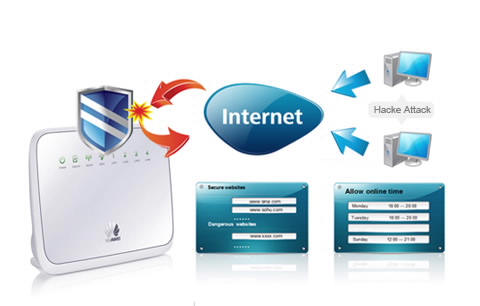

Built-in Firewall to ensure the Home network security

Built-in firewall and anti DOS attack protection effectively protect the home network security from hacker attack

Huawei WS325 Built-in Firewall

Energy-saving and Eco-friendly

Meets EU CoC V4 Tier2 and EU environmental standards:WEEE:2002/96/EC; RoHS:2002/95/EC; REACH:2006/1907/EC. Supports intelligent energy-saving mode.

Huawei WS325 Energy Saving

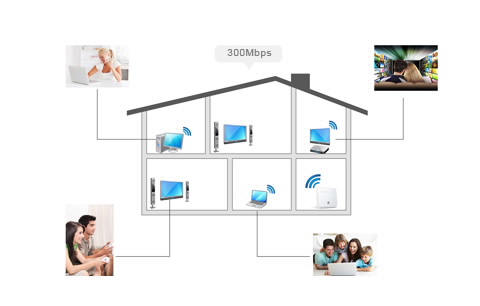

300Mbps high-speed wireless connection

Wi-Fi 802.11n supported with MIMO technology, which allows transmission rate to 300Mbps.

Huawei WS325 300Mbps High Speed

One-Click Wi-Fi connection by WPS

one-click Wi-Fi connection by WPS provides you with the simpliest user experience.

Huawei WS325 WPS

Choice of safety and stability

Super wide voltage operating range with assured quality of capability , 24/7 non-stop working to fulfill your needs and wants.

Huawei WS325 Choice of safty

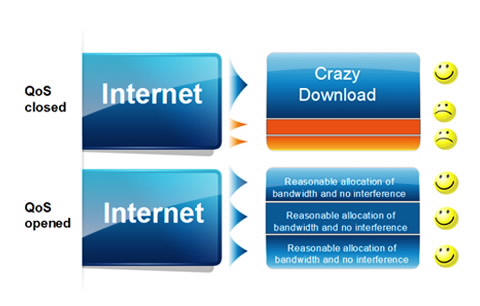

QOS --service quality guarantee

Support for QOS bandwidth control which allows various activities of data device among family members to happen in the same time without interference. Now you can play online game while your families are browsing website, watching movie online or playing video games.

Huawei WS325 QoS

Specification

Interface

One 10/100Mbps Ethernet RJ-45 uplink port
Four 10/100Mbps Ethernet RJ-45 downlink ports
Resolution:1280*720"

WLAN Feature

Protocol802.11 b/g/n
Speed
300Mbps
Antenna
2x2 Built-in antennaMIMO
Frequency
2.4GHz

Buttons

Reset
WPS button
WLAN switch
Power On/Of button

LEDs

Power
Internet
WLAN
WPS
LAN1-LAN4

Security

WLAN switch
WEP,WPA,WPA2, WPA-PSK, WPA2-PSK
WPS Quick Secure Setup
DoS attack prevention
Built-in firewall
IP and MAC address binding against ARP attacks
IP address filtering
MAC address filtering

Functions

Route function
IP bandwidth control
WDS wireless birdging
Parent control
TR-069
IPv6

System tools

Traffic statistics
System security log
Local Web management control

Power specifications

12V DC0.5A

Power consumption

<6W

Environments

Operating Temperature0°C to 40°C
Realtice humidity
5% to 95% ,non-condensing

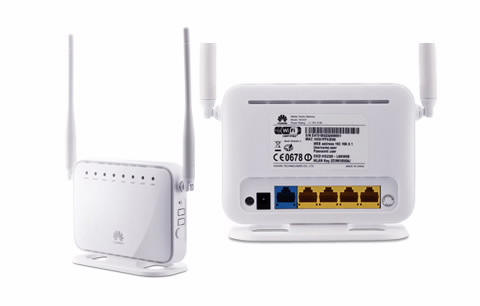

HG232f

Huawei HG232f Internet Gateway

Product features

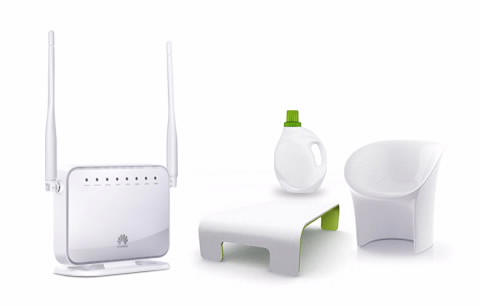

The simple, smart and elegant white design

Simple and elegant white tone cooperated with high light ornaments focusing on details, tenderness and classic.Pure white cooperates with the soft and tender etching textured surface creates the simple and elegant look.

Huawei HG232f WHite Design

Vertical standing and running track design

Vertical standing and the free expanded robotic antenna is completely refined than the traditional designs. It also has more intelligent visual appearance and more ultimate performance.
Running track designed outline simplifies control panel and makes it easy to use. Smart hidden vents designed to achieve dustproof.

Huawei HG232f vertical Standing

Powerful Performance

High-Speed: Supports Wi-Fi 802.11n, up to 300Mbps.
Extensive coverage: Supports external high-performance antenna and MIMO technology to provide a better wireless coverage.
Easy to use: Supports one-click Wi-Fi connection by WPS to provide the most user-friendly experience.

Huawei HG232f Powerful performance

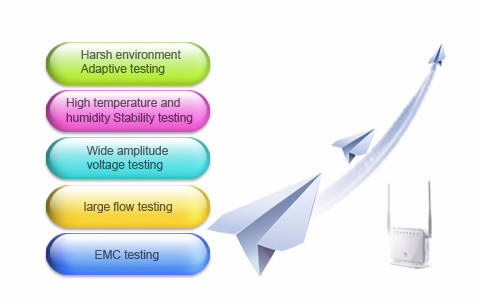

High quality, the reliable choice

Continuedly lead in adaptation test for harsh environment.
Continuedly lead in stability test for high temperature and humidity .
Continuedly lead in wide amplitude voltage test.
Continuedly lead in large flow pressure test.
Continuedly lead in EMC test.

Huawei HG232f reliable choice

Specification

Interface

One 10/100Mbps Ethernet RJ-45 uplink port
Four 10/100Mbps Ethernet RJ-45 downlink ports
Wi-Fi 802.11b/g/n

WLAN Feature

Protocols: 802.11n, 802.11b/g compatible
Speed: 300Mbps
Frequency: 2.4GHz

USB

VoIP

Buttons

Reset
WPS button
WLAN switch
Power On/Of button

 LEDs

Power
Internet
WLAN
WPS
LAN1-LAN4

Security

WLAN switch
64/128 bit WEP
WPA/WPA2, WPA-PSK, WPA2-PSK
WPS Quick Secure Setup

Functions

IP bandwidth control
WDS wireless birdging
Parent control
TR-069
IPv6

System tools

Power specifications

Power supply12V DC0.5A

Power consumption

<6W

Environments

Operating Temperature:0 to 40
Relative humidity: 5% to 95%, non-condensing

Home Internet Gateways

We carry the following models of Huawei home Internet gateways:

  • WS880
  • WS151
  • WS325
  • HG232f
