Chassis Slots
4

Fixed Slots (for Control Modules)
1

Open Slots (for Port Modules)
3

Max. Switching Capacity
576 Gbps

Max Packet Forwarding Rate
428.57M pps

10/100/1000 Base-T Ports:
144

SFP Slots
144

10-Gigabit Ethernet XFP Slots
24

Supported Modules
DGS-6600-48T
DGS-6600-48S
DGS-6600-DGS-6600-48TS
DGS-6600-48P
DGS-6600-8XG

CPU Engine
DGS-6600-CM

Cables and Connectors
EZ Grip Connectors
Gold Plated Connectors
24/20 Pin: Yes x1
CPU 4+4 Pin: Yes x1
CPU 8-Pin: Yes x1
SATA: 11
HDD: 8
FDD: 2
Cable Shielding

Ratings and Efficiencies
PFC: Active
Max. Power: 750W
AC Input Voltage: 90-264 Vac
AC Input Current: 10 (Maximum) Amps (ms)
AC Input Frequency: 47-63 Hz
Max Operating Temperature: 50 C
Tested Temperature: 25 C
Operating Temperature: 0 C to 50 C
Storage Temperature: -40 C to 85 C
Work Life at 25C: Over 100,000 hours
Work Efficiency: 88% when at 50% loading
Efficiency Certified: 80PLUS Silver
Fan Noise in db(A): <36 db(A)
DC Output Quality (AC Ripple and Noise): +/- 5% Max
Capacitor Quality: High Quality Japanese Brand Capacitors
Capacitor Temperature Rating: 105 C

Load Range
+12V-62A
+3.3V-24A
+5V-30A
+5Vsb-3A
-12V-0.8A

Protection
Total Power Protection (OPP)
Over Voltage Protection (OVP)
Over Current Protection (OCP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)

Safety Approval
FCC Part 15 Part 2
TUV
CLASS B
CUL (Level 6)
CB
UL
CE
C-Tick
RoHS

Includes
AC Power Cord

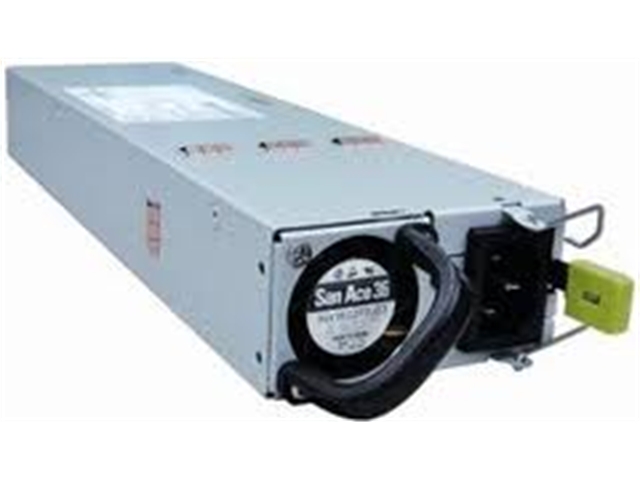

Power Supply Unit
User Manual

Item Dimension (L"xW"xH")
12.55 x 8.26 x 6.42

Weight
9.44 lb

Warranty Information
5 Year
