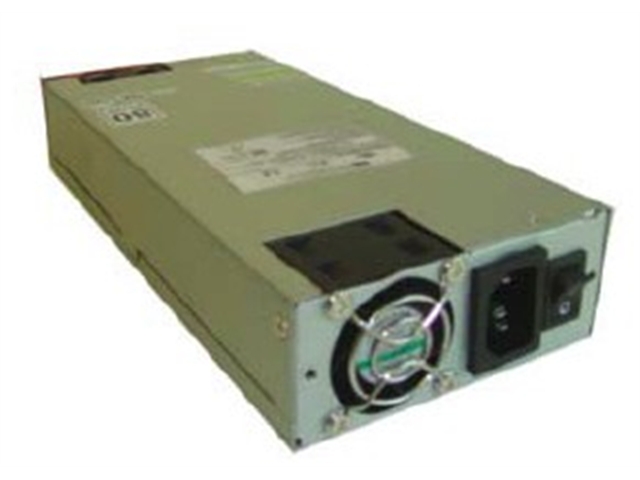

MPN: SPI4601UG-B204
Category: Power Supply >> ATX Power Supply
Vendor: Sparkle Power Inc.
Weight: 4 LB(S)
Price: US$ 101.95
Dielectric Withstand:
Primary frame ground 1800V AC for 1 second
Efficiency:typical > 85%
Rise time:Less than 20ms
Hold-up Time: 20ms minimum at nominal input voltage
Power Good Signal: Power on delay time 100 - 500ms, off delay 1ms minimum (TTL and CMOS compatible)
Leakage Current: Less than 3.5mA at 264Vac, 50Hz
MTBF: <00,000 hours on maximum load at +25C
Input Range: 90 - 264Vac, Full Range Input
Frequency:47 - 63Hz
Input Current: Max 8A at 115Vac, 4A at 230Vac
Inrush Current: No damage.
Output Voltage/Minimum Load/Normal Load/Maximum Load/Load Reg./Ripple and Noise
+3.3V/0.5A/10A/20A/+ or - 5%/50mV P-P
+5V/0.5A/10A/20A/+ or - 5%/50mV P-P
+12V1/1.0A/8A/16A/+ or - 5%/120mV P-P
+12V2/1.0A/8A/16A/+ or - 5%/120mV P-P
+12V3/1.0A/8A/16A/+ or - 5%/120mV P-P
+12V/0.0A/0.25A/0.5A/+ or - 10%/120mV P-P
+5Vsb/0.0A/1.25A/2.5A/+ or - 5%/50mV P-P
Item Dimension (L"xW"xH"):
8.7 x 3.9 x 1.6
Weight:
4.0 lb
Warranty Information
1 Year
