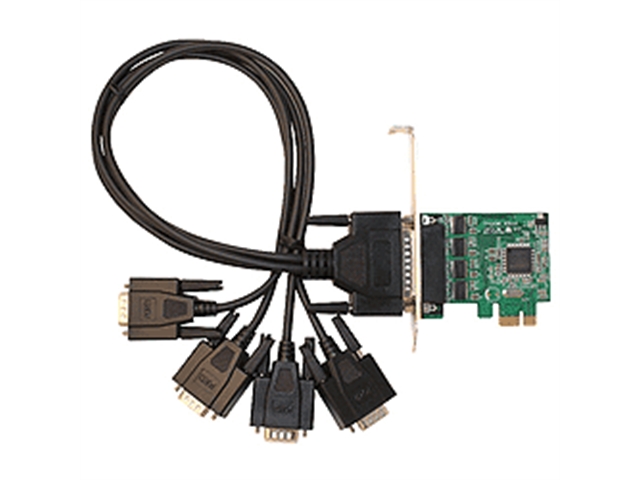

SIIG???s DP 4-Port Industrial RS-232 PCI Express Adapter Card is a high performance adapter card designed to instantly add four external RS-232 serial ports to your PCIe enabled desktop computer. Its RS-232 serial port interface delivers data transfer rates of up to 921.6Kb/s, with 15KVDC ESD serial interface protection for use in industrial environments. The DP 4-Port Industrial RS-232 PCI Express Adapter Card connects with DB-44 to 4-port DB9 fan-out cable and comes with a spare low-profile bracket allowing for installation in either standard height or low profile systems ensuring the utmost flexibility in system chassis installation.
The DP 4-Port Industrial RS-232 PCI Express Adapter Card is FCC and CE approved, and RoHS-compliant. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG???s limited lifetime warranty.
Features
???Supports Serial port data transmission rate up to 921.6Kb/s
???Built in 15KVDC ESD serial interface protection
???Built in 256 byte FIFO buffer
???Built in H/W, S/W data direction flow control
Interfaces/Ports:
1, DB44, Serial, Male
Fan-out cable: DB44 (Female) to 4, 9-pin, DB9 (Male)
Fan-out cable length: 19.5" (50 cm)
Product weight:
Board: 8 oz (227 gm)
Fan-out cable: 5 oz (135 g)
Certifications/Standards:
FCC, CE, RoHS
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
Requirements
Desktop PC with an available PCIe slot
Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / 2000 SP4
Package Contents
DP 4-Port Industrial RS-232 PCI Express Adapter Card
DB-44 to 4 port DB9 Cable
Software CD
Spare low profile bracket
Item Dimension (L"xW"xH"):1.93 x 5.43 x 8.54
Weight:0.93 lb
Warranty Information Life Time
