Form Factor

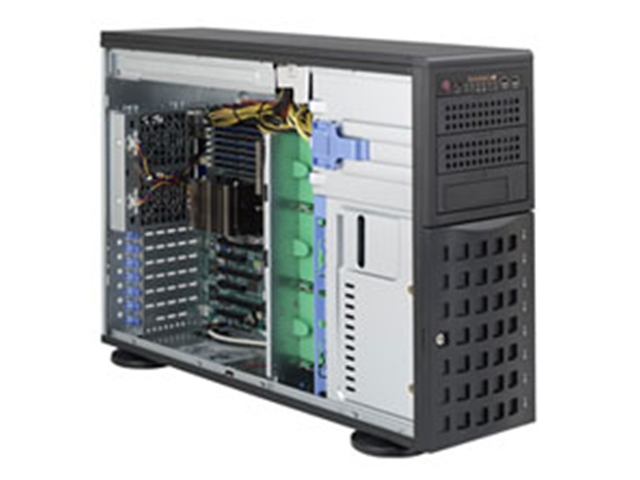

Tower / 4U chassis support for motherboard size
- 13.68" x 13" (34.7cm x 33cm), ATX, E-ATX

Processor Support
Supports dual, single Intel / AMD processors

Available Colors: Black

Expansion Slots : 7x PCI expansion slots

Drive Bays :
Hot-swap:
8x 3.5" Hot-swap SAS/SATA Drive Bays
SAS or enterprise SATA HDD only recommended
Peripheral Bay(s) :
2x 5.25" Peripheral Drive Bay
1x 5.25" Bay that fits 3.5" bay devices

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane with SES2

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power Fail LED
Ports :2x USB Ports

System Cooling
Fans
3x 5000 RPM Hot-swap PWM Cooling Fans
2x 5000 RPM Hot-swap Rear Exhaust PWM Fans

System Monitoring
Chassis intrusion switch

Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
4 Amp at +5V standby
75 Amp at +12V

With Power Distributor
+5V: 50 Amp
+3.3V: 30 Amp
-12V: 0.6 Amp

Certification
80PLUS Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC USA - UL listed, FCC
Canada - CUL listed
China - CCC Mark
Europe/CE Mark
EN 60950/IEC 60950-Compliant
Germany - TUV Certified

Item Dimension (L"xW"xH"):
17.5 x 7.5 x 26

Weight:
63.0 lb

Warranty Information
1 Year
