ST128HDMI2 | ActForNet

MPN: ST128HDMI2
Category: Accessories >> Video Card Accessories
Vendor: StarTech.com
Weight: 11.02 LB(S)
Price: US$ 449.56

-
+
Add to Quote
Quote Now

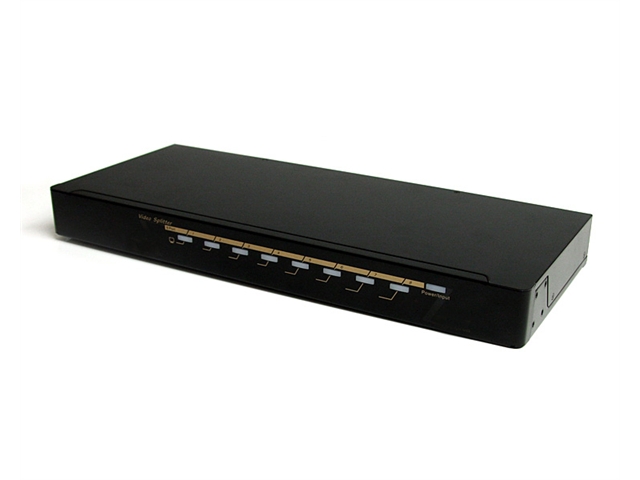

The ST128HDMI2 8-Port High Speed HDMI Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.



Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 16ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.



A perfect addition to virtually any application requiring the high quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video.

Cabling :HDMI

Carton Quantity:4

Color :Black

Daisy-Chain :Yes

Enclosure Type :Steel

Industry Standards :High Speed HDMI(1.3), HDCP, EDID

Power Consumption :10.2W

Rack-Mountable :Yes

LED Indicators :1 - Power (Green) / Input Signal (Blue)

LED Indicators :4 - Green Port signal indicator

Maximum Cable Length :16.4 ft (5 m)

Maximum Digital Resolutions :HDTV 1080p / PC 1920x1200

Supported Resolutions :
1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)

Wide Screen Supported :Yes

Number of Ports :8

Audio :Yes

Connector A :1 - 3.5 mm Mini-Jack (3 Position) Female

Connector A :1 - HDMI (19 pin) Female

Connector B :8 - 3.5 mm Mini-Jack (3 Position) Female

Connector B :8 - HDMI (19 pin) Female

Input Current :800mA

Output Voltage :12 DC

Output Current :1.5A

Power Adapter Included :Yes

Input Voltage :110 -240 AC

Power Adapter - DC Voltage :5 DC

Power Adapter - Amperage :2.6 Amp

Center Tip Polarity :Positive

Item Dimension (L"xW"xH"): 10.28 x 23.23 x 3.43

Weight: 11.02 lb

Warranty Information3 Years
